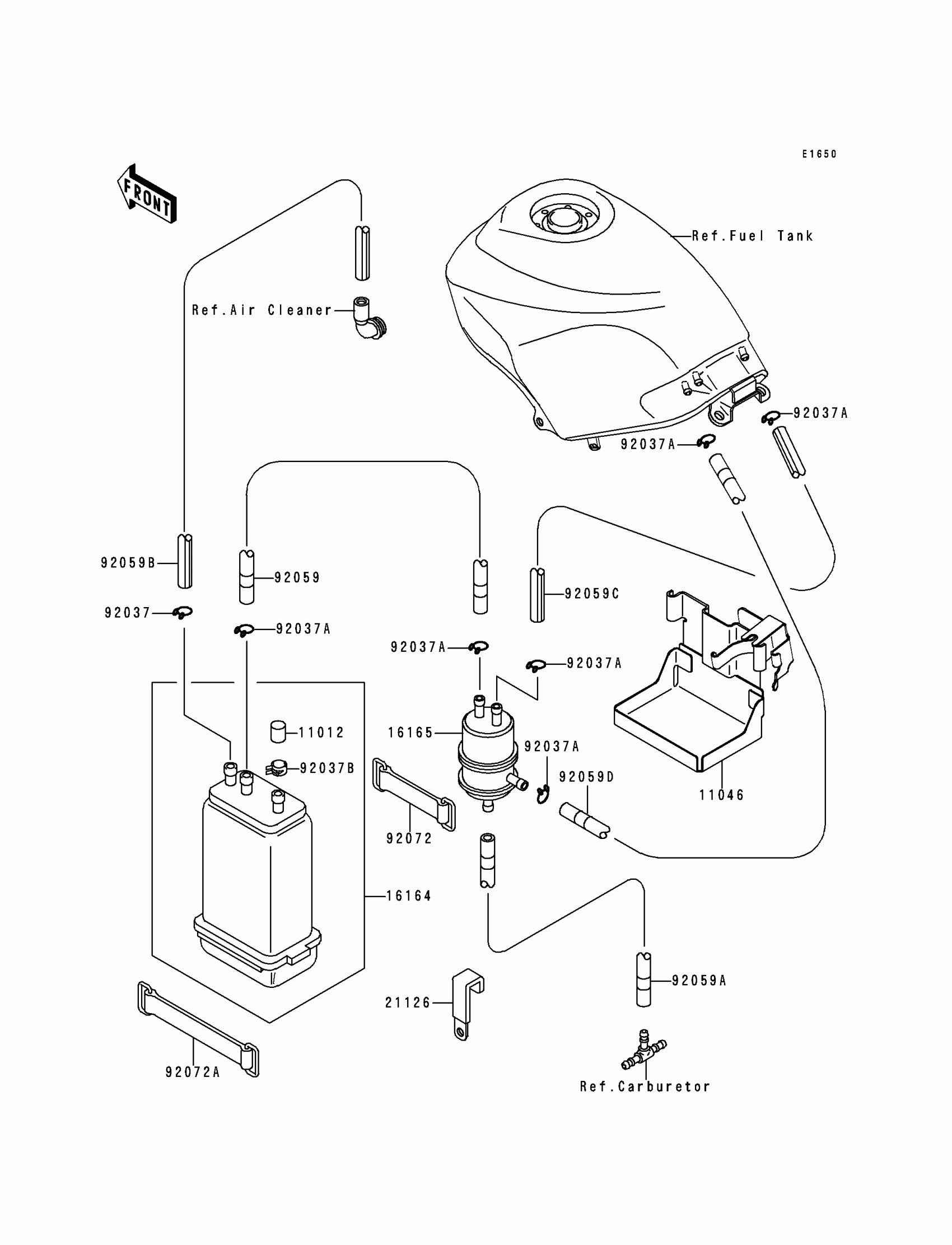

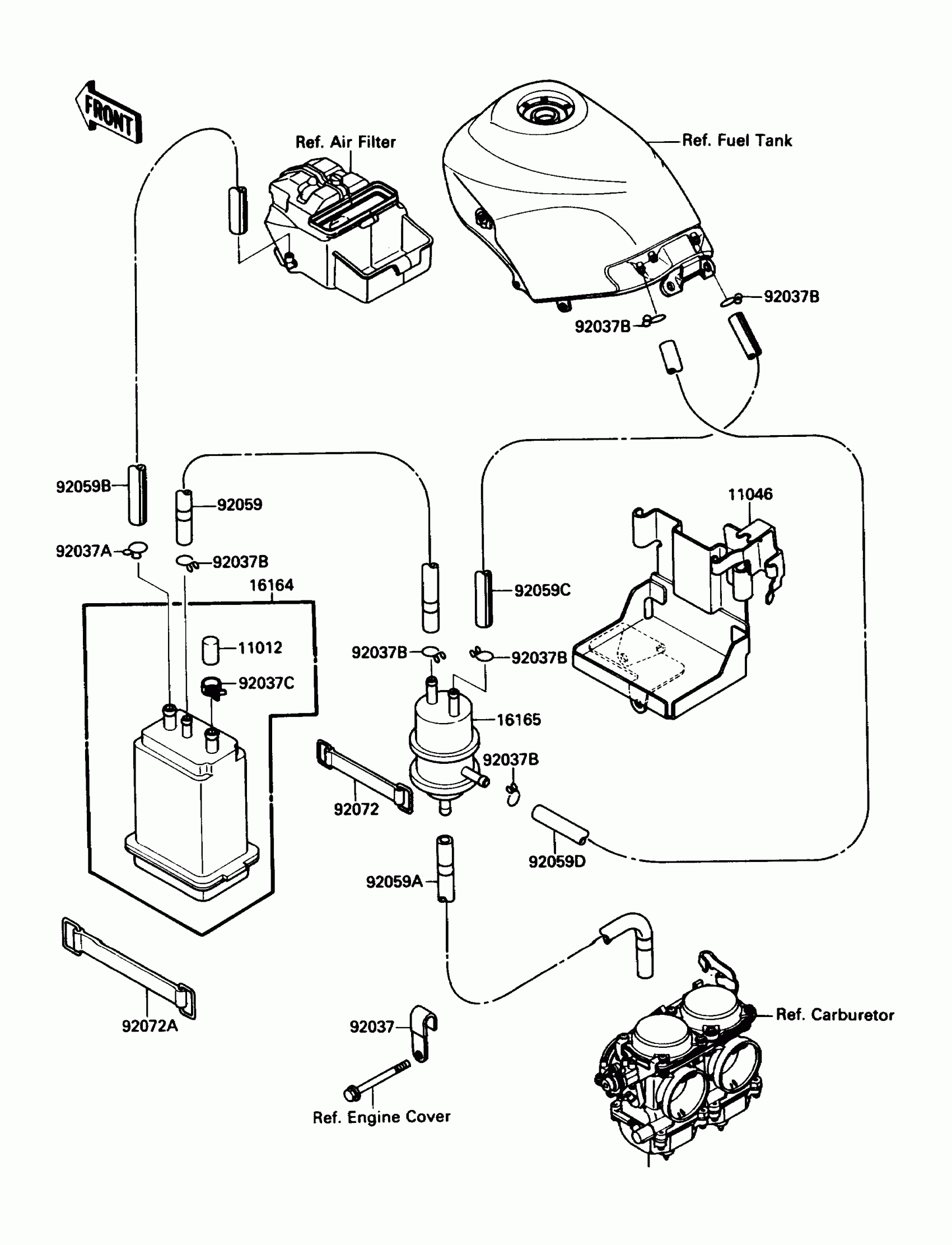

Kawasaki Ninja® 250R Fuel Evaporative System Diagram

Description

Price

11012

CAP,CANISTER

11012-1388

$8.31

11046

BRACKET,CANISTER

11046-1238

$61.19

16164

CANISTER

16164-1054

$132.79

16165

SEPARATOR

16165-1001

$81.73

92037

CLAMP,WIRING HARNESS

21126-008

$3.75

92037A

CLAMP-HOSE

92037-1104

$1.27

92037B

CLAMP,TUBE

92037-147

$5.84

92037C

CLAMP,CANISTER

92037-1512

$5.71

92059

TUBE,5X10X170,BLUE

92059-1496

Unavailable

92059A

TUBE,4X9X420,WHITE

92059-1568

$9.85

92059B

TUBE,7X12X830,GREEN

92059-1806

$24.39

92059C

TUBE,5X10X610,BLUE

92059-1808

$32.75

92059D

TUBE,5X10X640,RED

92059-1952

Unavailable

92072

BAND,L=50

92072-066

$12.72

92072A

BAND,L=150

92072-1188

$11.38
