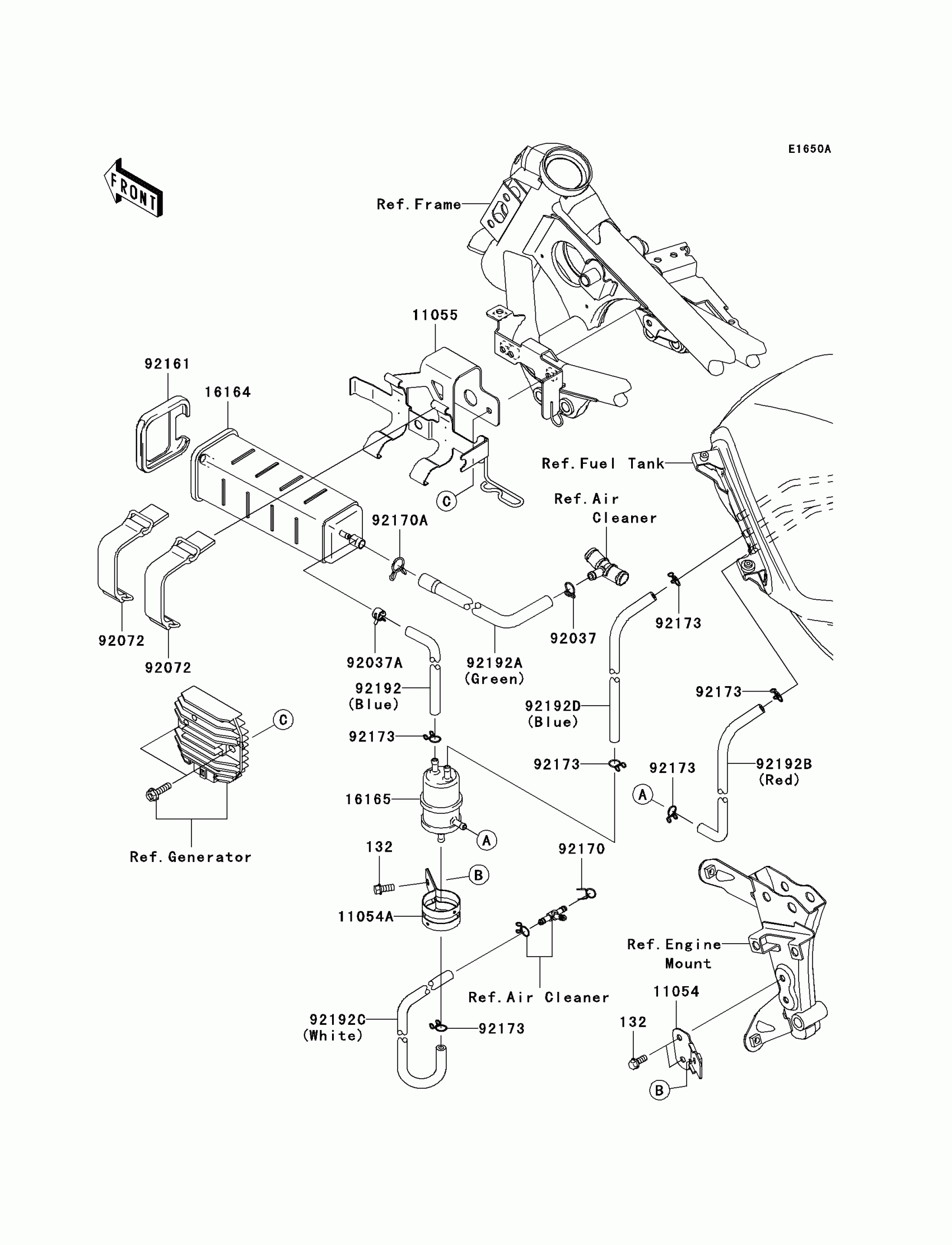

Kawasaki Ninja® 250R Fuel Evaporative System(J9F-JAFA) Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X14

132BA0614

$1.31

11054

BRACKET,SEPARATOR

11054-1559

$9.56

11054A

BRACKET

11054-1560

$12.97

11055

BRACKET,CANISTER

11055-1507

$51.06

16164

CANISTER

16164-0009

$140.36

16165

SEPARATOR

16165-1001

$81.73

92037

CLAMP-HOSE

92037-1104

$1.27

92037A

CLAMP

92037-1601

$12.32

92072

BAND,L=90

92072-0135

$14.20

92161

DAMPER

92161-0762

$9.10

92170

CLAMP

92170-1450

$5.76

92170A

CLAMP

92170-1695

$2.27

92173

CLAMP

92173-0050

$5.75

92192

TUBE,SEPARATOR-CANISTER,BLUE

92192-0464

$51.02

92192A

TUBE,CANISTER-FITTING,GREEN

92192-0465

$61.02

92192B

TUBE,SEPARATOR-TANK,RED

92192-0466

$59.47

92192C

TUBE,SEPARATOR-FITTING,WHITE

92192-0467

$15.56

92192D

TUBE,TANK-SEPARATOR,BLUE

92192-0813

$41.41
