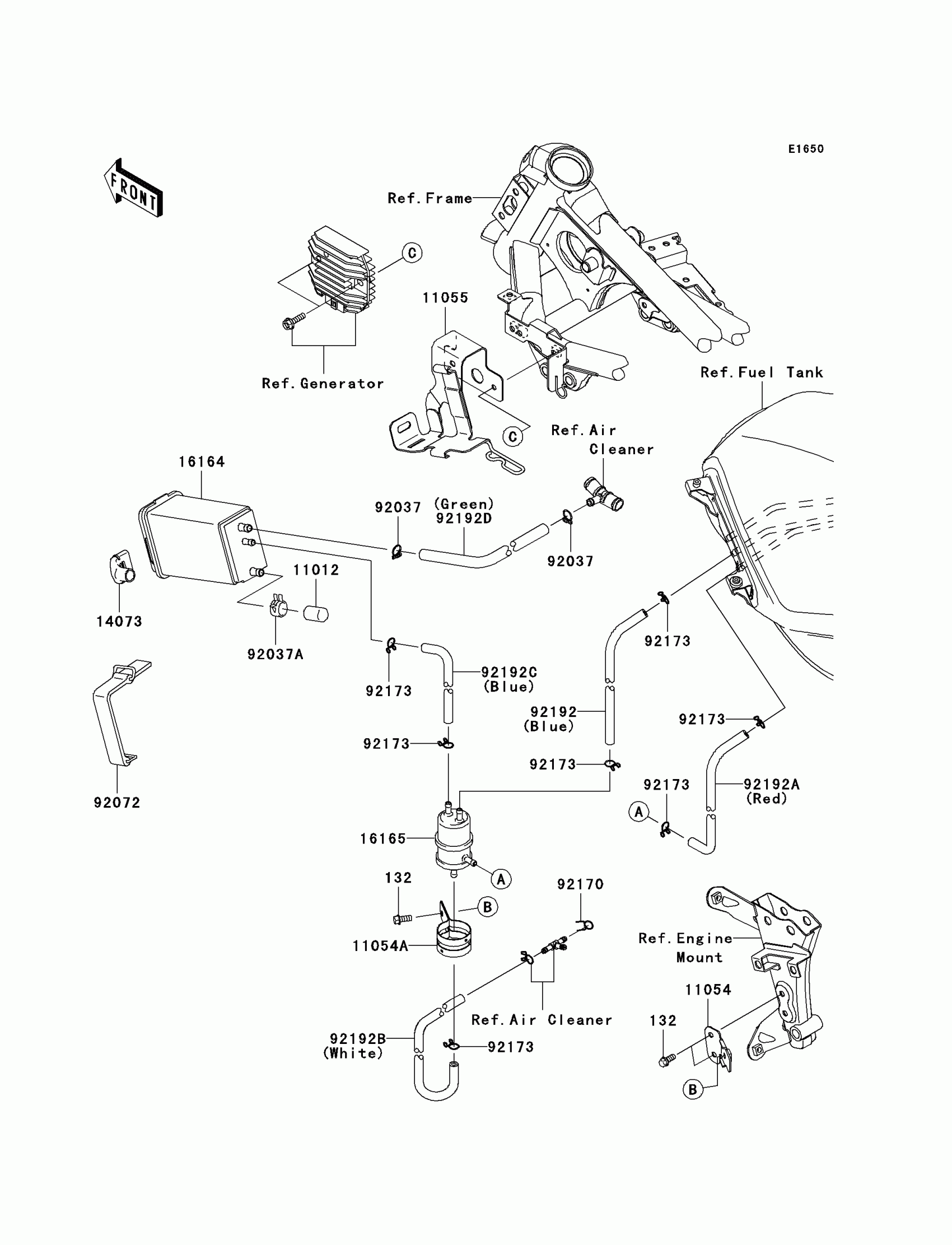

Kawasaki Ninja® 250R Fuel Evaporative System(J8F) Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X14

132BA0614

$1.31

11012

CAP,CANISTER

11012-1388

$8.31

11054

BRACKET,SEPARATOR

11054-1559

$9.56

11054A

BRACKET

11054-1560

$12.97

11055

BRACKET,CANISTER

11055-0881

$53.36

14073

DUCT,CANISTER

14073-1219

$19.29

16164

CANISTER

16164-1070

$148.49

16165

SEPARATOR

16165-1001

$81.73

92037

CLAMP-HOSE

92037-1104

$1.27

92037A

CLAMP,CANISTER

92037-1512

$5.71

92072

BAND,L=90

92072-0135

$14.20

92170

CLAMP

92170-1450

$5.76

92173

CLAMP

92173-0050

$5.75

92192

TUBE,TANK-SEPARATOR,BLUE

92192-0463

$42.71

92192A

TUBE,SEPARATOR-TANK,RED

92192-0466

$59.47

92192B

TUBE,SEPARATOR-FITTING,WHITE

92192-0467

$15.56

92192C

TUBE,SEPARATOR-CANISTER,BLUE

92192-0711

$38.16

92192D

TUBE,CANISTER-FITTING,GREEN

92192-0712

$57.63
