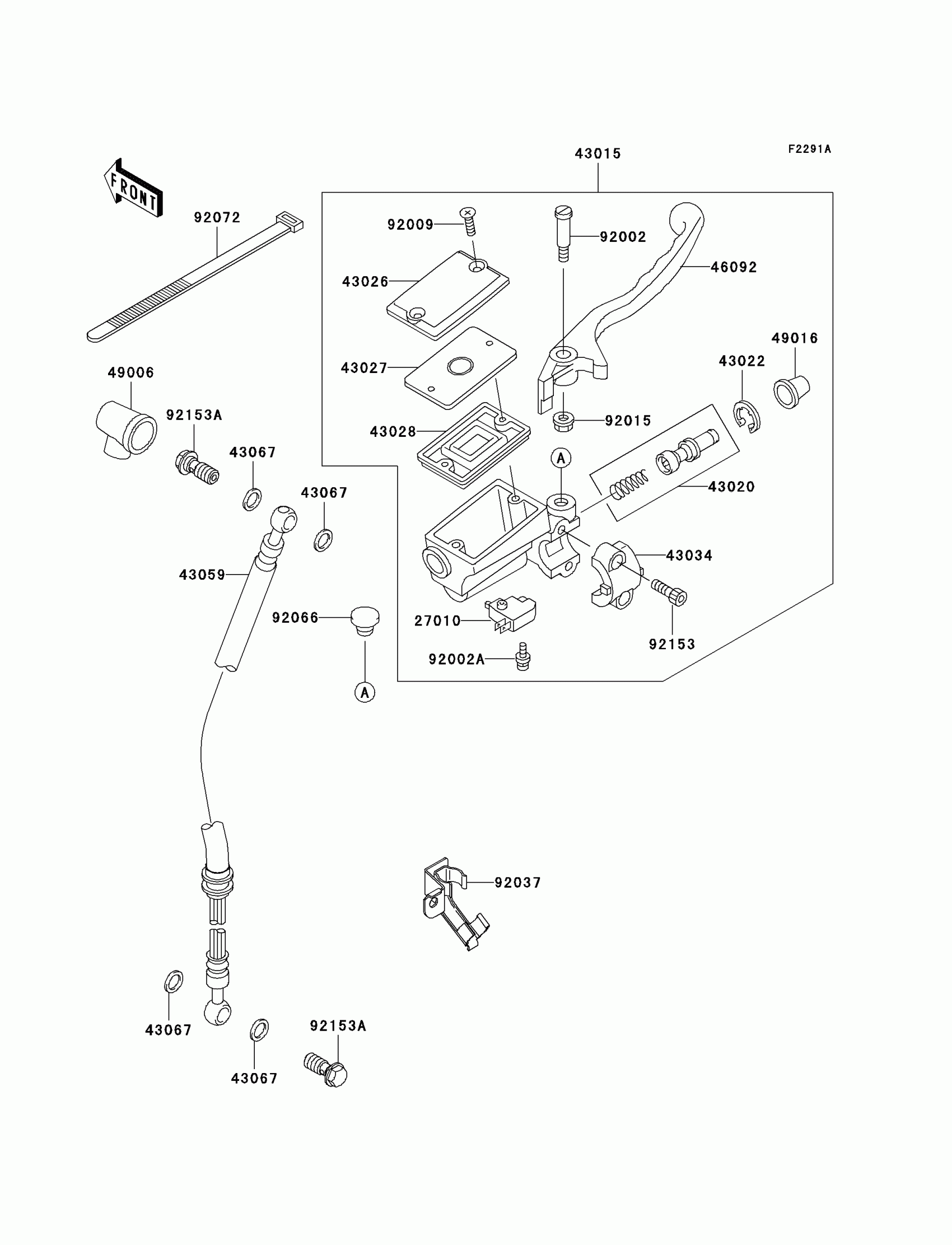

Kawasaki Ninja® 250R Front Master Cylinder(F19) Diagram

Description

Price

27010

SWITCH,BRAKE

27010-0025

$33.39

43015

CYLINDER-ASSY-MASTER,FR

43015-0037

$355.96

43020

PISTON-COMP-BRAKE

43020-1098

$52.23

43022

STOPPER-BRAKE,PISTON

43022-1010

$3.69

43026

CAP-BRAKE

43026-1076

$43.44

43027

PLATE-DIAPHRAGM

43027-1055

$7.68

43028

DIAPHRAGM,MASTER CYLINDER

43028-1058

$21.24

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1053

$36.55

43059

HOSE-BRAKE,FR

43059-1882

Unavailable

43067

WASHER,10.5X15X1.5

43067-001

$1.81

46092

LEVER-GRIP,FRONT BRAKE

46092-1117

$24.29

49006

BOOT,DUST

49006-1040

$9.11

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$6.90

92002

BOLT,LEVER SET,BLACK

92002-1322

$9.29

92002A

BOLT,SCREW,4X12

92002-1323

$3.12

92009

SCREW,4MM

92009-1458

$2.59

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$4.37

92037

CLAMP,HOSE

92037-1852

$15.88

92066

PLUG,9.5X8,POLYETHYLENE

92066-1077

$3.69

92072

BAND,L=365

92072-1197

$7.71

92153

BOLT,SOCKET,6X20

92153-0417

$7.54

92153A

BOLT,OIL,L=23

92153-0627

$4.35
