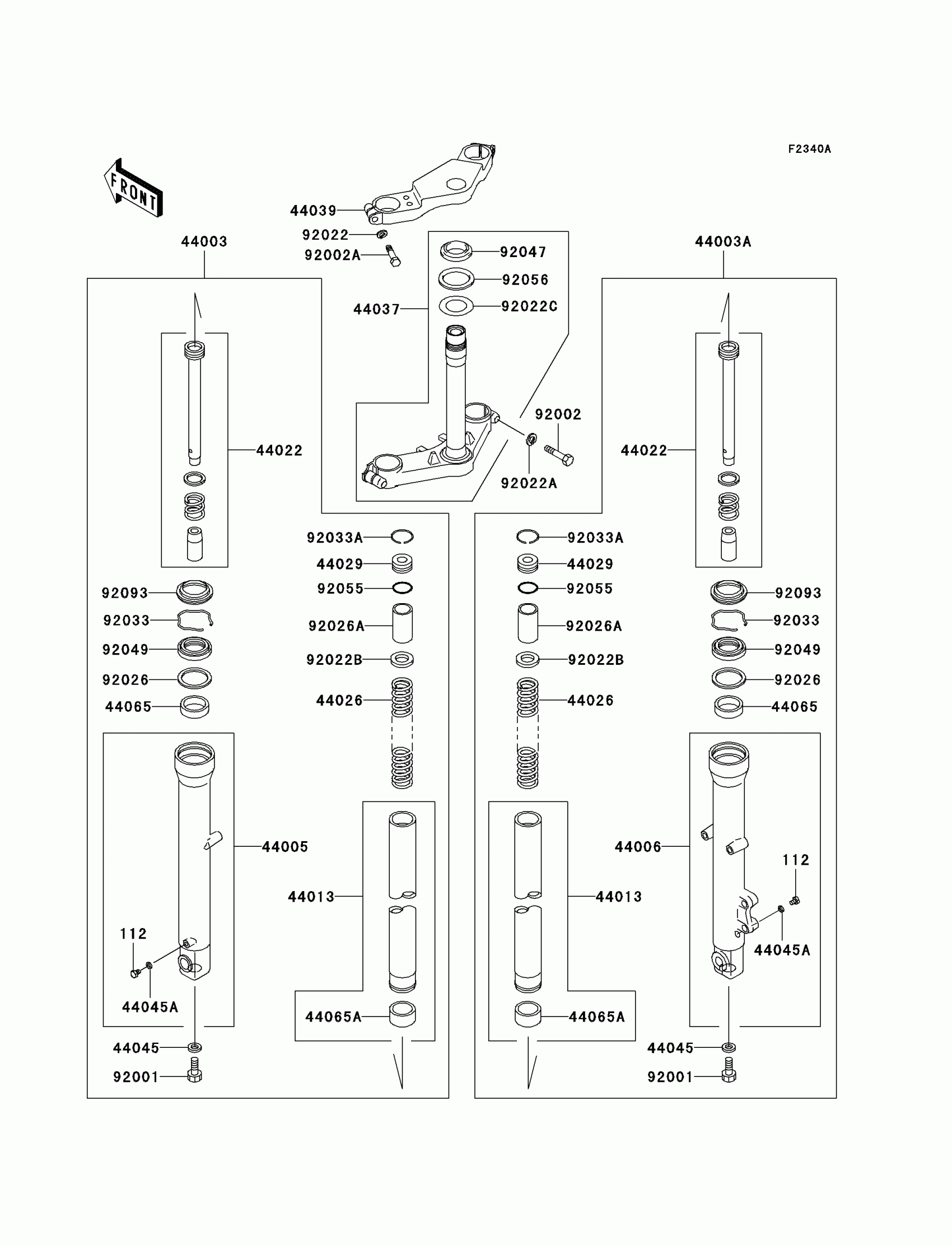

Kawasaki Ninja® 250R Front Fork(F7F) Diagram

#

Description
Price

112

BOLT-UPSET,6X8

112B0608

Unavailable

44003

DAMPER-ASSY,FORK,LH

44003-1790

$838.10

44003A

DAMPER-ASSY,FORK,RH

44003-1791

$838.10

44005

PIPE-LEFT FORK OUTER

44005-1258

$428.78

44006

PIPE-RIGHT FORK OUTER

44006-1255

$470.61

44013

PIPE-FORK INNER

44013-1273

$331.62

44022

CYLINDER-FORK

44022-1206

$112.66

44026

SPRING-FRONT FORK

44026-1362

$42.67

44029

SEAT-FORK SPRING

44029-1127

$45.01

44037

HOLDER-FORK UNDER

44037-1217

$393.79

44039

HOLDER-FORK UPPER

44039-1163

$286.09

44045

GASKET,FORK CYLINDER BOLT

44045-051

$4.88

44045A

GASKET,DRAIN PLUG

44045-052

$7.42

44065

BUSHING-FRONT FORK

44065-1068

$22.97

44065A

BUSHING-FRONT FORK

44065-1082

Unavailable

92001

BOLT,FORK CYLINDER

92001-1464

$4.93

92002

BOLT,10X32

92002-1811

$12.32

92002A

BOLT

92002-1959

$12.32

92022

WASHER,SPRING,8MM

92022-1552

$2.36

92022A

WASHER,SPRING,10MM

92022-1704

$3.14

92022B

WASHER

92022-1879

$4.42

92022C

WASHER,30.5X50X0.6

92022-231

$4.17

92026

SPACER,FORK

92026-1038

$9.88

92026A

SPACER

92026-1291

$9.53

92033

RING-SNAP,FORK

92033-1219

$5.01

92033A

RING-SNAP

92033-1236

$5.88

92047

RACE,STEERING STEM BEARING

92047-012

$14.20

92049

SEAL-OIL,FORK

92049-1226

$21.46

92055

RING-O,FORK SPRING SEAT

92055-1384

$3.97

92056

SEAL-OIL,STEERING STEM

92056-003

$7.04

92093

SEAL,FORK

92093-1196

$22.97
