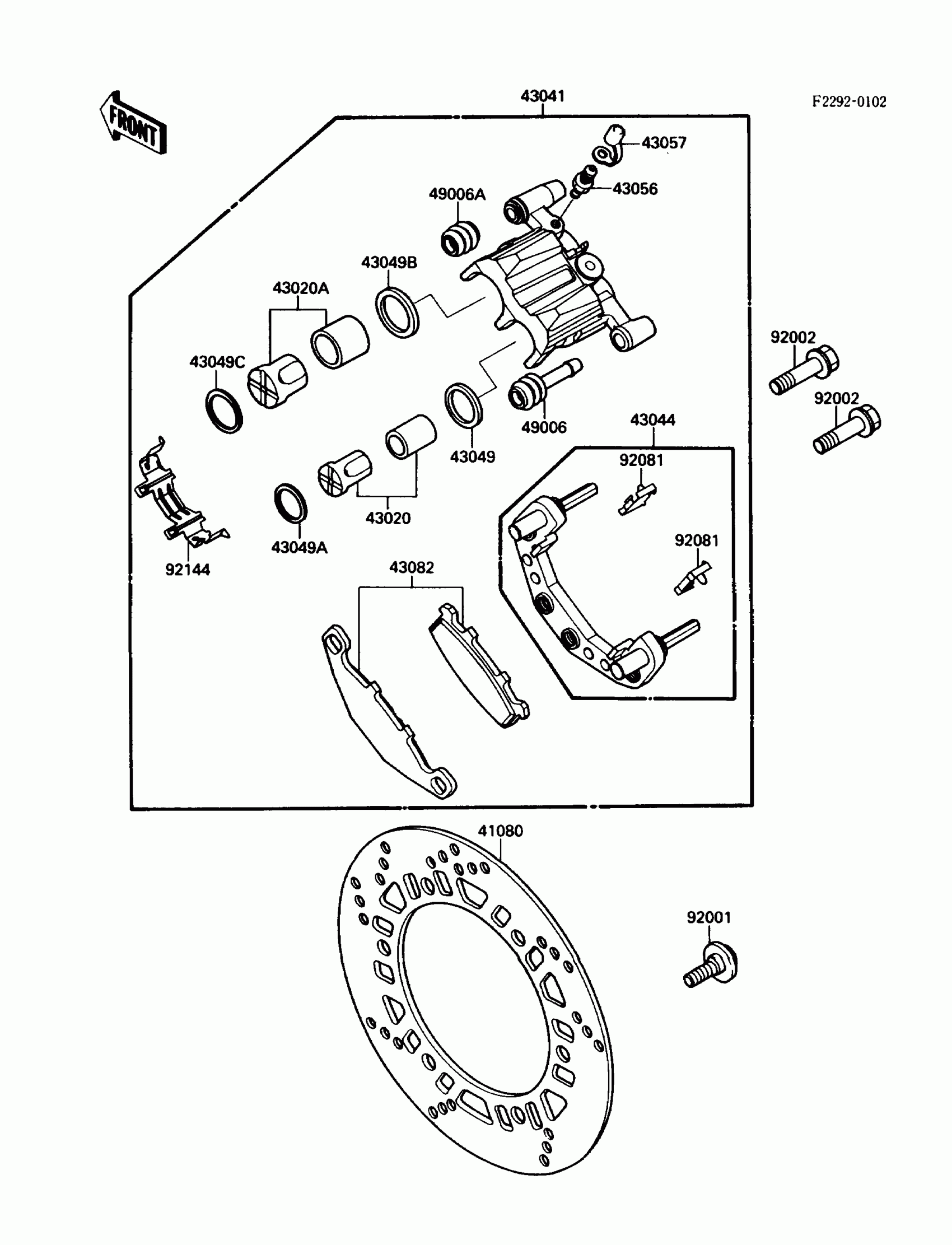

Kawasaki NINJA® 250R Front Brake(&NAMI.01647) Diagram

Description

Price

41080

DISC,FR

41080-1193

$471.02

43020

PISTON-COMP-BRAKE

43020-1068

$74.19

43020A

PISTON-COMP-BRAKE

43020-1069

$74.19

43041

CALIPER-ASSY,FR,RH

43041-1225

$606.68

43044

HOLDER-COMP-CALIPER

43044-1067

$162.04

43049

PACKING,PISTON SEAL

43049-1054

$9.84

43049A

PACKING,PISTON

43049-1055

$8.95

43049B

PACKING,PISTON SEAL

43049-1056

$10.38

43049C

PACKING,PISTON

43049-1057

$10.02

43056

BREATHER

43056-003

$22.74

43057

CAP-BREATHER

43057-003

$2.02

43082

PAD-ASSY-BRAKE

43082-1068

Unavailable

49006

BOOT,CALIPER

49006-1094

$9.69

49006A

BOOT,CALIPER

49006-1095

$5.78

92001

BOLT,DISC PLATE,8X30

92001-1951

$3.72

92002

BOLT,FLANGED,10X41

92002-1484

$6.51

92081

SPRING,PAD STOPPER

92081-1661

$9.60

92144

SPRING,PAD

92144-1070

$30.43
