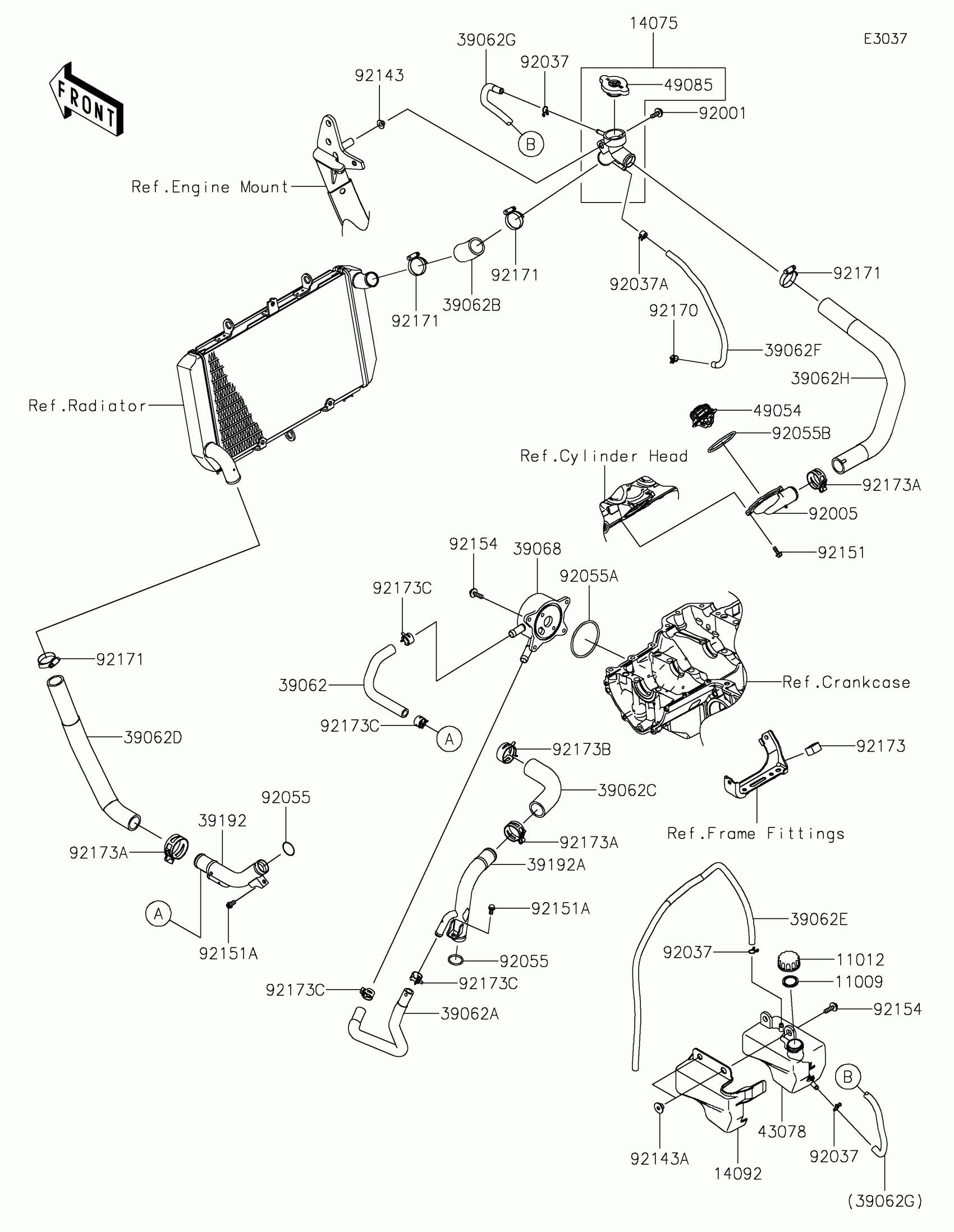

Find the part on the Water Pipe diagram for your 2025 Kawasaki Ninja 1100SX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Ninja 1100SX Water Pipe Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$1.25

In stock

11012

CAP

11012-1084

1

$1.31

In stock

14075

CAP-ASSY

14075-0028

1

$157.02

In stock

14092

COVER,RESERVOIR

14092-1098

1

$19.45

In stock

39062

1

$9.22

In stock

39062A

1

$35.46

In stock

39062B

1

$7.41

In stock

39062C

1

$17.32

In stock

39062D

1

$49.83

In stock

39062E

1

$22.81

In stock

39062F

1

$7.27

In stock

39062G

HOSE-COOLING,RETURN

39062-0920

1

$21.59

In stock

39062H

1

$68.41

In stock

39068

COOLER-ASSY-OIL

39068-0704

1

$697.00

In stock

39192

1

$43.96

In stock

39192A

1

$43.96

In stock

43078

RESERVOIR

43078-0566

1

$45.45

In stock

49054

THERMOSTAT

49054-0004

1

$53.21

In stock

49085

CAP-ASSY-PRESSURE

49085-1066

1

$33.98

In stock

92001

BOLT,6X18

92001-1342

1
Out of stock

92005

FITTING,THERMO CAP

92005-0842

1
Out of stock

92037

CLAMP,TUBE

92037-147

1

$5.84

In stock

92037A

CLAMP,TUBE

92037-1505

1

$3.78

In stock

92055

RING-O,20.8X2.4

92055-0114

1

$3.11

In stock

92055A

RING-O,63.3MM

92055-0739

1

$3.26

In stock

92055B

RING-O,53.5X2.6

92055-0831

1

$6.25

In stock

92143

COLLAR

92143-1057

1

$3.97

In stock

92143A

COLLAR

92143-1962

1

$4.42

In stock

92151

BOLT,5X14

92151-1764

1

$2.00

In stock

92151A

BOLT,6X12

92151-1997

1

$1.36

In stock

92154

BOLT,FLANGED,6X22

92154-0403

1

$2.68

In stock

92170

CLAMP

92170-1493

1

$3.97

In stock

92171

CLAMP

92171-0179

1

$6.51

In stock

92173

CLAMP,CLIP

92173-0127

1

$14.78

In stock

92173A

CLAMP,34MM

92173-1360

1

$3.16

In stock

92173B

CLAMP,35.5MM

92173-1432

1

$2.92

In stock

92173C

CLAMP

92173-1552

1

$1.47

In stock
