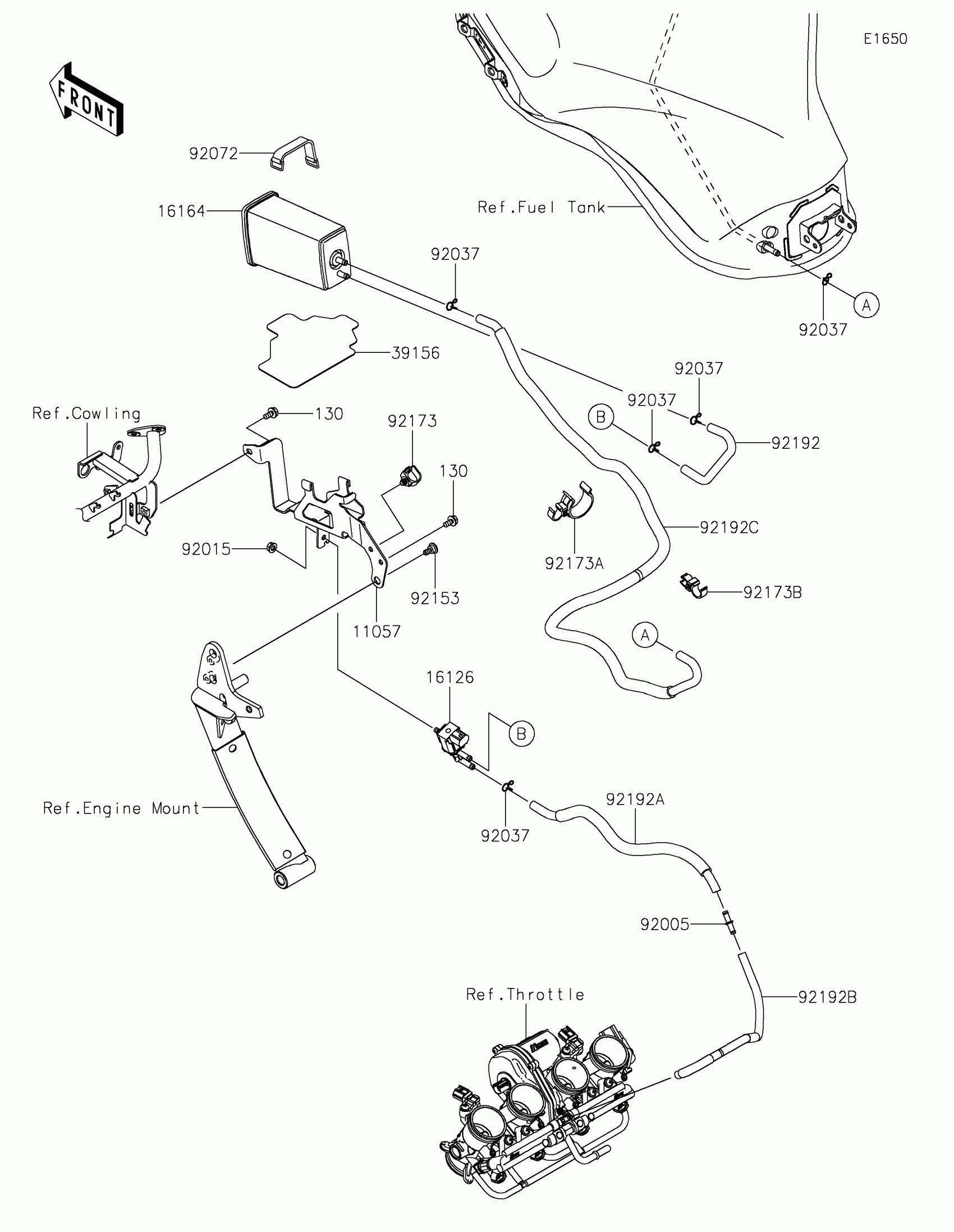

Kawasaki Ninja 1100SX SE Fuel Evaporative System Diagram

Description

Price

11057

BRACKET,CANISTER

11057-3981

$30.49

16126

VALVE,SOLENOID

16126-0705

$109.25

16164

CANISTER

16164-0012

$152.89

39156

PAD

39156-2141

$24.56

92005

FITTING

92005-0721

$8.85

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92037

CLAMP

92037-1712

$3.81

92072

BAND,TOOL,L=82

92072-1294

$14.14

92153

BOLT,SOCKET,6MM

92153-1956

$2.98

92173

CLAMP,HOLDER CLIP

92173-0868

$2.11

92173A

CLAMP

92173-1273

$5.25

92173B

CLAMP

92173-2720

$4.63

92192

TUBE,CANISTER-VALVE

92192-1715

$29.34

92192A

TUBE,VALVE-FITTING(THROTTLE)

92192-2348

$44.27

92192B

TUBE,THROTTLE-FITTING

92192-2712

$44.94

92192C

TUBE,TANK-CANISTER

92192-2713

$110.77

130

BOLT-FLANGED,6X12

130BA0612

$1.25
