2025 Kawasaki Ninja 1100SX Se Accessory Diagram

← All diagrams

Find the part on the Accessory diagram for your 2025 Kawasaki Ninja 1100SX Se, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

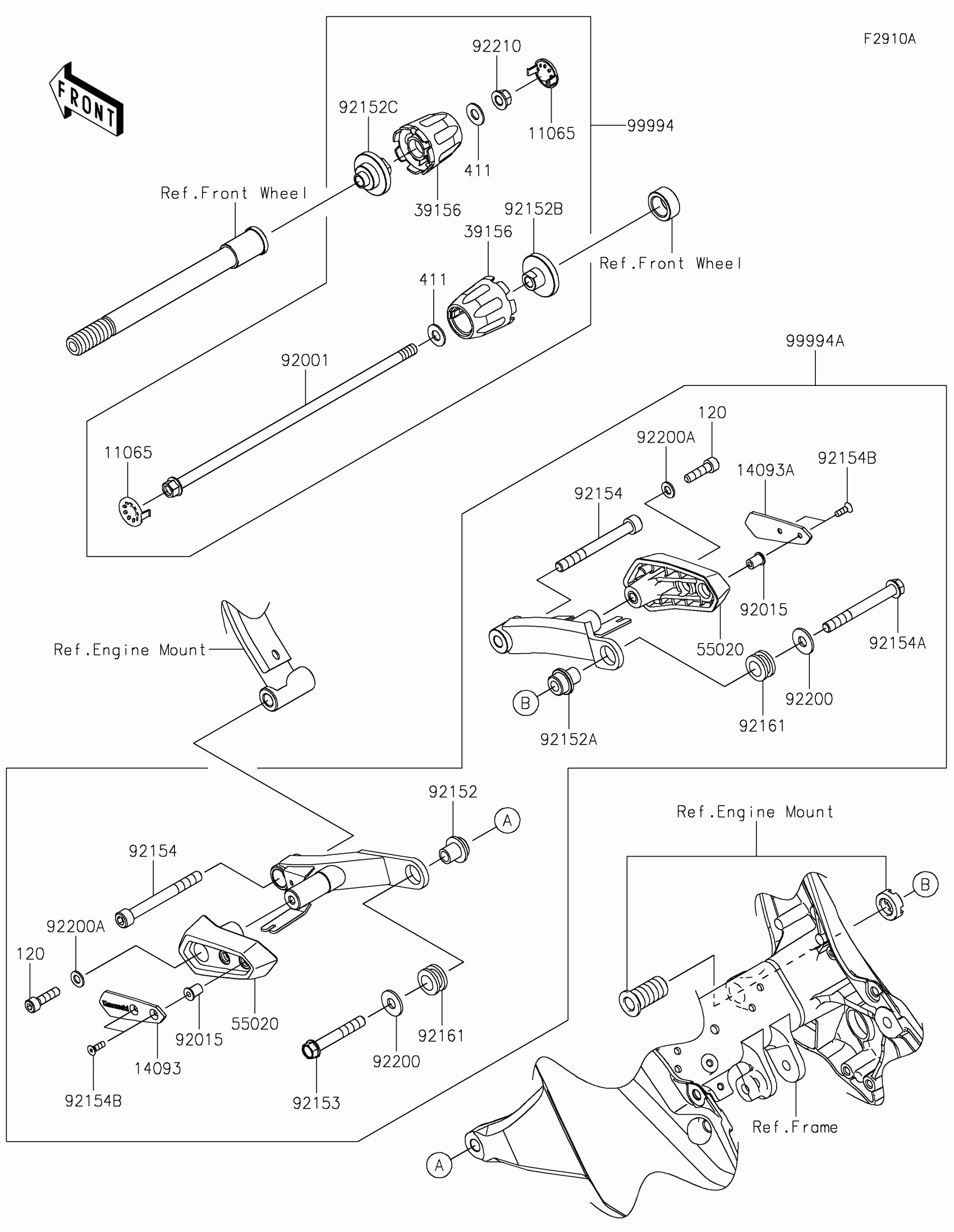

2025 Kawasaki Ninja 1100SX Se Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP,B.SILVER

11065-1313-54N

1
Out of stock

14093

COVER,SLIDER,LH

14093-0350

1
Out of stock

14093A

COVER,SLIDER,RH

14093-0351

1
Out of stock

39156

PAD,AXLE SLIDER

39156-2212

1
Out of stock

55020

GUARD

55020-1997

1
Out of stock

92001

BOLT,FLANGED,10X320,BLACK

92001-1624

1
Out of stock

92015

NUT,WELL,5MM

92015-1757

1
Out of stock

92152

COLLAR,RR,LH

92152-1519

1
Out of stock

92152A

COLLAR,RR,RH

92152-1520

1
Out of stock

92152B

COLLAR,LH,L=25.5

92152-2305

1
Out of stock

92152C

COLLAR,RH,L=34.1

92152-2307

1
Out of stock

92153

BOLT,FLANGED,10X65

92153-1931

1
Out of stock

92154

BOLT,SOCKET,10X95

92154-0447

1
Out of stock

92154A

BOLT,FLANGED,10X90

92154-0448

1
Out of stock

92154B

BOLT,SOCKET,5X16

92154-1014

1
Out of stock

92161

DAMPER,15.5X26X14.5

92161-1361

1
Out of stock

92200

WASHER,10.5X26X2.3

92200-0088

1
Out of stock

92200A

WASHER,8.4X16X1.6

92200-0807

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-1139

1
Out of stock

99994

KIT,FRONT AXLE SLIDER

99994-1276

1
Out of stock

99994A

FRAME SLIDER

99994-1411

1
Out of stock

120

BOLT-SOCKET,8X30

120CA0830

1
Out of stock

411

WASHER-PLAIN,10MM

411AA1000

1
Out of stock
