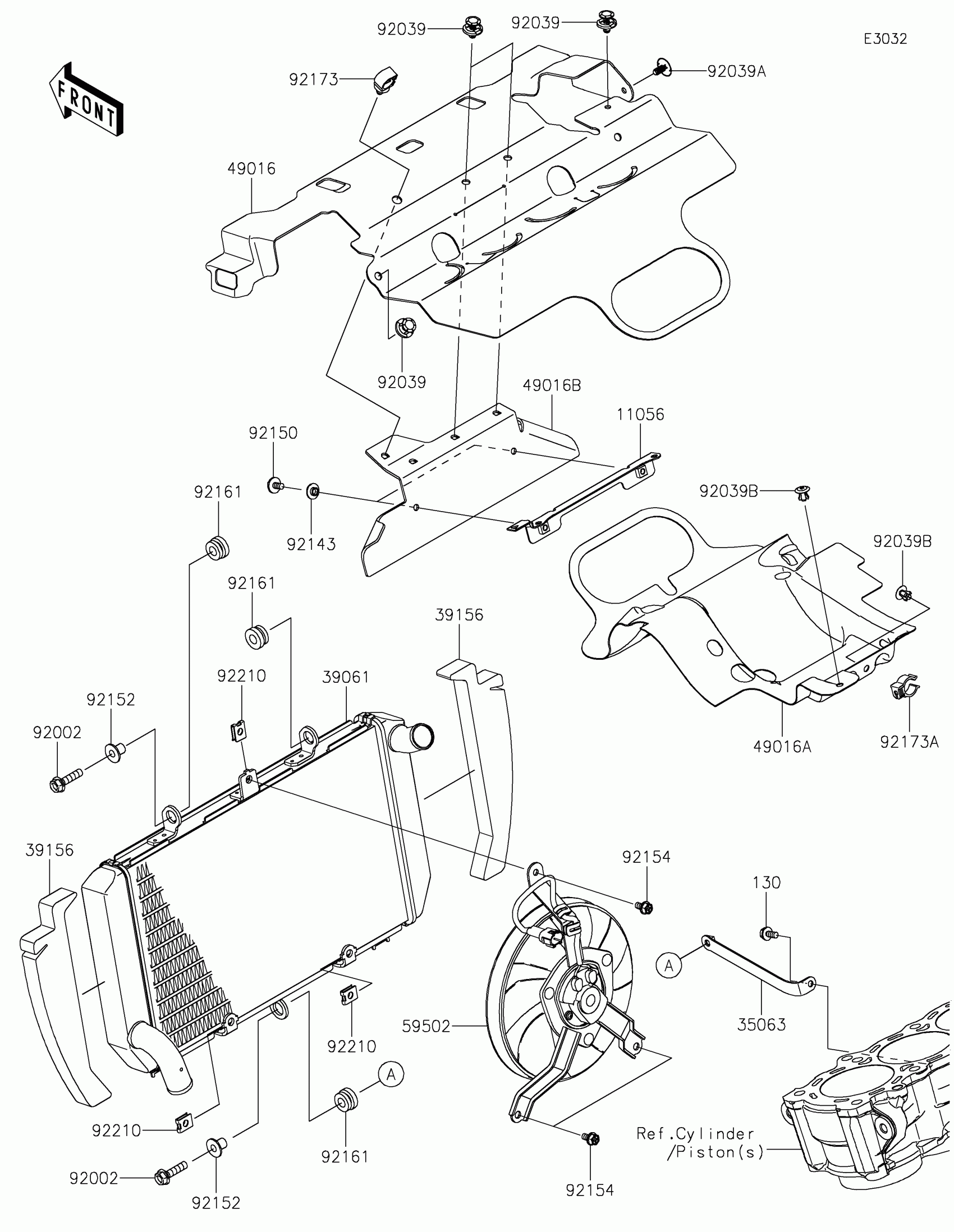

Find the part on the Radiator diagram for your 2025 Kawasaki Ninja 1100SX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Ninja 1100SX Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET

11056-0230

1

$10.22

In stock

35063

STAY

35063-0761

1

$5.88

In stock

39061

RADIATOR-ASSY

39061-0852

1

$847.72

In stock

39156

PAD,RADIATOR

39156-2522

1

$42.29

In stock

49016

COVER-SEAL

49016-0691

1

$67.99

In stock

49016A

COVER-SEAL

49016-0712

1

$51.19

In stock

49016B

COVER-SEAL

49016-0715

1

$21.78

In stock

59502

FAN-ASSY

59502-0647

1

$780.61

In stock

92002

BOLT,FLANGED,6X25

92002-1086

1

$4.37

In stock

92039

RIVET,HOLE 8MM

92039-0014

1

$2.64

In stock

92039A

RIVET

92039-0027

1

$3.51

In stock

92039B

RIVET

92039-0730

1

$2.05

In stock

92143

COLLAR

92143-1087

1

$3.11

In stock

92150

BOLT,6X12

92150-1891

1

$3.53

In stock

92152

COLLAR

92152-0667

1

$5.87

In stock

92154

BOLT

92154-1429

1

$3.75

In stock

92161

DAMPER

92161-2139

1

$2.20

In stock

92173

CLAMP,12MM DIA.

92173-0736

1

$4.01

In stock

92173A

CLAMP

92173-1240

1

$2.05

In stock

92210

NUT

92210-1323

1
Out of stock

130

BOLT-FLANGED,6X16

130CC0616

1

$1.66

In stock
