2025 Kawasaki Ninja 1100SX Engine Mount Diagram

← All diagrams

Find the part on the Engine Mount diagram for your 2025 Kawasaki Ninja 1100SX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

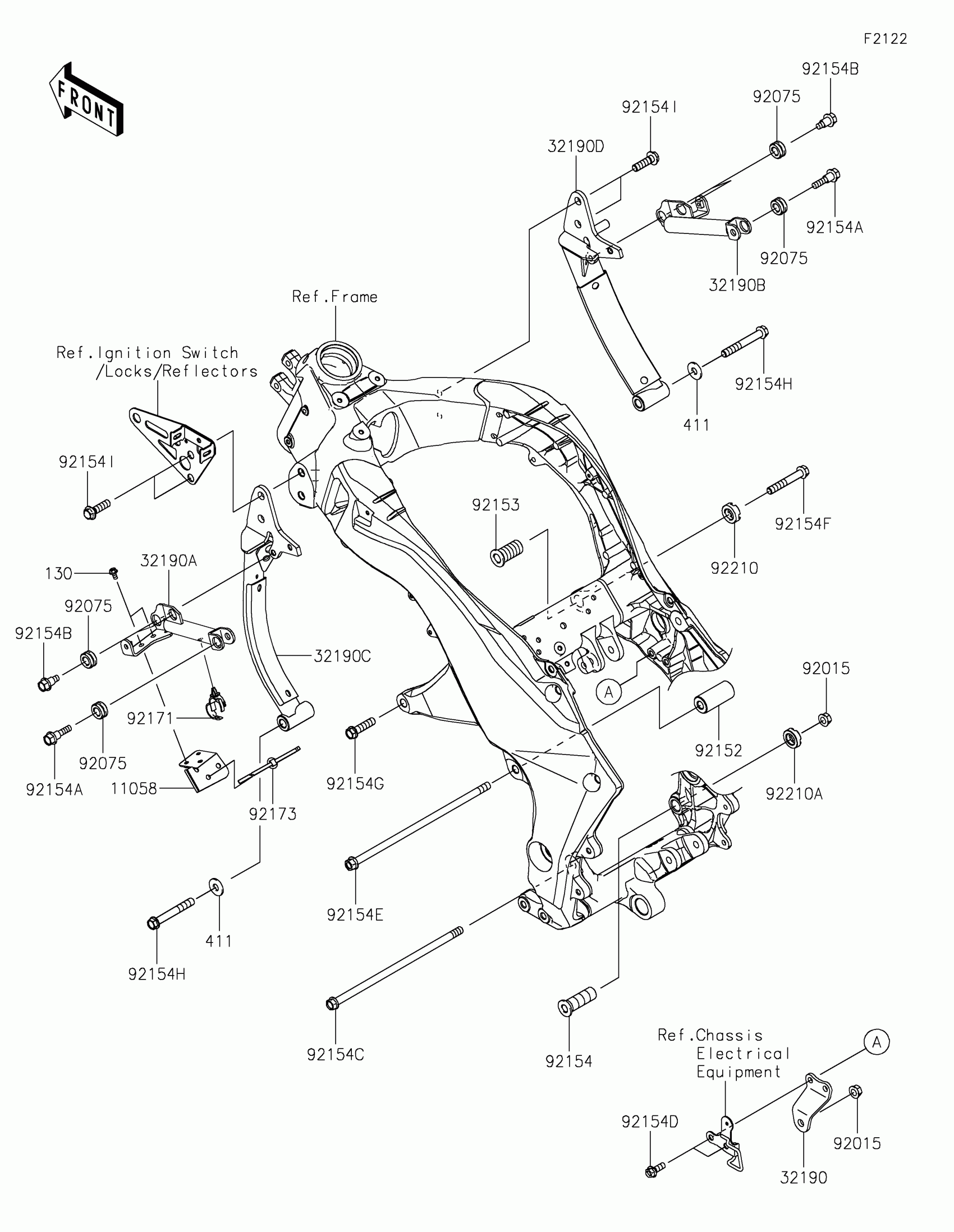

2025 Kawasaki Ninja 1100SX Engine Mount Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11058

1

$9.07

In stock

32190

1

$10.69

In stock

32190A

BRACKET-ENGINE,LH

32190-0582

1

$38.19

In stock

32190B

BRACKET-ENGINE,RH

32190-0583

1

$38.19

In stock

32190C

1

$164.07

In stock

32190D

1

$164.07

In stock

92015

NUT,FLANGED,10MM

92015-1180

1
Out of stock

92075

DAMPER

92075-1898

1

$3.72

In stock

92152

COLLAR,11X26X56.5

92152-0853

1

$14.78

In stock

92153

BOLT,SOCKET,20X43

92153-0488

1
Out of stock

92154

1

$29.09

In stock

92154A

BOLT,FLANGED,8X35

92154-0742

1

$10.22

In stock

92154B

BOLT,FLANGED,8X20

92154-0749

1

$9.68

In stock

92154C

BOLT,FLANGED,10X255

92154-0827

1

$23.26

In stock

92154D

BOLT,FLANGED,8X20

92154-1852

1

$2.15

In stock

92154E

BOLT,FLANGED,10X270

92154-2309

1

$29.09

In stock

92154F

BOLT,FLANGED,10X65

92154-2310

1

$7.47

In stock

92154G

BOLT,FLANGED,10X40

92154-2311

1

$4.92

In stock

92154H

BOLT,FLANGED,10X75

92154-2312

1

$12.95

In stock

92154I

BOLT,FLANGED,10X35

92154-7111

1

$4.90

In stock

92171

CLAMP,20MM DIA.

92171-0069

1

$2.29

In stock

92173

CLAMP

92173-0742

1

$7.29

In stock

92210

NUT,20MM

92210-0591

1
Out of stock

92210A

NUT,CASTLE,18MM

92210-1517

1
Out of stock

130

BOLT-FLANGED,5X10

130BB0510

1

$4.19

In stock

411

1

$3.68

In stock
