2025 Kawasaki Ninja 1100SX Accessory Diagram

← All diagrams

Find the part on the Accessory diagram for your 2025 Kawasaki Ninja 1100SX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

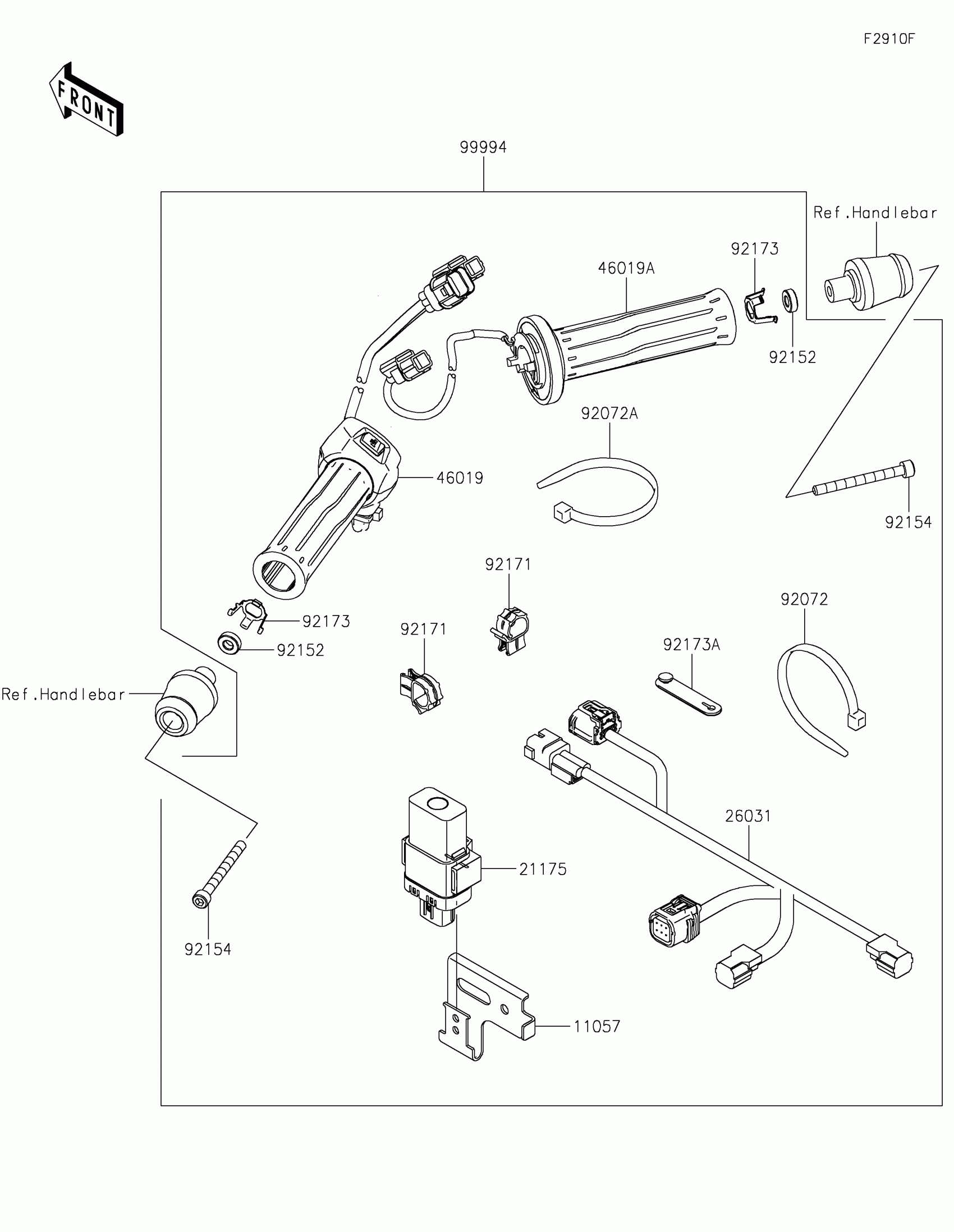

2025 Kawasaki Ninja 1100SX Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET

11057-2960

1
Out of stock

21175

CONTROL UNIT-ELECTRONIC,GH

21175-1329

1
Out of stock

26031

HARNESS,GRIP HEATER

26031-2722

1
Out of stock

46019

GRIP-ASSY,HEATER,LH

46019-0097

1
Out of stock

46019A

GRIP-ASSY,HEATER,RH

46019-0124

1
Out of stock

92072

BAND

92072-3851

1
Out of stock

92072A

BAND,L=152

92072-3874

1
Out of stock

92152

COLLAR

92152-3890

1
Out of stock

92154

BOLT,SOCKET,6X60

92154-7508

1
Out of stock

92171

CLAMP,EDGE CLIP

92171-1722

1
Out of stock

92173

CLAMP,WEIGHT

92173-1386

1
Out of stock

92173A

CLAMP

92173-2198

1
Out of stock

99994

GRIP HEATER

99994-2200

1
Out of stock
