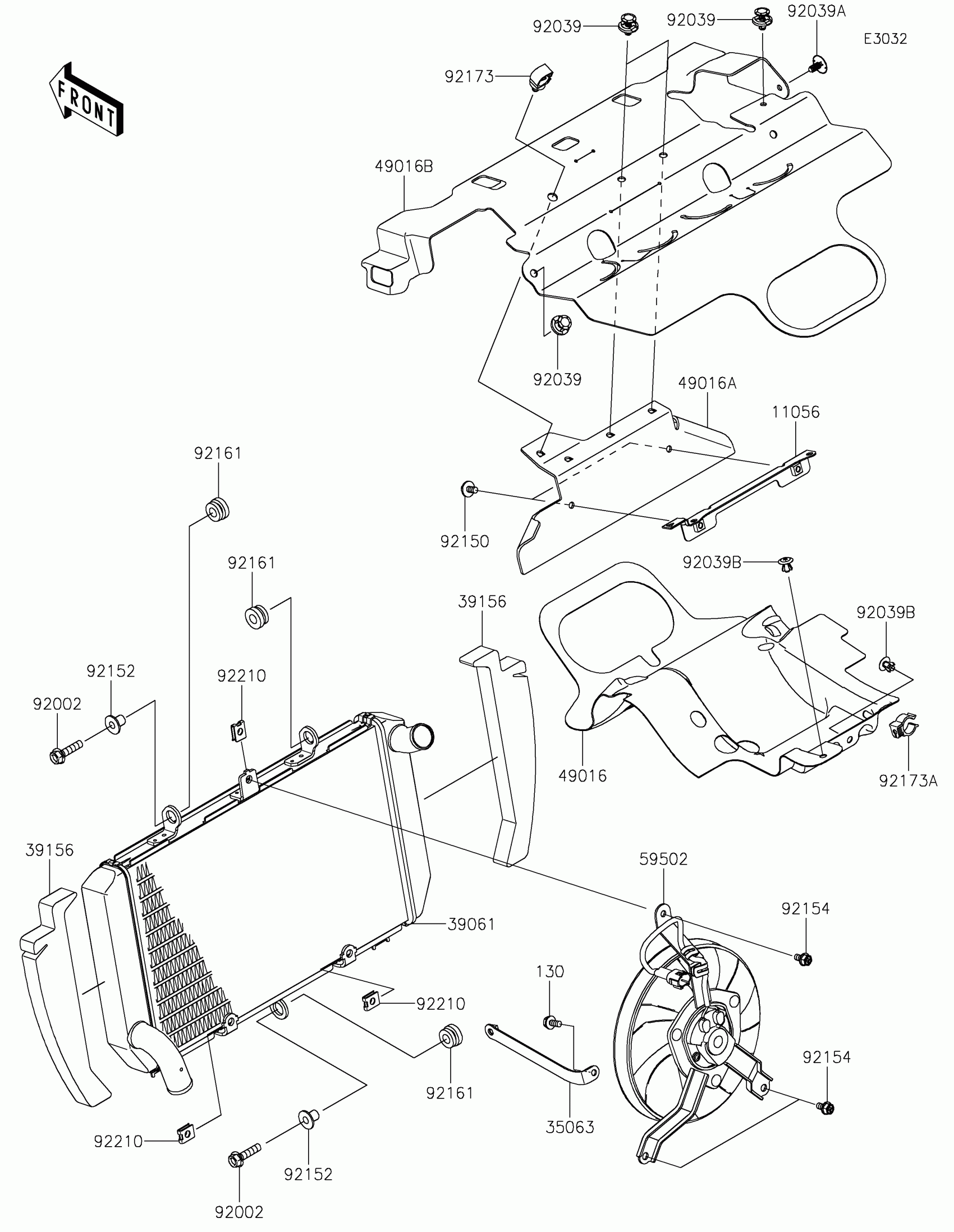

Kawasaki NINJA® 1000SX Radiator Diagram

Description

Price

11056

BRACKET

11056-0230

$10.22

130

BOLT-FLANGED,6X16

130CC0616

$1.43

35063

STAY

35063-0761

$5.07

39061

RADIATOR-ASSY

39061-0794

$847.72

39156

PAD

39156-0292

$2.68

39156A

PAD,RADIATOR

39156-2522

$42.29

49016

COVER-SEAL

49016-0615

$46.93

49016A

COVER-SEAL

49016-0687

$67.99

49016B

COVER-SEAL

49016-0688

$22.41

59502

FAN-ASSY

59502-0614

$810.90

92002

BOLT,FLANGED,6X25

92002-1086

$4.18

92039

RIVET,HOLE 8MM

92039-0014

$2.28

92039A

RIVET

92039-0027

$3.51

92039B

RIVET

92039-0730

$2.05

92150

BOLT,6X12

92150-1891

$3.53

92152

COLLAR

92152-0667

$5.63

92154

BOLT

92154-1429

$3.75

92161

DAMPER

92161-2139

$2.20

92173

CLAMP,12MM DIA.

92173-0736

$3.85

92173A

CLAMP

92173-1240

$2.05

92210

NUT

92210-1323

$3.19
