2021 Kawasaki Ninja® 1000SX Fuel Evaporative System Diagram

← All diagrams

Find the part on the Fuel Evaporative System diagram for your 2021 Kawasaki Ninja® 1000SX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

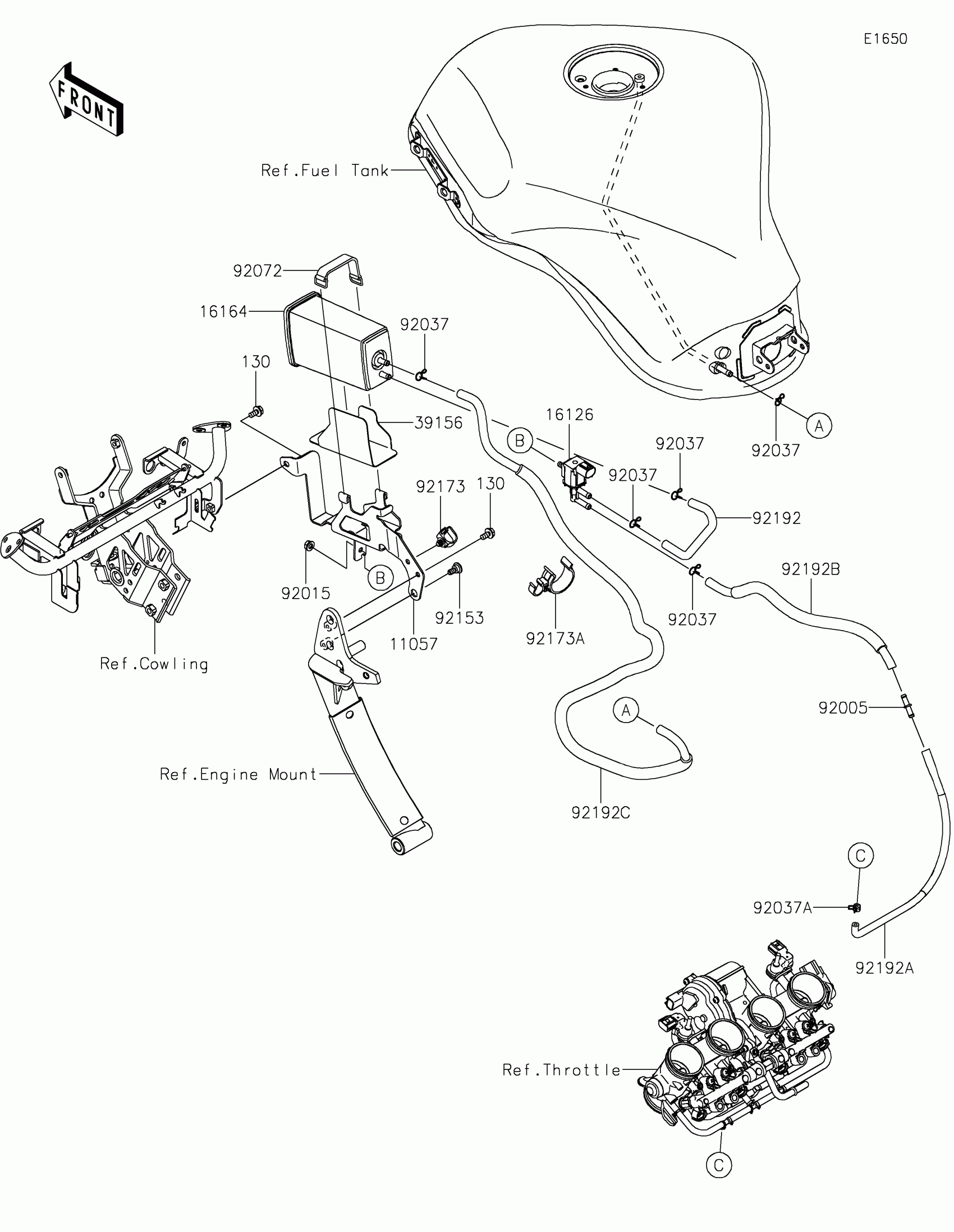

2021 Kawasaki Ninja® 1000SX Fuel Evaporative System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,CANISTER

11057-3981

1

$30.49

In stock

130

BOLT-FLANGED,6X12

130BA0612

1

$1.46

In stock

16126

VALVE,SOLENOID

16126-0705

1

$109.25

In stock

16164

CANISTER

16164-0012

1

$152.89

In stock

39156

PAD

39156-2141

1

$24.56

In stock

92005

FITTING

92005-0721

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1

$2.93

In stock

92037

CLAMP

92037-1712

1

$3.97

In stock

92037A

CLAMP,7.8MM

92037-2116

1

$1.24

In stock

92072

BAND,TOOL,L=82

92072-1294

1

$14.14

In stock

92153

BOLT,SOCKET,6MM

92153-1956

1

$3.11

In stock

92173

CLAMP,HOLDER CLIP

92173-0868

1

$2.44

In stock

92173A

CLAMP

92173-1273

1

$5.25

In stock

92192

TUBE,CANISTER-VALVE

92192-1715

1
Out of stock

92192A

1

$52.36

In stock

92192B

1

$44.27

In stock

92192C

TUBE,TANK-CANISTER

92192-2420

1

$105.73

In stock
