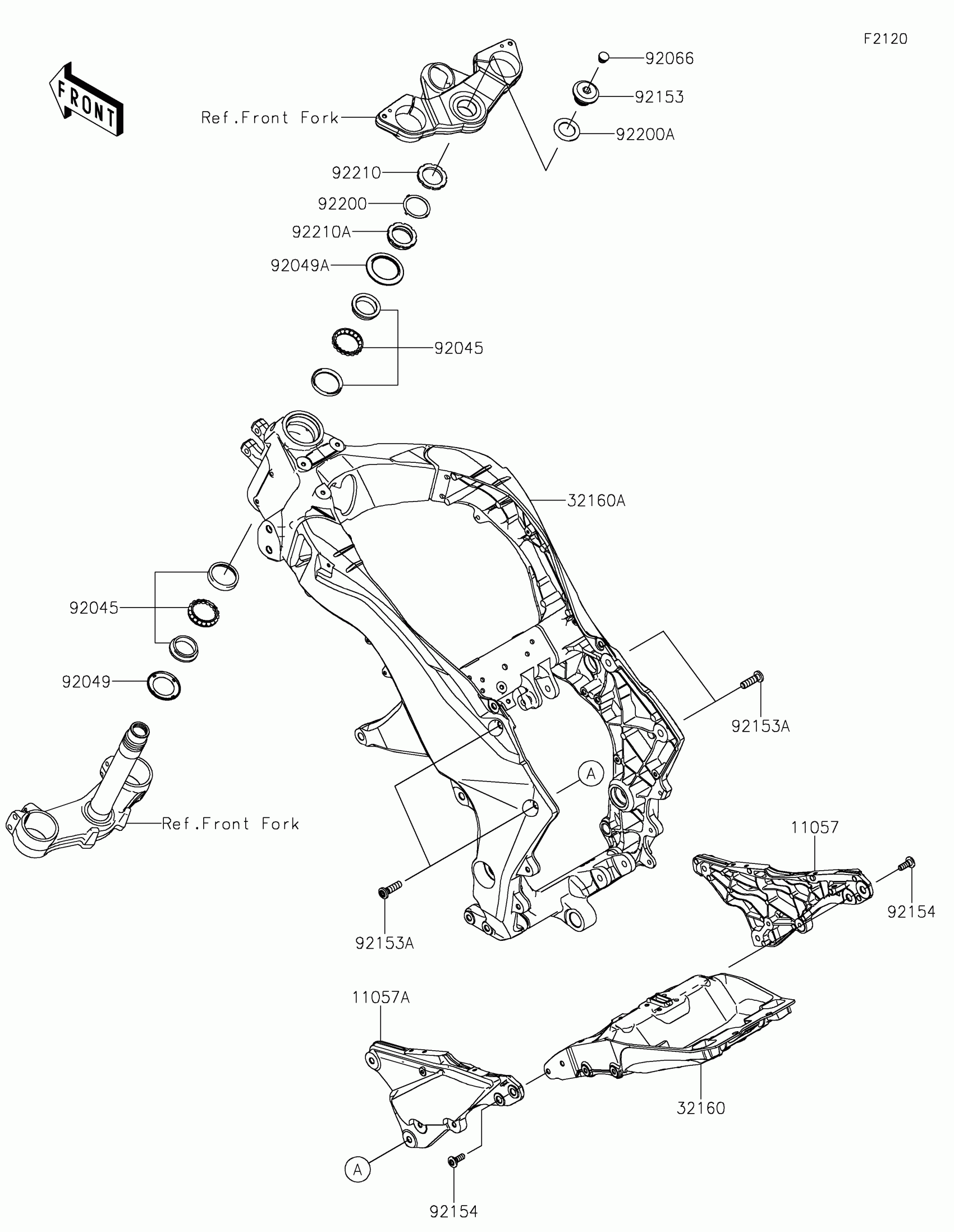

Kawasaki NINJA® 1000SX Frame Diagram

Description

Price

11057

BRACKET,RR,RH,F.S.BLACK

11057-0807-18R

$282.85

11057A

BRACKET,RR,LH,F.S.BLACK

11057-2955-18R

$313.41

32160

FRAME-COMP,RR

32160-1864

$720.31

32160A

FRAME-COMP,MAIN,F.S.BLACK

32160-1874-18R

$1,989.56

92045

BEARING-BALL,SF07A17PX1V1

92045-1384

$40.52

92049

SEAL-OIL,DS35X55X4

92049-0022

$13.12

92049A

SEAL-OIL,43X55.5X8.6

92049-0742

$16.78

92066

PLUG

92066-0071

$2.31

92153

BOLT,26MM

92153-0474

$29.32

92153A

BOLT,SOCKET,10X35

92153-1442

$7.15

92154

BOLT,SOCKET,8X23

92154-0379

$3.15

92200

WASHER

92200-0036

$3.81

92200A

WASHER,27X42X2.3

92200-0081

$2.84

92210

NUT,35MM

92210-0095

$13.77

92210A

NUT,35MM

92210-0823

$22.83
