2020 Kawasaki Ninja® 1000SX Accessory Diagram

← All diagrams

Find the part on the Accessory diagram for your 2020 Kawasaki Ninja® 1000SX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

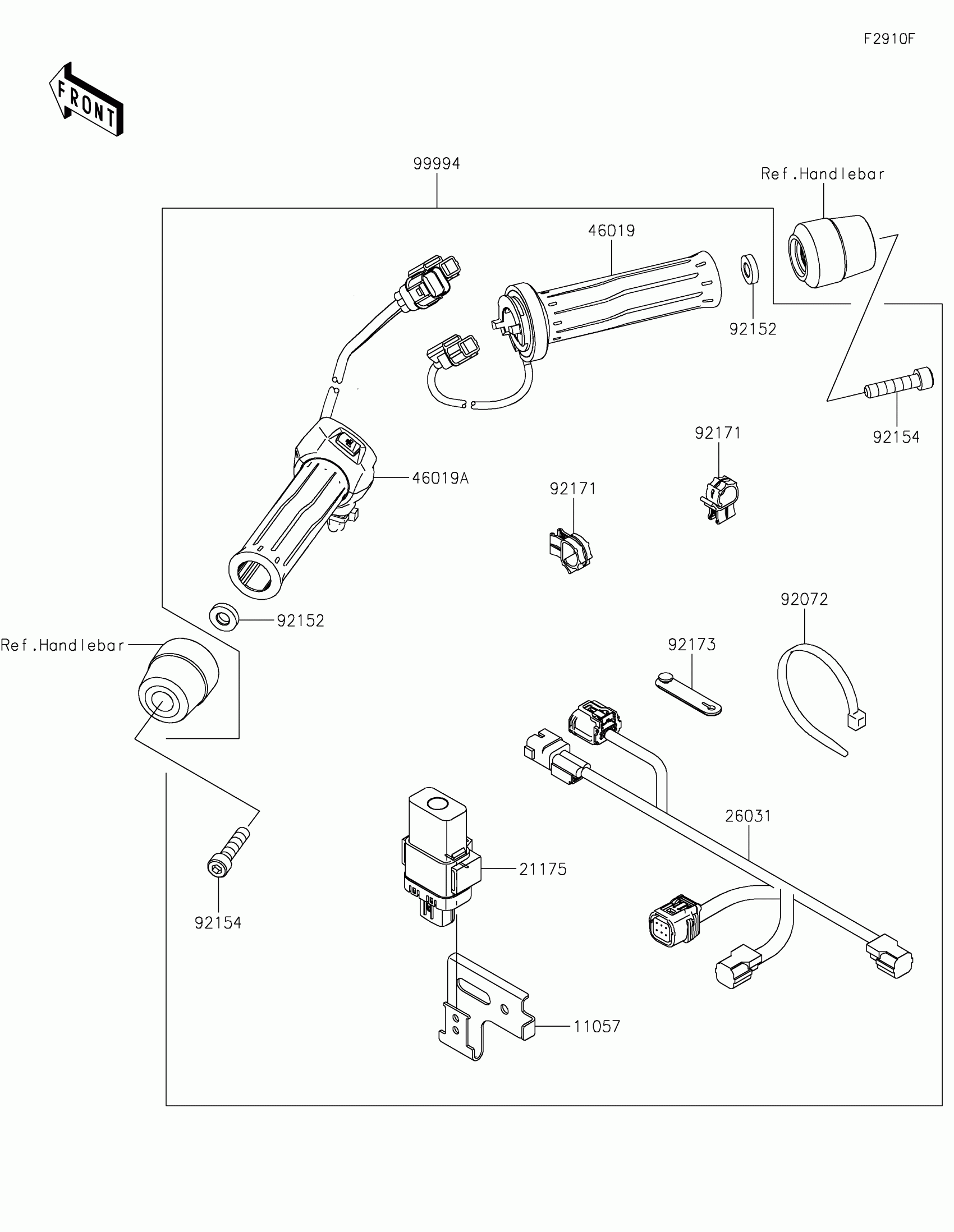

2020 Kawasaki Ninja® 1000SX Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET

11057-2960

1

$9.86

In stock

21175

1

$127.41

In stock

26031

HARNESS,GRIP HEATER

26031-2722

1

$107.83

In stock

46019

GRIP-ASSY,HEATER,RH

46019-0096

1

$150.28

In stock

46019A

GRIP-ASSY,HEATER,LH

46019-0097

1

$150.28

In stock

92072

BAND

92072-3851

1

$2.24

In stock

92152

COLLAR

92152-2663

1

$5.08

In stock

92154

BOLT,SOCKET,8X35

92154-4053

1

$2.29

In stock

92171

CLAMP,EDGE CLIP

92171-1722

1

$7.90

In stock

92173

CLAMP

92173-2198

1

$1.32

In stock

99994

GRIP HEATER

99994-1412

1

$355.40

In stock
