2013 Kawasaki Ninja® 1000 Accessory Diagram

← All diagrams

Find the part on the Accessory diagram for your 2013 Kawasaki Ninja® 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

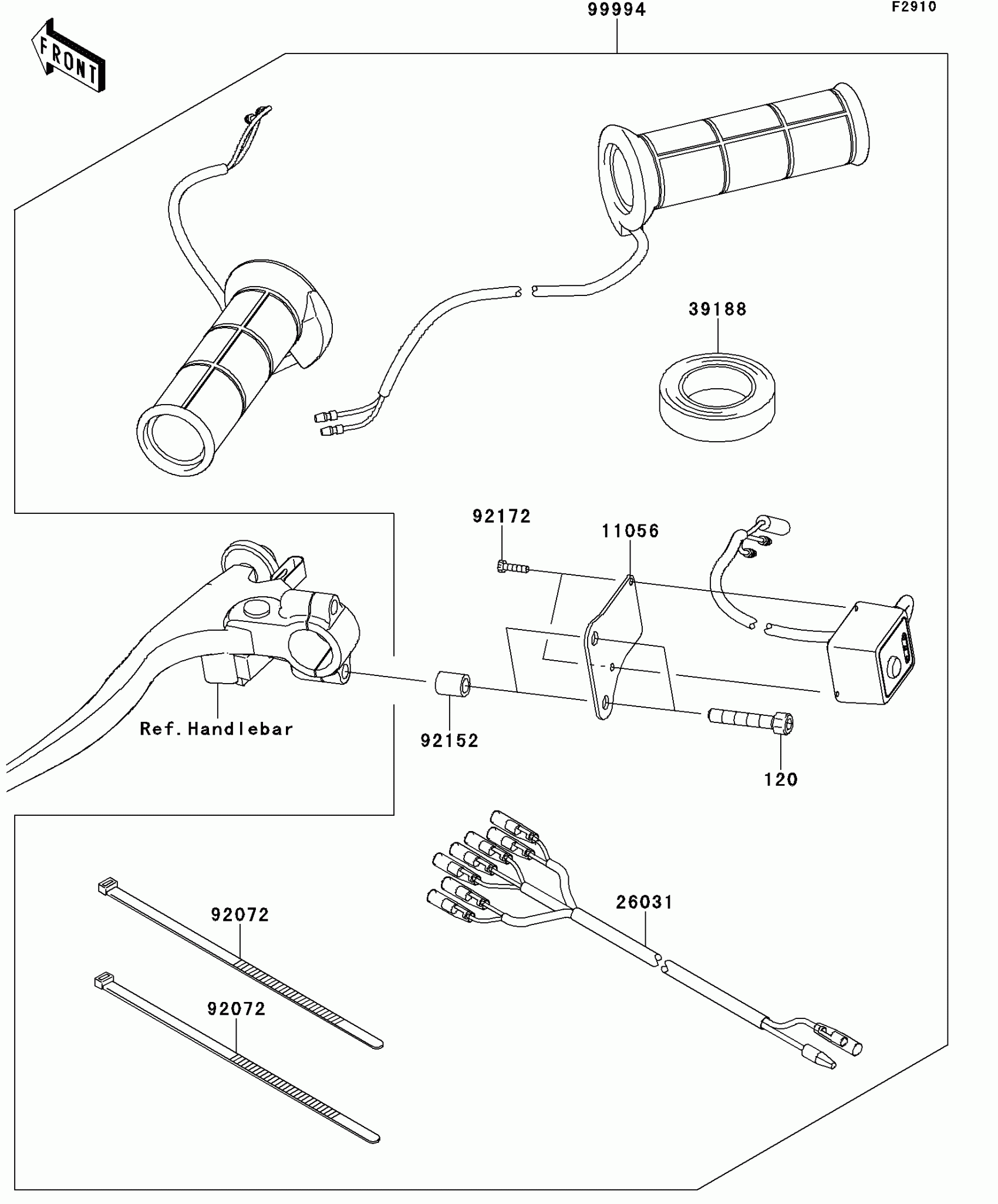

2013 Kawasaki Ninja® 1000 Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

1

$18.69

In stock

26031

HARNESS

26031-1203

1

$45.34

In stock

39188

TAPE,HARNESS

39188-0006

1

$10.12

In stock

92072

BAND,L=202

92072-1195

1

$1.34

In stock

92152

COLLAR,6.5X10.5X13

92152-0902

1

$9.49

In stock

92172

SCREW,TAPPING,3X12

92172-0489

1

$2.46

In stock

99994

1

$308.77

In stock

120

BOLT-SOCKET,6X35

120CB0635

1

$1.71

In stock
