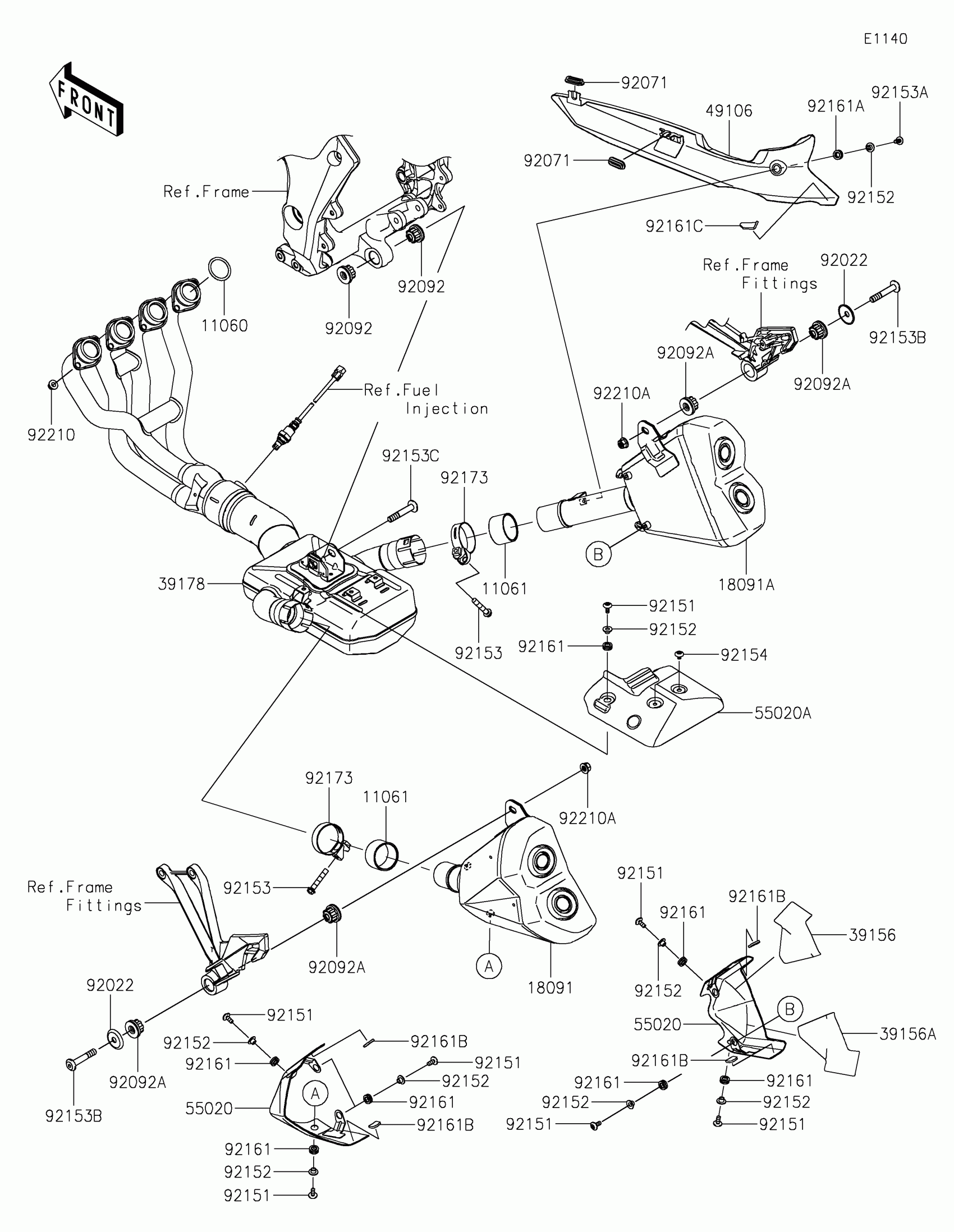

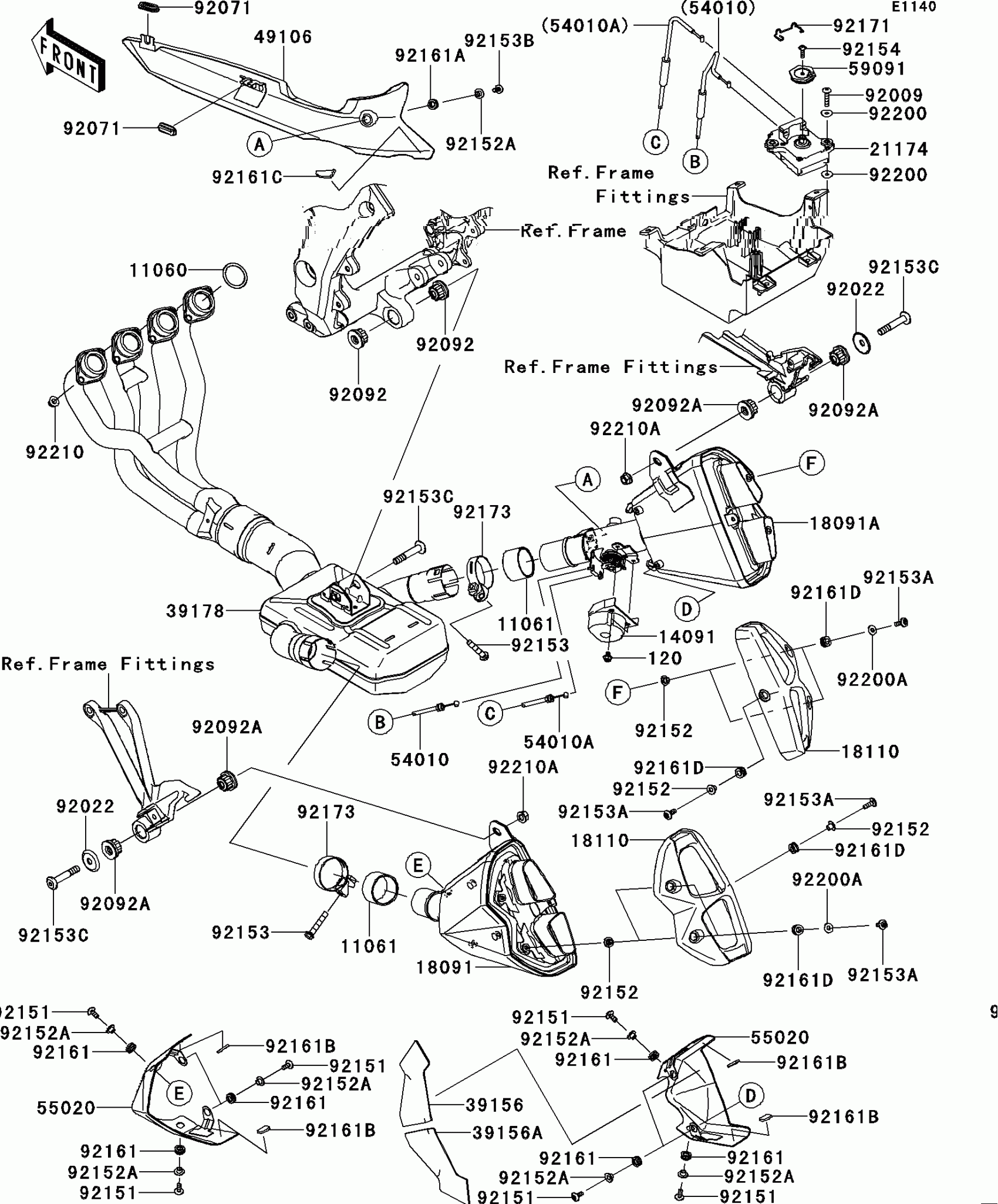

Kawasaki NINJA® 1000 ABS Muffler(s) Diagram

#

Description
Price

11060

GASKET,EXHAUST PIPE HOLDER

11060-1103

$6.01

11061

GASKET,MUFFLER CONNECTING

11061-0726

$35.46

14091

COVER,PULLEY

14091-0712

$42.50

18091

BODY-COMP-MUFFLER,LH

18091-0858

$1,027.55

18091A

BODY-COMP-MUFFLER,RH

18091-0859

$1,225.02

18110

BODY END-MUFFLER

18110-0114

$88.69

21174

MOTOR-ELECTRIC

21174-0005

$344.73

39156

PAD

39156-0728

$8.31

39156A

PAD

39156-0729

$8.31

39178

MANIFOLD-COMP-EXHAUST

39178-0166

$1,686.09

49106

COVER-MUFFLER

49106-0710

$216.58

54010

CABLE,OPEN,WHITE

54010-0119

$84.01

54010A

CABLE,CLOSE,BLACK

54010-0120

$84.01

55020

GUARD,FRONT COVER

55020-0568

$195.89

59091

PULLEY

59091-0007

$20.88

92009

SCREW,TAPPING,6X30

92009-1481

$3.57

92022

WASHER

92022-289

$12.40

92071

GROMMET

92071-1187

$3.78

92092

BUSHING-RUBBER

92092-1081

$20.13

92092A

BUSHING-RUBBER,MUFFLER

92092-1087

$16.04

92151

BOLT,SOCKET,6X14

92151-1654

$1.24

92152

COLLAR,6.3X8.3X9.2

92152-0237

$4.27

92152A

COLLAR,6.3X8.3X16

92152-0286

$4.27

92153

BOLT,8X45

92153-0702

$2.76

92153A

BOLT,6X18

92153-0816

$1.57

92153B

BOLT,SOCKET,6X16

92153-0817

$1.57

92153C

BOLT,SOCKET,10X58

92153-1930

$8.46

92154

BOLT,TORX,5X18

92154-0217

$3.27

92161

DAMPER

92161-0306

$4.27

92161A

DAMPER

92161-0308

$3.51

92161B

DAMPER

92161-0856

$10.69

92161C

DAMPER,SIDE COVER

92161-0870

$4.71

92161D

DAMPER

92161-0938

$4.66

92171

CLAMP

92171-0292

$9.76

92173

CLAMP

92173-0037

$25.68

92200

WASHER

92200-0078

$1.54

92200A

WASHER,6.5X16X1.0

92200-3712

$2.84

92210

NUT,8MM

92210-0076

$4.15

92210A

NUT

92210-0568

$1.73

120

BOLT-SOCKET,6X10

120CB0610

$2.05
