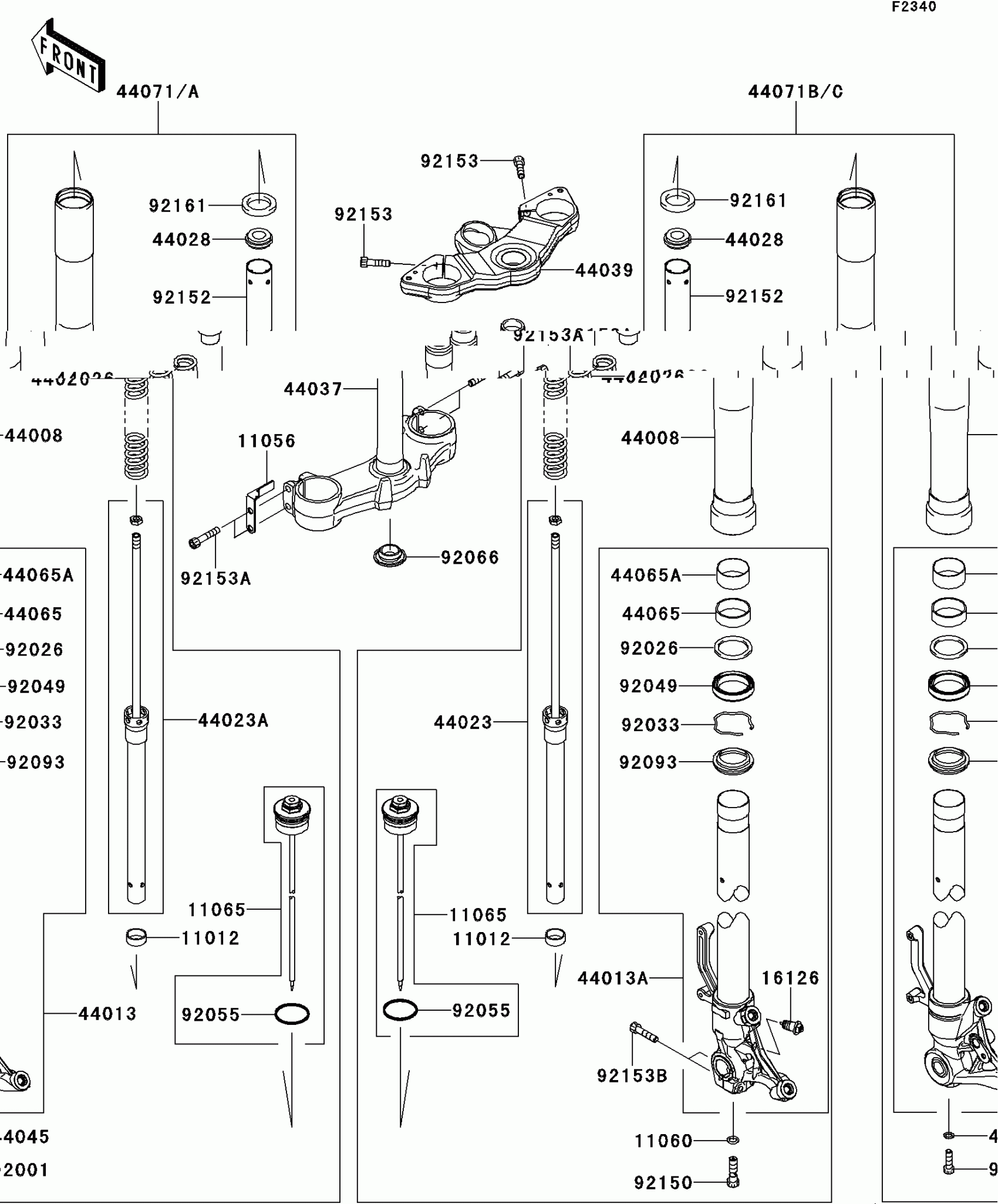

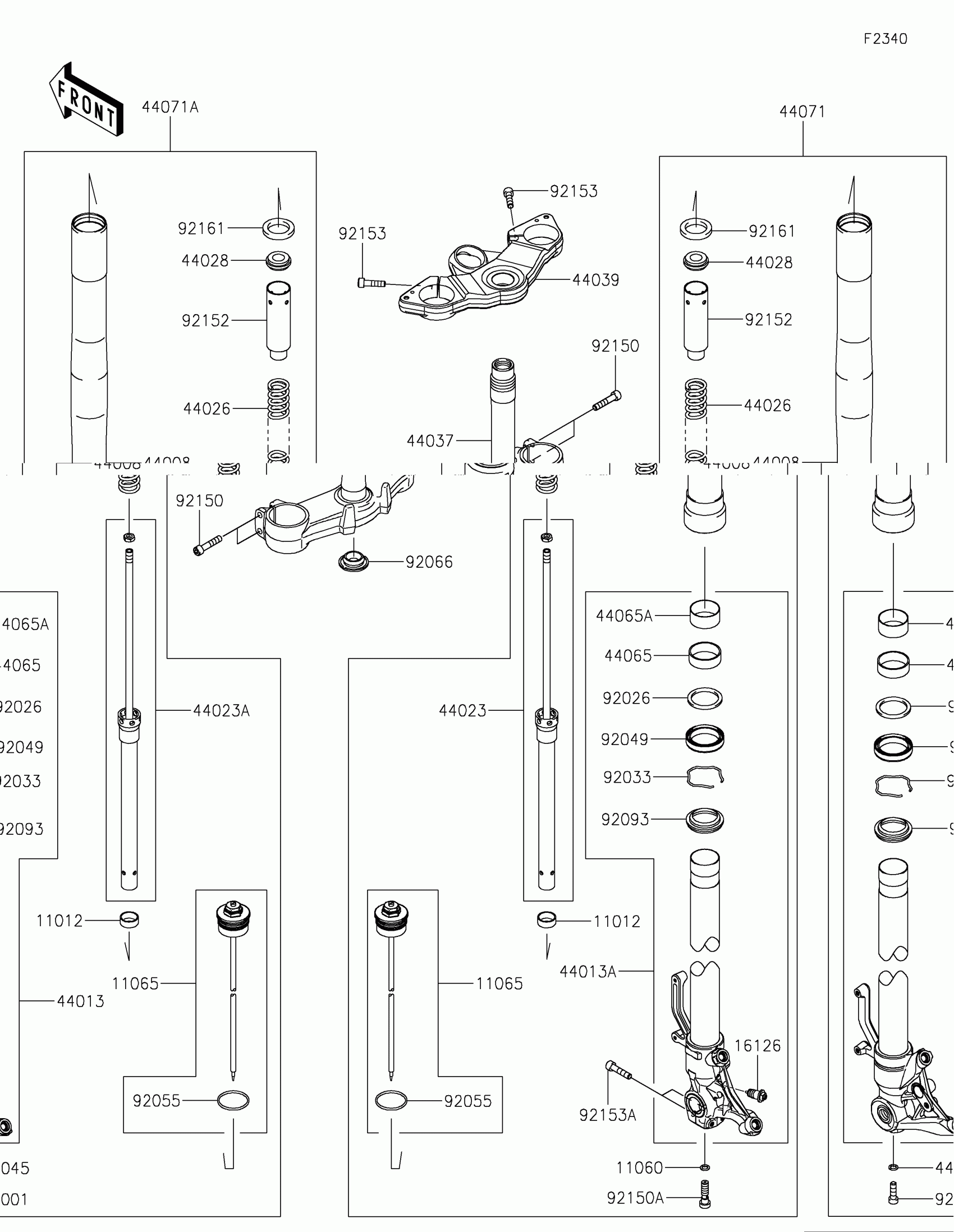

Kawasaki NINJA® 1000 ABS Front Fork Diagram

#

Description
Price

11012

CAP

11012-1761

$35.56

11056

BRACKET

11056-0889

$10.68

11060

GASKET,FORK CYLINDER BOLT

11060-1180

$3.25

11065

CAP,FORK BOLT COMP,GRAY

11065-0372-11G

$114.52

16126

VALVE,FORK

16126-0031

$182.76

44008

PIPE-FORK OUTER,GRAY

44008-0053-11G

$481.45

44013

PIPE-FORK INNER,LH

44013-0160

$508.00

44013A

PIPE-FORK INNER,RH

44013-0161

$508.00

44023

CYLINDER-SET-FORK,RH

44023-0090

$476.16

44023A

CYLINDER-SET-FORK,LH

44023-0091

$476.16

44026

SPRING-FRONT FORK

44026-0153

$93.11

44028

GUIDE-FORK SPRING

44028-1083

$9.07

44037

HOLDER-FORK UNDER,F.S.BLACK

44037-0107-18R

$611.05

44039

HOLDER-FORK UPPER

44039-0105

$327.91

44045

GASKET,FORK CYLINDER BOLT

44045-051

$4.64

44065

BUSHING-FRONT FORK,GUIDE

44065-0030

$16.65

44065A

BUSHING-FRONT FORK

44065-0036

$16.85

44071A

DAMPER-ASSY,LH,GRAY

44071-0710-39F

$1,045.49

44071C

DAMPER-ASSY,RH,GRAY

44071-0711-39F

$1,045.49

92001

BOLT,FORK CYLINDER

92001-1464

$4.67

92026

SPACER,FORK OUTER

92026-1276

Unavailable

92033

RING-SNAP

92033-1222

$4.88

92049

SEAL-OIL

92049-0125

$21.38

92055

RING-O

92055-0131

$4.95

92066

PLUG

92066-0032

$11.19

92093

SEAL,DUST

92093-0035

$20.73

92150

BOLT,FORK CYLINDER

92150-1514

$5.81

92152

COLLAR

92152-0263

$14.39

92153

BOLT,SOCKET,8X30

92153-0500

$10.44

92153A

BOLT

92153-0533

$10.44

92153B

BOLT,SOCKET

92153-0537

$9.80

92161

DAMPER

92161-0418

$5.86
