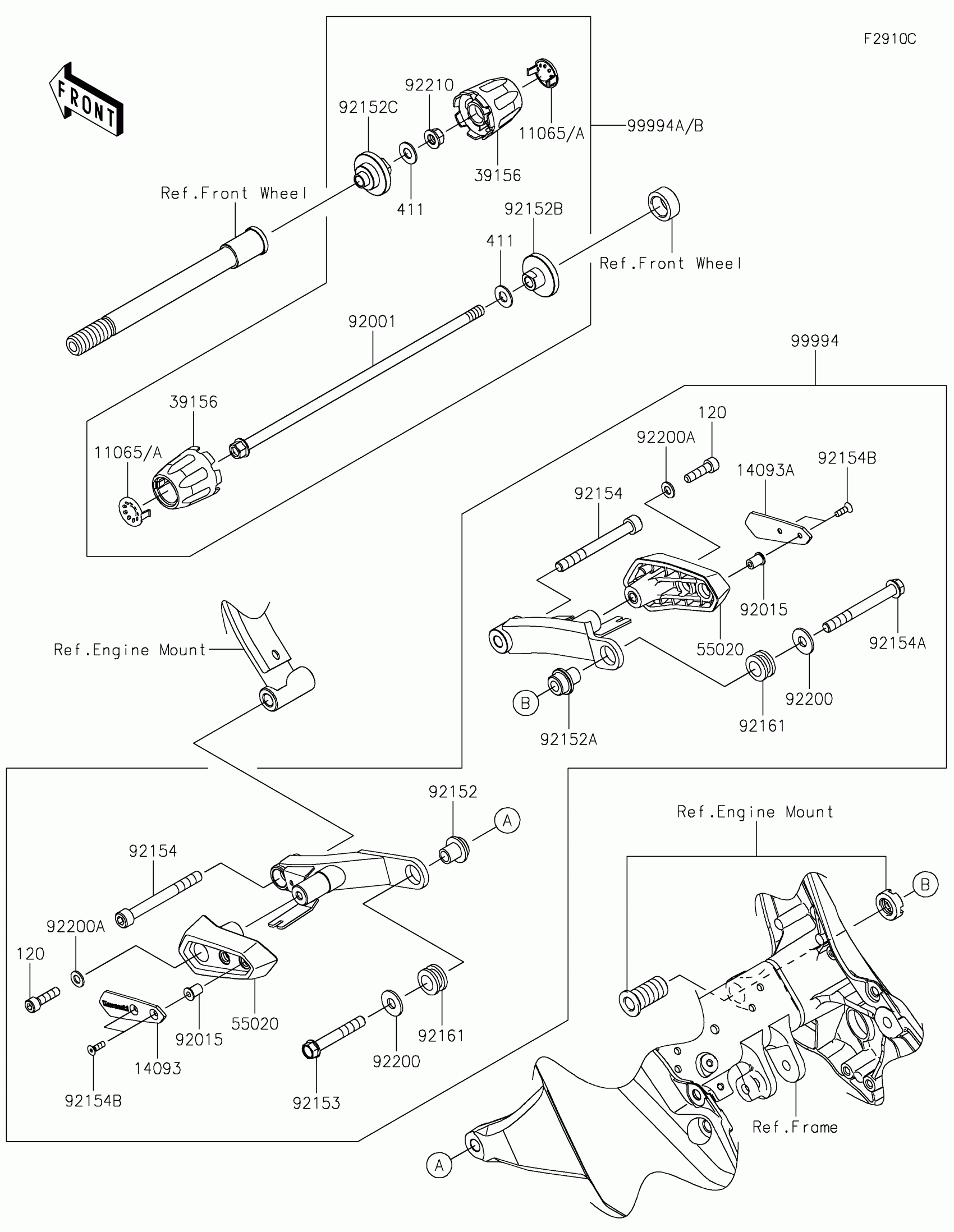

Kawasaki NINJA® 1000 ABS Accessory(Slider) Diagram

Description

Price

11065A

CAP,B.SILVER

11065-1313-54N

$7.41

120

BOLT-SOCKET,8X30

120CA0830

$1.98

14093

COVER,SLIDER,LH

14093-0350

$91.14

14093A

COVER,SLIDER,RH

14093-0351

$91.14

39156

PAD,AXLE SLIDER

39156-2212

$60.42

411

WASHER-PLAIN,10MM

411AA1000

$0.81

55020

GUARD

55020-1997

$145.01

92001

BOLT,FLANGED,10X320,BLACK

92001-1624

$35.17

92015

NUT,WELL,5MM

92015-1757

$5.58

92152

COLLAR,RR,LH

92152-1519

$12.24

92152A

COLLAR,RR,RH

92152-1520

$13.25

92152B

COLLAR,LH,L=25.5

92152-2305

$54.87

92152C

COLLAR,RH,L=34.1

92152-2307

$67.69

92153

BOLT,FLANGED,10X65

92153-1931

$5.91

92154

BOLT,SOCKET,10X95

92154-0447

$3.51

92154A

BOLT,FLANGED,10X90

92154-0448

$10.25

92154B

BOLT,SOCKET,5X16

92154-1014

$0.73

92161

DAMPER,15.5X26X14.5

92161-1361

$8.27

92200

WASHER,10.5X26X2.3

92200-0088

$2.15

92200A

WASHER,8.4X16X1.6

92200-0807

$3.36

92210

NUT,LOCK,FLANGED,10MM

92210-1139

$2.90

99994

SLIDER KIT

99994-0864

Unavailable

99994B

KIT,FRONT AXLE SLIDER

99994-1276

$137.19
