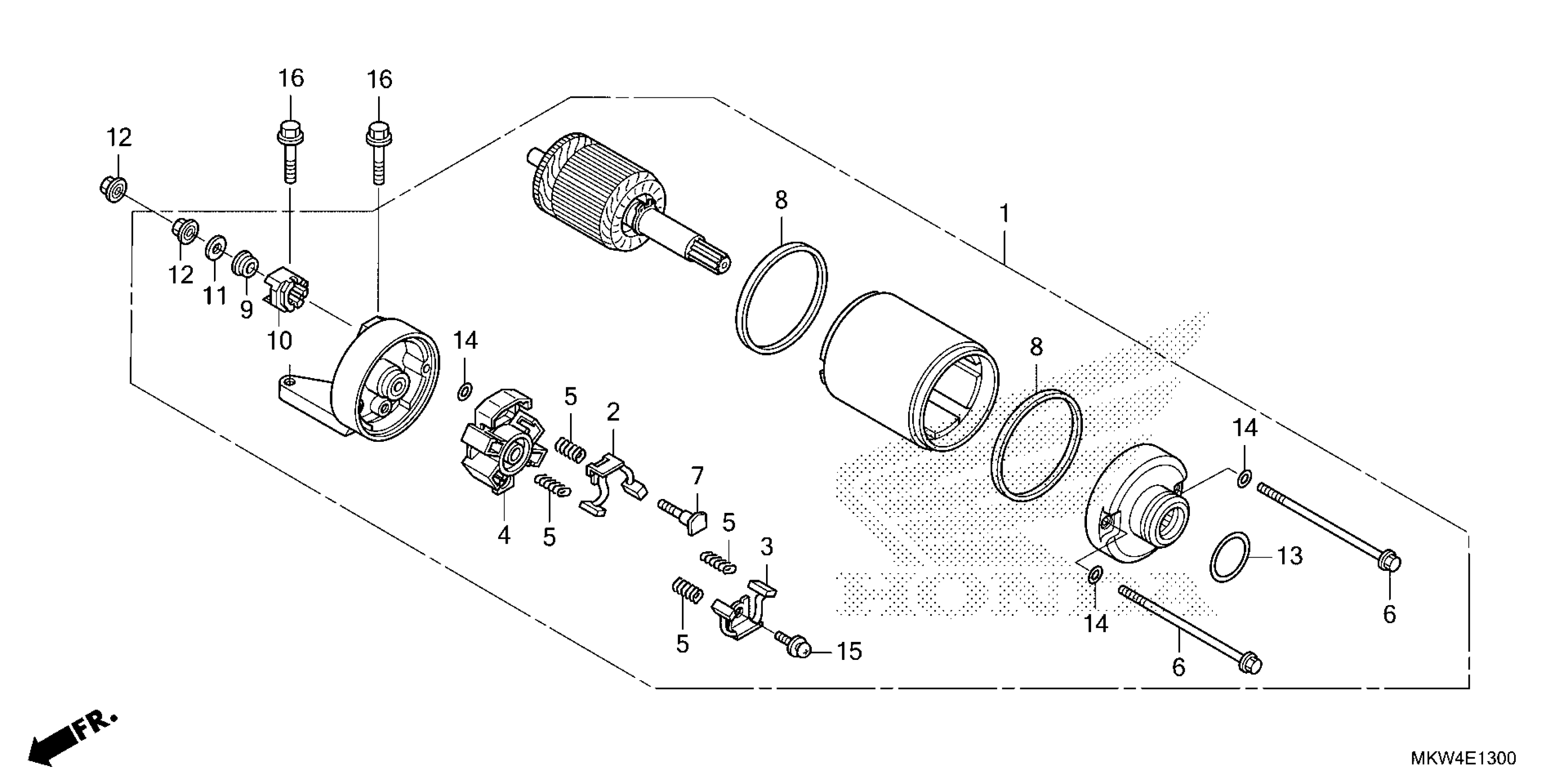

Honda NC750XDAC (22) MOTORCYCLE, JPN, VIN# JH2RH091-NK100001 TO JH2RH091-NK199999 STARTING MOTOR Diagram

#

Description
Price

1

STARTER MOTOR ASSY. (MITSUBA)

31200-MJL-D21

$571.46

2

BRUSH SET A, CARBON (Honda Code 8476772)

31201-MEW-921

$7.74

3

BRUSH SET B, CARBON (Honda Code 8476780)

31202-MEW-921

$12.55

4

HOLDER, BRUSH (Honda Code 8614117)

31203-MEW-921

$7.44

5

SPRING, CARBON BRUSH (Honda Code 8476798)

31204-MEW-921

$12.12

6

BOLT, SETTING

31205-MEW-921

$9.43

7

BOLT, TERMINAL

31206-MEW-921

$2.83

8

RING (Honda Code 2541985)

31207-KS5-901

$3.10

9

INSULATOR (Honda Code 8476822)

31208-MEW-921

$7.40

10

STOPPER, TERMINAL (Honda Code 8476830)

31209-MEW-921

$10.98

11

WASHER

31210-MEW-921

$1.75

12

NUT-WASHER (6MM)

90071-MB0-000

$2.00

13

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

$6.14

13

O-RING (24.4X3.1) (Honda Code 2618221)

91312-MG7-003

$6.14

14

O-RING (Honda Code 1292184)

91320-MB0-000

$2.34

15

SCREW-WASHER (5X12) (Honda Code 0368621)

93892-05012-08

$1.18

16

BOLT, FLANGE (6X25)

95801-06025-00

$1.05
