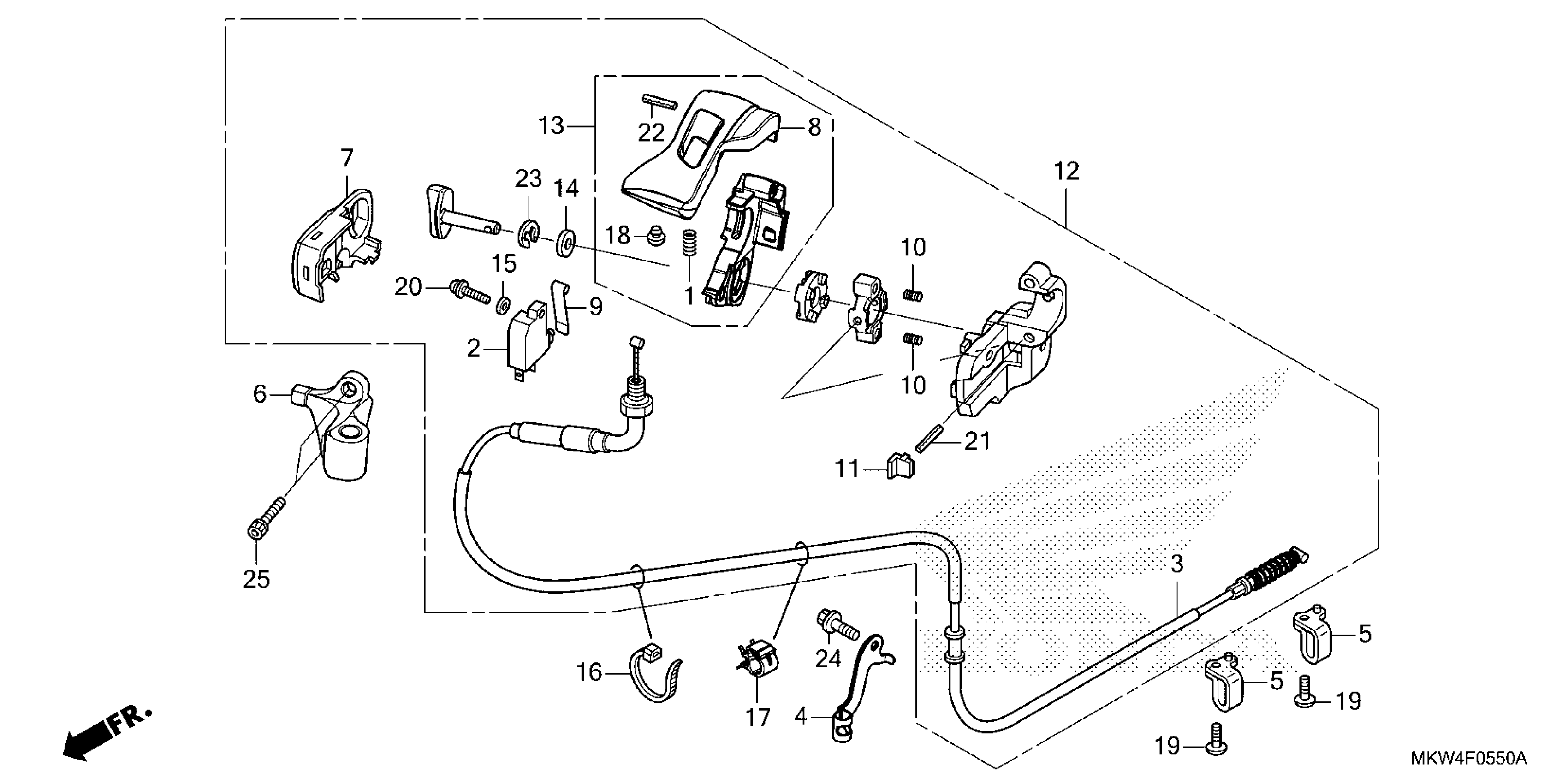

Honda NC750XDAC (22) MOTORCYCLE, JPN, VIN# JH2RH091-NK100001 TO JH2RH091-NK199999 PARKING BRAKE LEVER Diagram

#

Description
Price

1

SPRING, BALL SETTING

24271-743-000

$2.31

2

SWITCH ASSY., FR. STOP

35340-MGS-D31

$17.76

3

CABLE, PARKING BRAKE

43450-MKW-D11

$44.65

4

CLAMP, PARKING CABLE

43455-MKW-D10

$8.12

5

GUIDE, PARKING BRAKE

43456-MGS-D70

$6.62

6

HOLDER (UPPER)

47111-MKW-D10

$49.68

7

COVER, HOLDER

47117-MGS-D50

$3.69

8

LEVER, PARKING TOP

47152-MGS-D51

$10.72

9

SPRING, SWITCH

47154-MGE-D00

$8.22

10

SPRING, PLUNGER

47155-MGE-D00

$3.60

11

CAP, HOLDER (LOWER)

47156-MGE-D00

$2.23

12

LEVER ASSY., PARKING

47200-MKW-D10

$335.86

13

LEVER, PARKING

47210-MGS-D51

$43.23

14

WASHER (10.2MM)

90401-430-000

$1.66

15

WASHER, PLAIN (4X8)

90515-GN5-910

$1.20

15

WASHER, PLAIN (4X8) This part replaces 90515-046-810.

90515-GN5-910

$1.20

16

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$3.71

17

CLIP, CABLE (10MM) CLIP, CABLE (8MM)

90690-GHB-641

$2.11

18

PLUG, CHANGE REINFORCEMENT

90801-SB0-000

$3.86

19

SCREW, PAN (5X16) SCREW, PAN (4X20)

93500-05016-0G

$0.94

20

SCREW-WASHER (4X14)

93892-04014-07

$1.31

21

PIN, SPRING (3X22)

94305-30223

$1.15

22

PIN, SPRING (3X28) (NOT AVAILABLE)

94305-30283

$1.78

23

E-RING (9MM) (NOT AVAILABLE)

94540-09018

$3.72

24

BOLT, FLANGE (6X14)

96001-06014-00

$1.88

25

BOLT, SOCKET (6X20)

96600-06020-07

$1.00
