Description

Price

1

SEAL, IGNITION SWITCH

30433-MBW-602

$2.74

2

LOCK SET This part replaces 35010-MKW-A00.

35010-MKW-A01

$252.85

2

LOCK SET

35010-MKW-A01

$252.85

3

SWITCH ASSY., COMBINATION & LOCK

35100-MKW-A01

$146.58

4

BASE, CONTACT

35101-MKW-D01

$71.95

5

COVER, COMBINATION SWITCH

35106-MAT-A00

$10.06

6

EMBLEM, KEY | (Optional).

35113-MJE-D00

$21.02

7

KEY, BLANK | (Optional).

35121-MJE-A02

$21.10

8

HANDLEBAR NH105 (MAT BLACK)

53100-MKW-D00ZA

$176.75

9

WEIGHT B, HANDLEBAR

53105-KV3-000

$16.59

10

WEIGHT, HANDLEBAR

53105-MK4-620

$14.41

11

RUBBER A, HANDLE WEIGHT

53106-KR3-000

$3.90

12

RUBBER, HANDLE WEIGHT (B)

53107-MY1-000

$6.97

13

RING, HANDLE WEIGHT SNAP

53108-KR3-770

$6.20

14

CLAMP, CABLE

53111-MKW-D10

$10.51

15

HOLDER ASSY., HANDLE (UPPER) NH105 (MAT BLACK)

53130-MGS-D30ZA

$110.85

16

BRIDGE, FORK TOP

53230-MGS-D30

$207.08

17

CAP, STEERING STEM NUT

53232-MJ4-670

$12.89

18

EMBLEM, PRODUCT (MARUI)

86150-KPG-901

$3.60

18

EMBLEM, PRODUCT (UEHARA)

86150-KPG-902

$3.88

19

SCREW-WASHER (5X22)

90020-MBW-610

$2.48

20

BOLT, ONE-WAY (8MM)

90107-MBG-000

$2.92

21

BOLT, FLANGE (8X36) BOLT, FLANGE (8X35)

90111-362-000

$4.78

22

BOLT, FLANGE SOCKET (8X32)

90160-MGJ-D00

$4.29

23

SCREW, OVAL (6X65)

90191-KBG-000

$4.91

24

NUT, STEERING STEM FLANGE

90304-MCF-000

$10.43

25

SCREW, TAPPING (3X16)

91059-KY2-711

$2.95

26

CLIP, HANDLEBAR

91501-MKA-D80

$2.05

27

BOLT, SOCKET (6X16)

96600-06016-08

$1.82

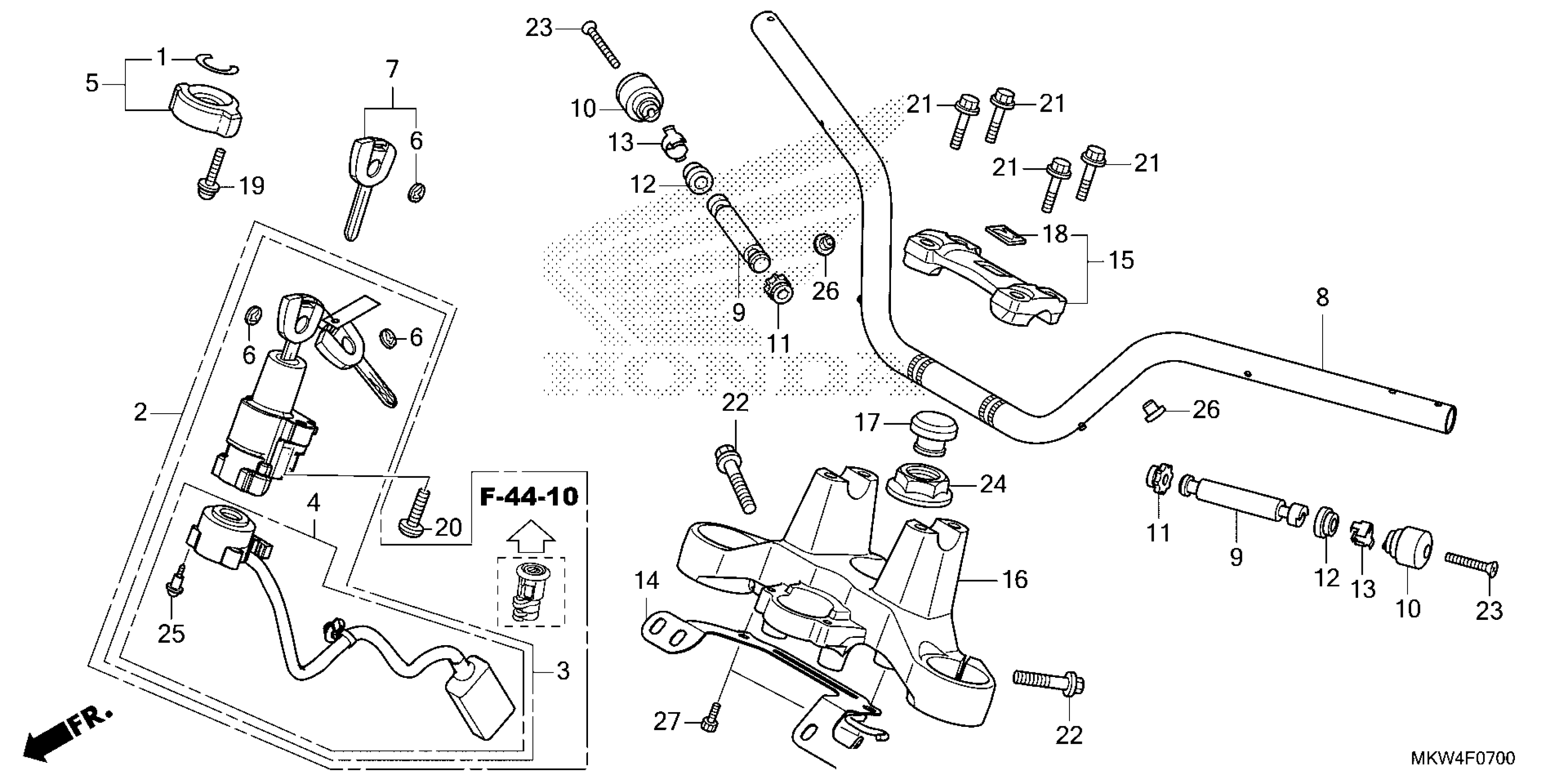

Honda NC750XDAC (22) MOTORCYCLE, JPN, VIN# JH2RH091-NK100001 TO JH2RH091-NK199999 HANDLEBAR@TOP BRIDGE Diagram
