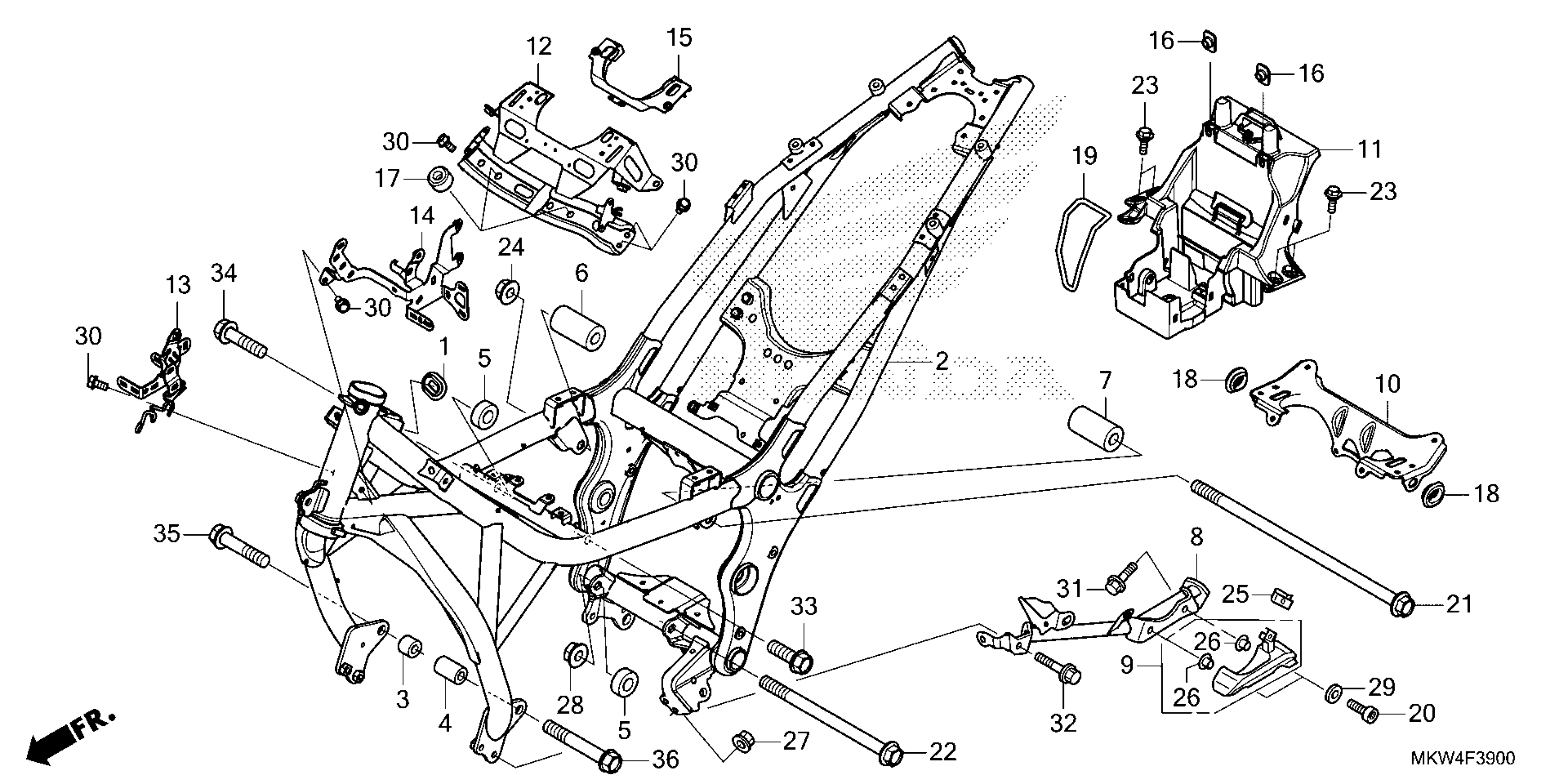

Honda NC750XDAC (22) MOTORCYCLE, JPN, VIN# JH2RH091-NK100001 TO JH2RH091-NK199999 FRAME Diagram

#

Description
Price

1

GROMMET A, AIR CLEANER HOUSING

17247-303-000

$7.56

2

FRAME *NHA86M* (MAT BALLISTIC BLACK)

50100-MKW-D00ZA

$1,615.36

3

COLLAR A, R. ENGINE HANGER

50191-MGS-D10

$7.30

4

COLLAR A, L. ENGINE HANGER

50192-MGS-D10

$10.90

5

COLLAR B, ENGINE HANGER

50193-MGS-D10

$5.06

6

COLLAR C, R. ENGINE HANGER

50194-MKT-D00

$14.48

7

COLLAR C, L. ENGINE HANGER

50195-MKT-D00

$17.23

8

PIPE, GUARD

50196-MKW-D00

$110.99

9

COVER, MOTOR

50197-MGS-D50

$18.30

10

STAY, FR. TANK

50230-MKW-D00

$28.28

11

BRACKET, CENTER CROSS

50234-MKW-D00

$41.71

12

PLATE B, CROSS

50236-MKW-D00

$66.57

13

STAY, R. AIR CLEANER HOUSING

50237-MKW-D00

$26.43

14

STAY, L. AIR CLEANER HOUSING

50238-MKW-D00

$29.45

15

RUBBER, CROSS PLATE

50239-MGS-D30

$7.06

16

NUT, SPECIAL (6MM)

61304-HB3-003

$2.65

17

RUBBER, SEAT SETTING

77206-GF0-000

$5.07

18

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

Unavailable

19

BAND, TOOL

83606-KWS-901

$3.16

20

BOLT, SOCKET (8X25)

90102-MN8-700

$3.90

21

BOLT, FLANGE (12X276)

90103-MGS-D30

$17.84

22

BOLT, FLANGE (12X168)

90104-MGS-D30

$11.04

23

BOLT, FR. FENDER FIXING

90106-MM9-000

$2.80

24

NUT, FLANGE (12MM)

90364-MEJ-000

$1.57

25

NUT, CLIP (5MM)

90677-KAN-961

$3.79

26

COLLAR

91501-MGS-D30

$2.77

27

NUT, FLANGE (8MM)

94050-08070

$1.36

28

NUT, FLANGE (12MM)

94050-12000

$0.94

29

WASHER, PLAIN (8MM)

94101-08700

$0.90

30

BOLT, FLANGE (6X12)

95701-06012-08

$1.48

31

BOLT, FLANGE (8X20)

95701-08020-07

$1.70

32

BOLT, FLANGE (8X22)

95701-08022-08

$1.91

33

BOLT, FLANGE (12X35)

95701-12035-08

$2.88

34

BOLT, FLANGE (12X45)

95701-12045-08

$1.89

35

BOLT, FLANGE (12X55)

95701-12055-08

$2.99

36

BOLT, FLANGE (12X80)

95701-12080-08

$4.01
