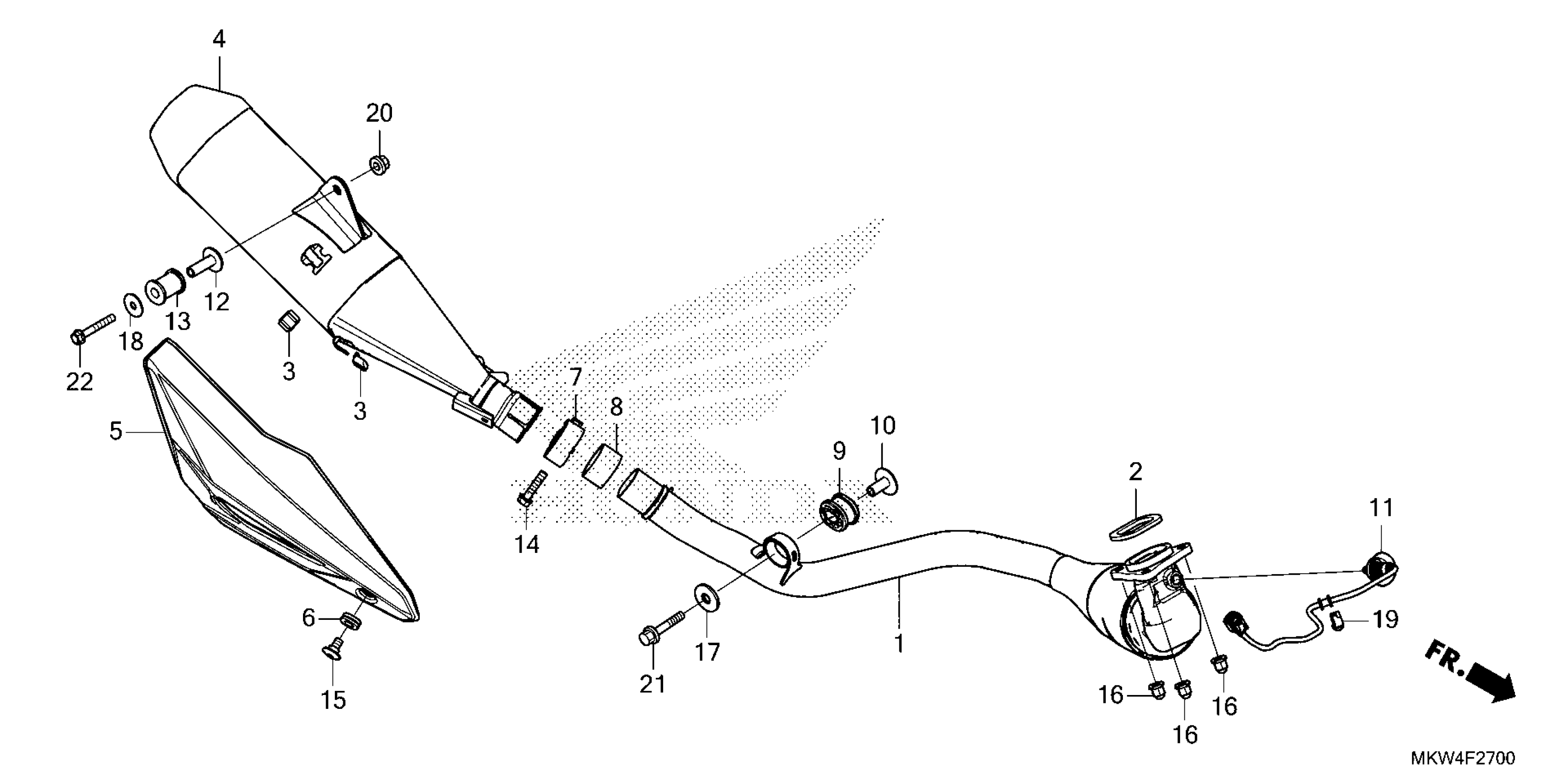

Honda NC750XDAC (22) MOTORCYCLE, JPN, VIN# JH2RH091-NK100001 TO JH2RH091-NK199999 EXHAUST MUFFLER Diagram

PIPE, EX.

18150-MKW-D01

$1,047.48

GASKET, EX. PIPE

18291-MGS-D31

$10.30

RUBBER, PROTECTOR GASKET

18293-MCA-A20

$1.87

MUFFLER

18310-MKW-D01

$442.67

COVER, MUFFLER

18342-MKA-D81

$65.75

RUBBER, PROTECTOR MOUNTING

18345-MBT-610

$1.99

BAND, R. FR. MUFFLER (L. RR.) (L.)

18373-413-000

$35.45

GASKET, MUFFLER

18392-MK4-000

$12.26

RUBBER, EX. PIPE MOUNTING

18422-MFJ-D10

$16.83

COLLAR, EX. PIPE MOUNTING

18423-MGS-D30

$7.00

SENSOR, AIR FUEL RATIO

36533-MKW-D01

$213.68

COLLAR, MOUNTING RUBBER

50607-KK6-000

$8.20

RUBBER, MUFFLER MOUNTING

50608-KV0-000

$5.80

BOLT, FLANGE (8X35)

90103-KCM-620

$1.43

SCREW, PAN (6X12)

90113-GFP-B00

$3.33

NUT, CAP (8MM)

90304-ME1-670

$5.54

WASHER (8MM)

90501-819-000

$1.36

WASHER (8.5X28)

90534-MV4-000

$2.62

CLIP, HARNESS

90683-MGC-920

$2.84

NUT, FLANGE (8MM)

94050-08080

$0.86

BOLT, FLANGE (8X45)

96300-08045-04

$1.38

BOLT, FLANGE (8X50)

96300-08050-04

$1.62
