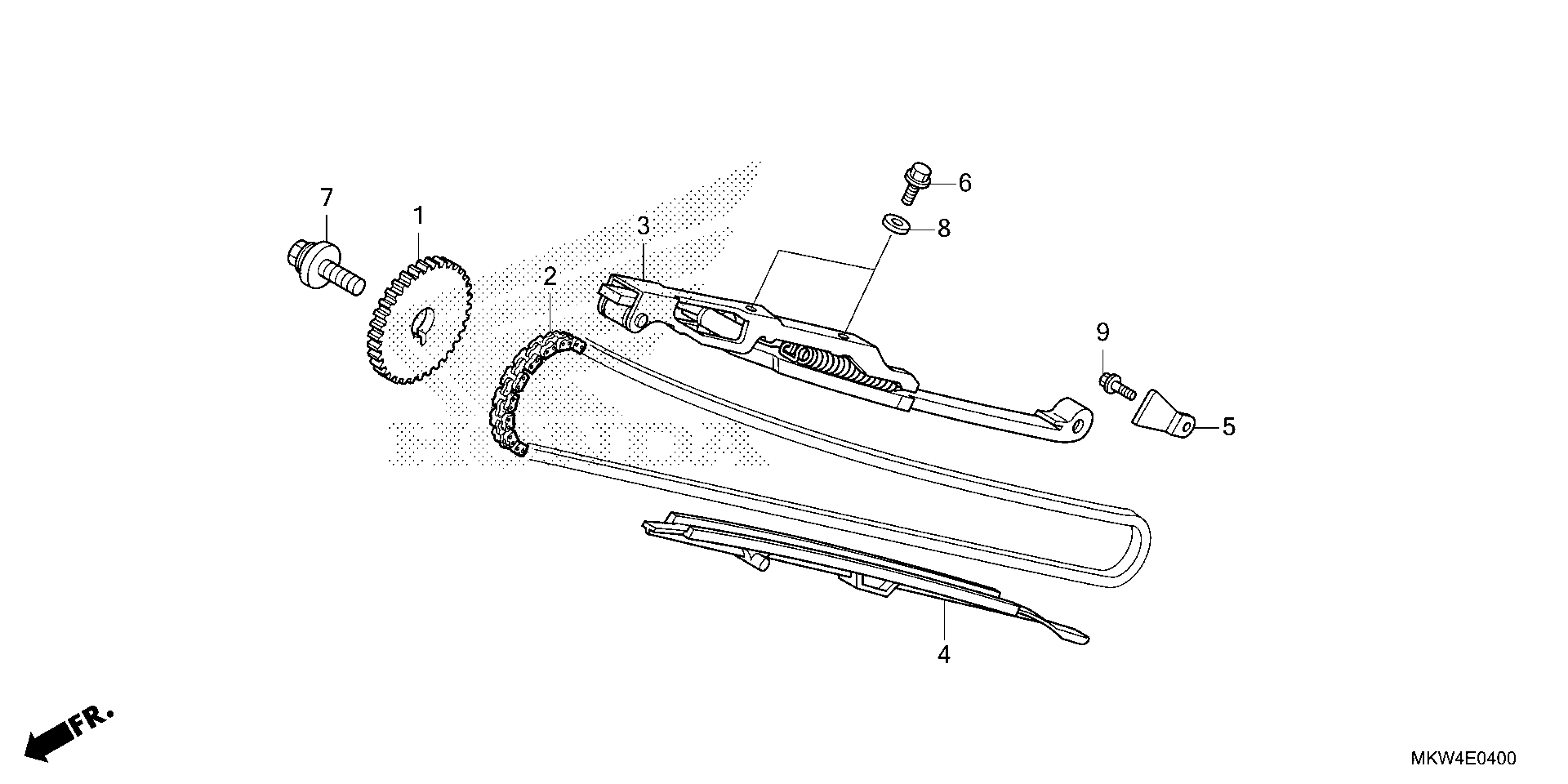

Honda NC750XDAC (22) MOTORCYCLE, JPN, VIN# JH2RH091-NK100001 TO JH2RH091-NK199999 CAM CHAIN@TENSIONER Diagram

#

Description
Price

1

SPROCKET, CAM (34T)

14321-MGS-D30

$81.18

2

CHAIN, CAM (114L) (SCH-0409 SV) (DAIDO)

14401-MGS-D31

$75.80

3

TENSIONER, CAM CHAIN

14510-MKT-D00

$137.05

4

GUIDE, CAM CHAIN

14530-MGS-D30

$55.97

5

PLATE, TENSIONER SETTING

14623-MBA-000

$5.46

6

BOLT, FLANGE (6X18)

90001-MZ8-U40

$1.83

7

BOLT-WASHER (10X30) This part replaces 90031-PV0-003.

90031-PV0-305

$14.45

7

BOLT-WASHER (10X30)

90031-PV0-305

$14.45

8

WASHER, SEALING (6MM)

90488-425-000

$2.20

9

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.97
