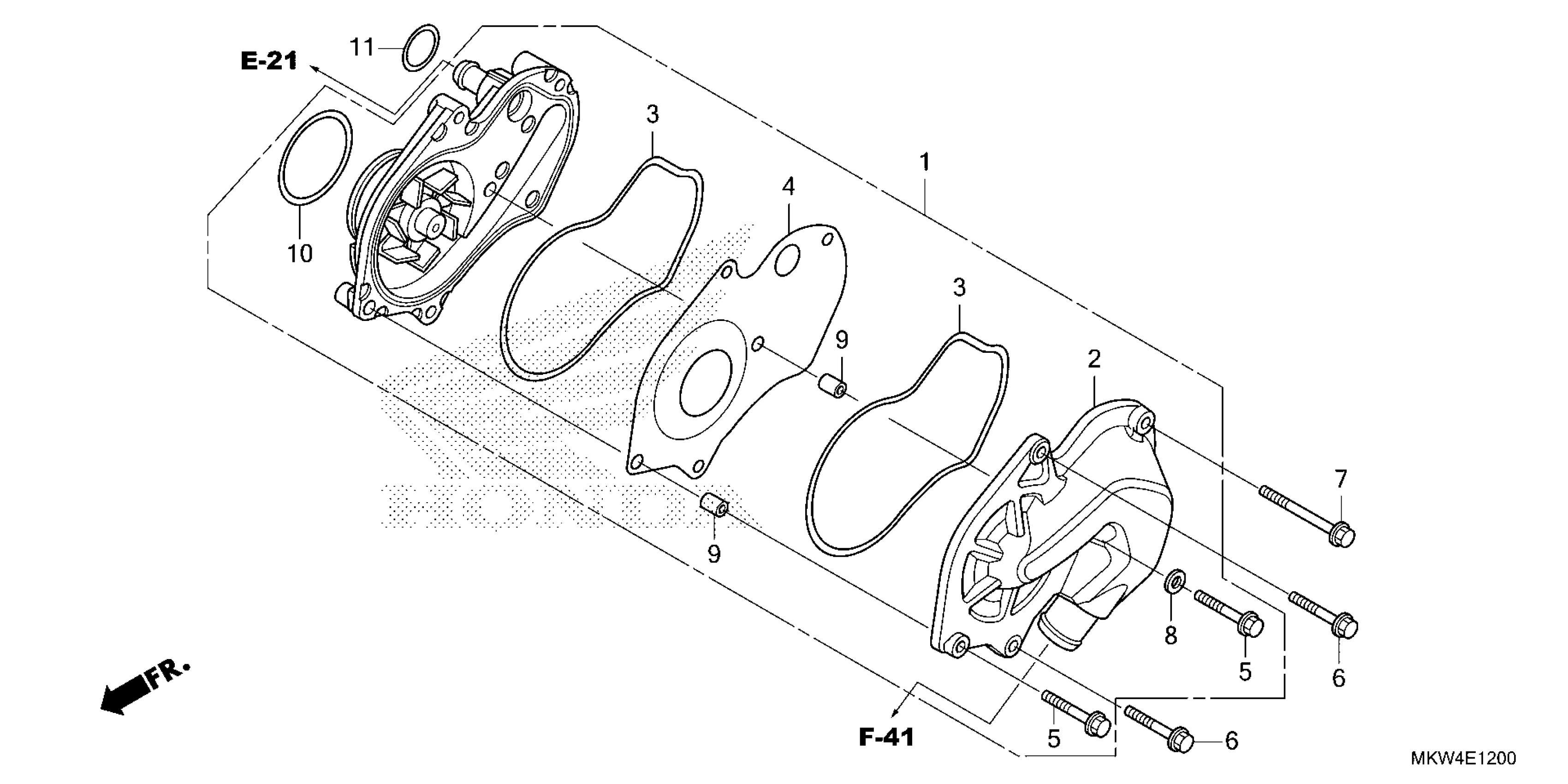

Honda NC750XAAC (22) MOTORCYCLE, JPN, VIN# JH2RH090-NK100001 TO JH2RH090-NK199999 WATER PUMP Diagram

#

Description
Price

1

WATER PUMP ASSY.

19200-MGS-D30

$272.51

2

COVER, WATER PUMP

19221-MGS-D30

$124.60

3

GASKET, WATER PUMP BODY

19226-MGS-D30

$7.05

4

PLATE, WATER PUMP

19231-MGS-D30

$8.88

5

BOLT, FLANGE (6X32) (NSHF)

90006-GHB-690

$1.86

6

BOLT, FLANGE (6X35) (NSHF)

90006-GHB-700

$1.86

7

BOLT, FLANGE (6X50) (NSHF) (Honda Code 7498413)

90006-GHB-730

$1.74

8

WASHER, SEALING (6.5MM)

90406-MGS-D30

$2.25

8

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

9

PIN, DOWEL (8X10)

90704-MGS-D30

$1.45

10

O-RING (48X2.6)

91301-MGS-D30

$2.78

11

O-RING (23.5X2)

91306-ZY3-003

$3.52
