Description

Price

1

CABLE, CLUTCH

22870-MKW-D01

$22.98

2

SWITCH UNIT

35135-MKW-D02

$211.23

3

SW, TURN SIGNAL

35200-MKW-A02

$153.60

4

SWITCH ASSY., CLUTCH

35330-MCJ-751

$7.74

5

PLATE A, SETTING

37971-MKR-D31

$4.37

6

HOLDER, MASTER CYLINDER

45517-166-006

Unavailable

7

GRIP ASSY., THROTTLE

53140-MKK-D01

$34.23

8

GRIP, L. HANDLE

53166-MGE-000

$17.02

9

HOLDER, CLUTCH LEVER

53172-MKW-D00

$31.29

10

LEVER, L. HANDLE (COO) This part replaces 53178-MJE-D00.

53178-MJE-305

$18.40

10

LEVER, L. HANDLE (COO)

53178-MJE-305

$18.40

11

BOLT, CLUTCH CABLE ADJUSTING

53192-349-690

$7.00

12

COVER, LOCK NUT

88130-MFG-D00

$1.66

13

MIRROR, R.

88210-MKS-E00

$86.60

14

MIRROR, L.

88220-MKS-E00

$86.60

15

BOLT, ADAPTER (10MM)

90003-MW3-620

$7.76

16

BOLT, FLANGE (6X22)

90013-GHB-660

$2.25

17

BOLT, L. HANDLEBAR LEVER PIVOT

90113-438-000

$7.54

18

SCREW, FLAT (3X16)

90124-MCJ-752

$0.60

19

NUT, CAP (6MM)

90201-415-000

$2.08

20

NUT, HEX. (10MM) (LEFT HAND THREAD)

90201-MW3-620

$4.38

21

NUT, FIXING

90321-KT7-760

$10.02

22

SCREW-WASHER (5X25)

90508-MGE-D00

$1.25

23

BAND, WIRE (Honda Code 2687788)

90650-KV6-003

$3.10

24

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$3.71

25

CLAMP, HARNESS

90652-HC4-003

$5.92

26

CLIP, CABLE (15MM)

90690-GHB-651

$2.11

27

CLIP, CONNECTOR (BLACK)

91533-MGS-D30

$1.29

28

CLIP, CONNECTOR (BLACK) (Honda Code 7386865)

91565-SEL-003

$3.66

29

SCREW-WASHER (4X8)

93892-04008-08

$1.18

29

SCREW-WASHER (4X8) This part replaces 93892-04008-18.

93892-04008-08

$1.18

30

SCREW-WASHER (5X10)

93892-05010-08

$1.18

31

NUT, HEX. (8MM)

94002-08070-0S

$1.37

32

NUT, HEX. (8MM)

94031-08070

$0.65

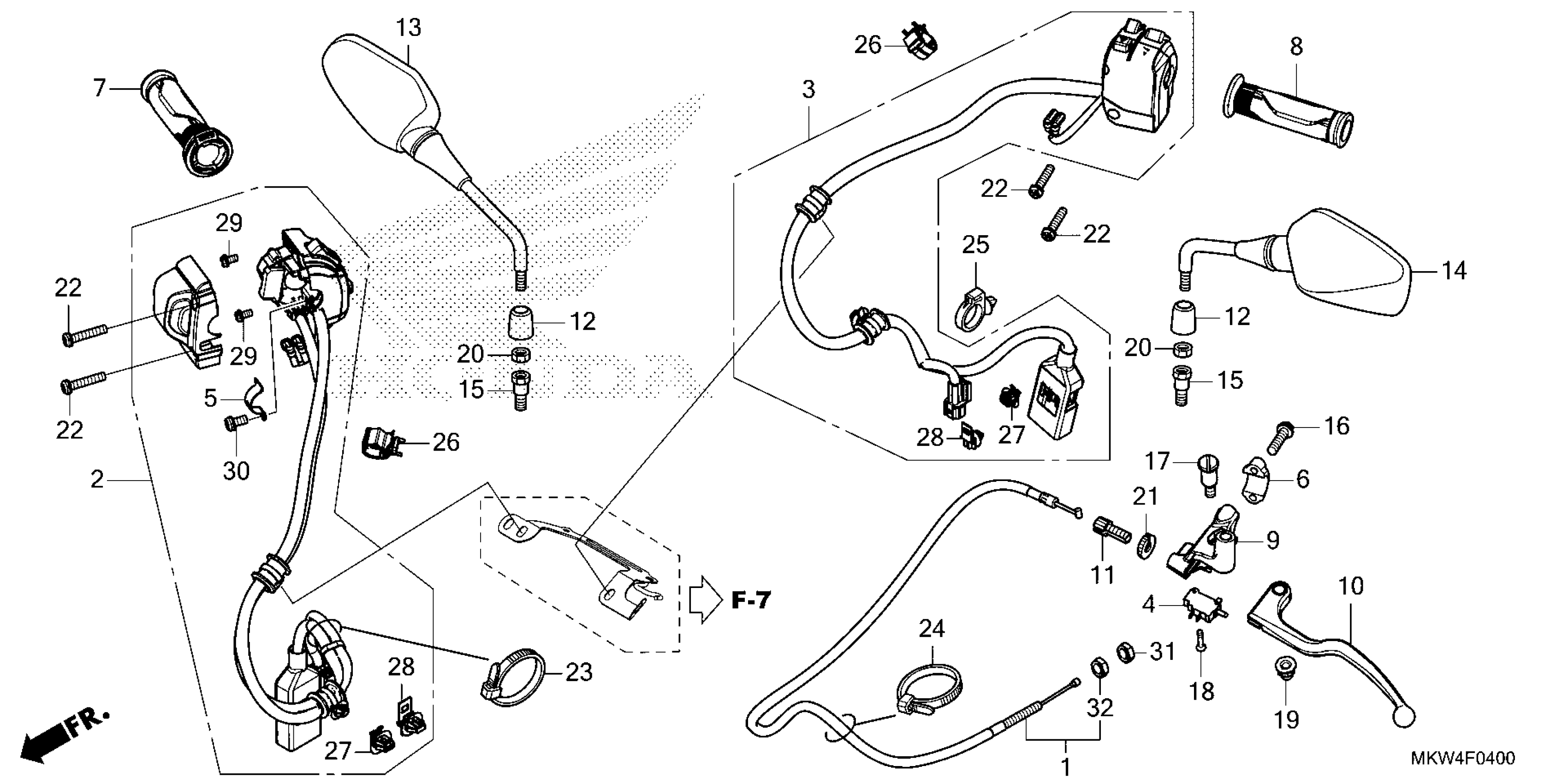

Honda NC750XAAC (22) MOTORCYCLE, JPN, VIN# JH2RH090-NK100001 TO JH2RH090-NK199999 SWITCH@CABLE@GRIP@MIRROR (1) Diagram

HOLDER, MASTER CYLINDER
