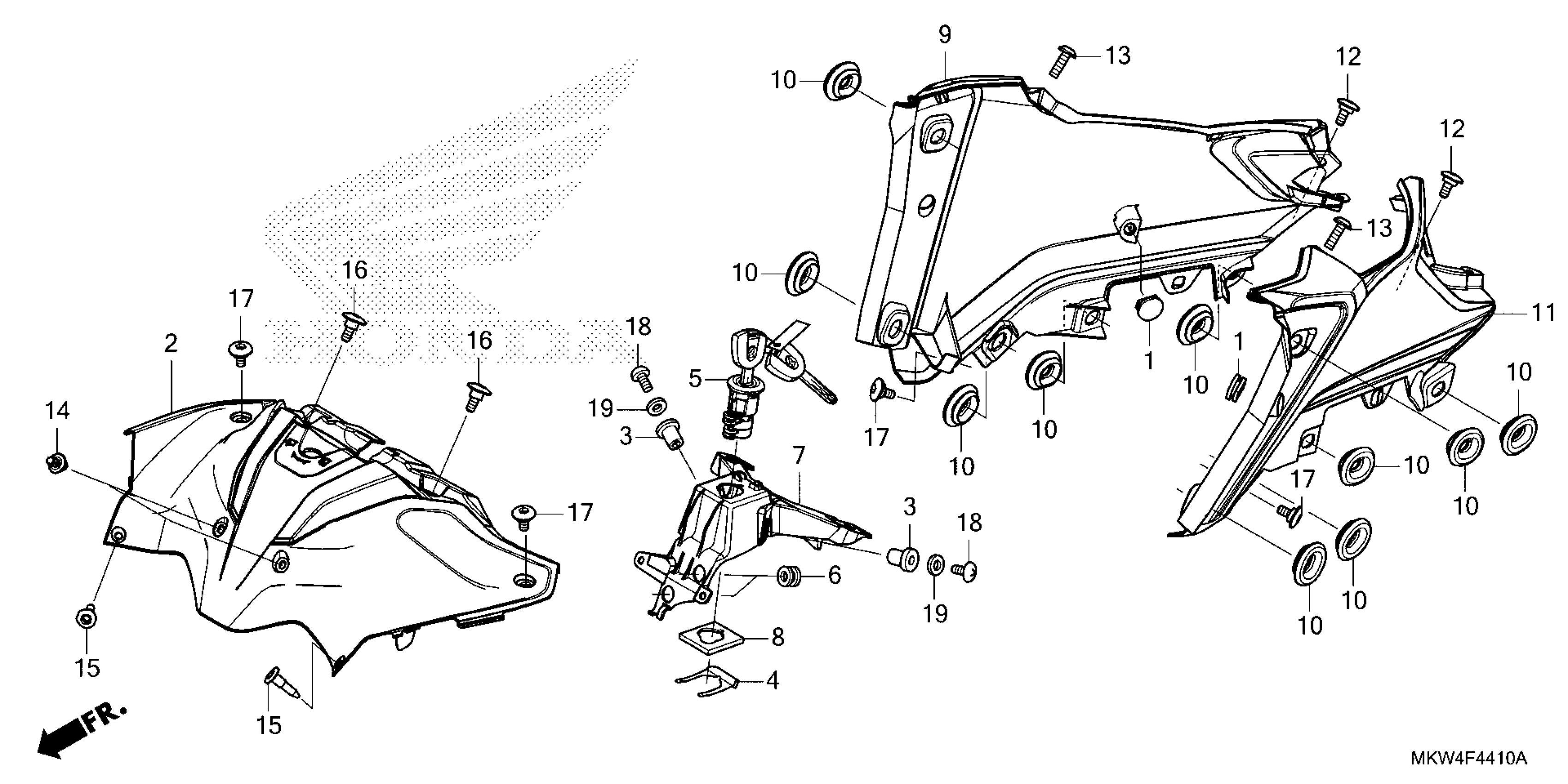

Honda NC750XAAC (22) MOTORCYCLE, JPN, VIN# JH2RH090-NK100001 TO JH2RH090-NK199999 CENTER COVER@SHELTER Diagram

PLUG, HOLE

50318-041-600

$2.01

COWL, CENTER

64141-MKW-D00

$52.74

NUT, WELL (5MM)

64528-KV3-000

$8.01

PLATE, LOCK KEY SETTING

75581-MGP-D60

$3.70

KEY, SEAT LOCK This part replaces 77239-MKA-D82.

77239-MKA-D83

$109.97

KEY, SEAT LOCK

77239-MKA-D83

$109.97

RUBBER, RR. FENDER CUSHION (FR.)

80101-165-000

$3.48

STAY, KEY LOCK

81331-MKW-D00

$12.06

PLATE, KEY CYLINDER

81335-MKA-N60

$4.99

SHELTER, R. SIDE (TYPE3)

83520-MKW-D00ZB

$263.65

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

Unavailable

SHELTER, L. SIDE (TYPE3)

83620-MKW-D00ZB

$263.65

SCREW, SPECIAL (5X14)

90101-MJJ-D30

$2.94

SCREW, TRUSS (5X16)

90103-MKW-D00

$1.86

RIVET, PUSH (6MM)

90116-K0A-E11

$1.17

CLIP, BUMPER SEAL

90116-SP0-003

$4.40

SCREW, SPECIAL (5X14)

90117-MJK-N20

$2.26

SCREW, SPECIAL (5X11)

90122-MJK-N20

$2.26

SCREW, PAN (5X12)

93500-05012-0H

$0.83

WASHER, PLAIN (5MM)

94101-05000

$0.90
