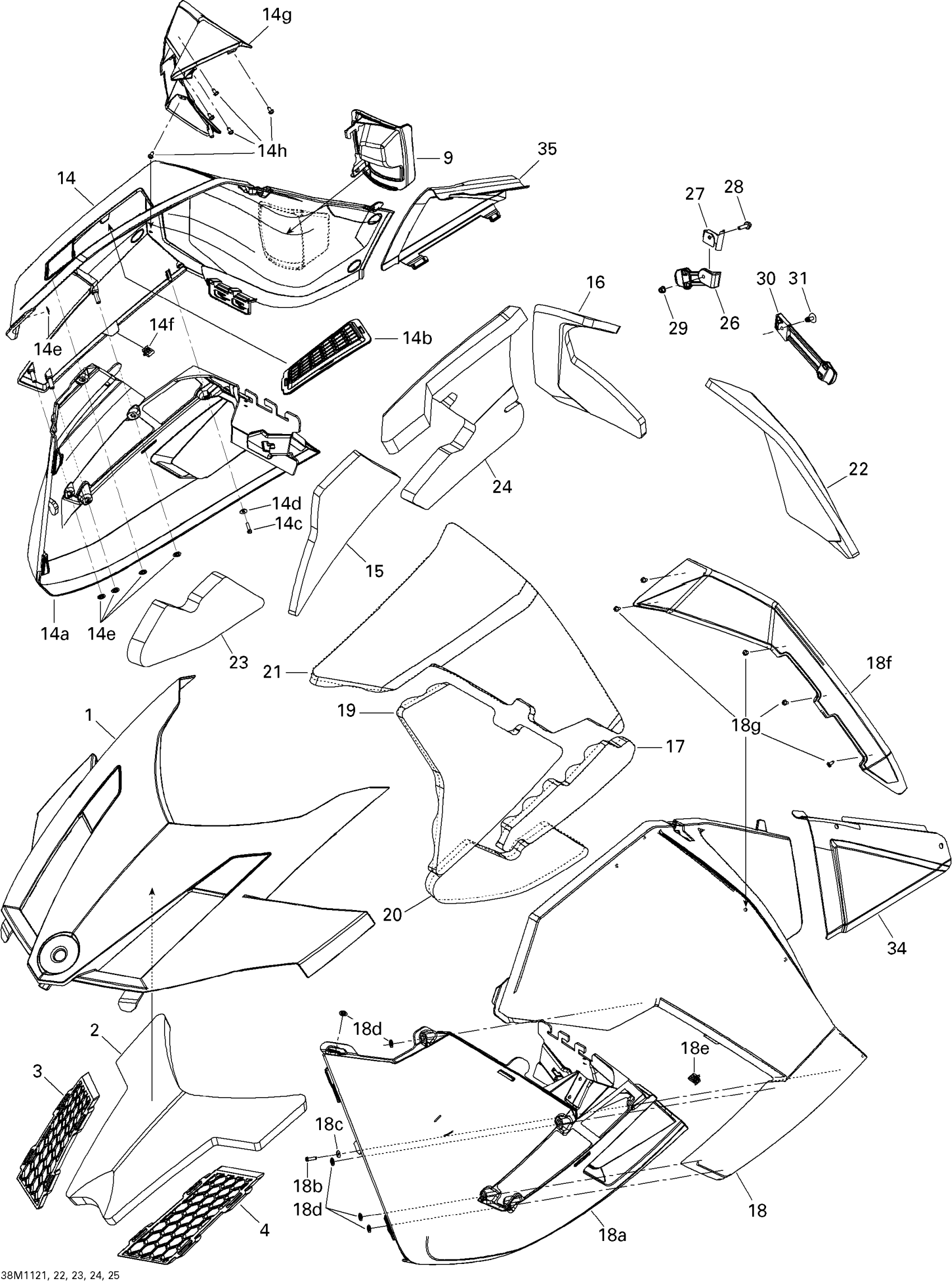

Ski-Doo MXZ X & TNT 1200 XR, 2011 Hood Diagram

#

Description
Price

1

Black Hood | Model-Black-Black

517303739

$223.82

1

HOOD, BRIGHT WHITE - Call your local BRP dealership

517304374

Unavailable

2

HOOD FOAM - Call your local BRP dealership

517304892

Unavailable

3

RH Hood Grille

517303805

$29.20

4

LH Hood Grille

517303804

$29.20

9

Black, RH Console

517304500

$27.66

14

Black RH Panel

517303748

Unavailable

14

PANEL_BODY RH B-229 - Call your local BRP dealership | MXZ X, Renegade X Model

517304366

Unavailable

14a

PANEL_BODY LWR R B-160 - Call your local BRP dealership

517304373

Unavailable

14b

PANEL GRILL - Call your local BRP dealership

517303801

Unavailable

14c

Hex. Flange Screw K40 X 16

241141660

Unavailable

14d

Flat Washer 4 mm, Stainless

234042600

Unavailable

14e

Push Nut

732610072

Unavailable

14f

Edge Clip

517302785

Unavailable

14g

Not Available As Spare Parts

XXX

Unavailable

14h

Not Available As Spare Parts

XXX

Unavailable

15

CENTRAL FOAM PANEL RH - Call your local BRP dealership

517304894

$23.82

16

REAR PANEL FOAM RH - Call your local BRP dealership

517304895

$23.82

17

CENTRAL FOAM PANEL LH - Call your local BRP dealership

517304896

Unavailable

18

Black LH Pannel | Model-Black-Black

517303753

Unavailable

18

PANEL_BODY LH B-229 - Call your local BRP dealership | MXZ X, Renegade X Model

517304355

Unavailable

18a

PANEL_BODY LWR L B-160 - Call your local BRP dealership

517304362

Unavailable

18b

Hex. Flange Screw K40 X 16

241141660

Unavailable

18c

Flat Washer 4 mm, Stainless

234042600

Unavailable

18d

Push Nut

732610072

Unavailable

18e

Edge Clip

517302785

Unavailable

18f

Not Available As Spare Parts

XXX

Unavailable

18g

Not Available As Spare Parts

XXX

Unavailable

19

LH CENTRAL PANEL FOAM - Call your local BRP dealership

517304898

Unavailable

20

LH LOWER PANEL FOAM - Call your local BRP dealership

517304900

Unavailable

21

LH UPPER PANEL FOAM - Call your local BRP dealership

517304903

Unavailable

22

LH REAR PANEL FOAM - Call your local BRP dealership

517304904

Unavailable

23

RH LOWER PANEL FOAM - Call your local BRP dealership

517304906

Unavailable

24

RH UPPER PANEL FOAM - Call your local BRP dealership

517304907

Unavailable

26

RH Panel Latch

517303612

Unavailable

27

Latch Support

517304221

Unavailable

28

Hex.Flange Screw M5 X 20

207652044

$1.56

29

Hex. Flange Elastic Nut M5

233251414

Unavailable

30

LH Panel Latch

517303808

Unavailable

31

Pop Rivet 3/16”

293150108

$1.23

34

Not Available As Spare Parts

XXX

Unavailable

35

Not Available As Spare Parts

XXX

Unavailable
