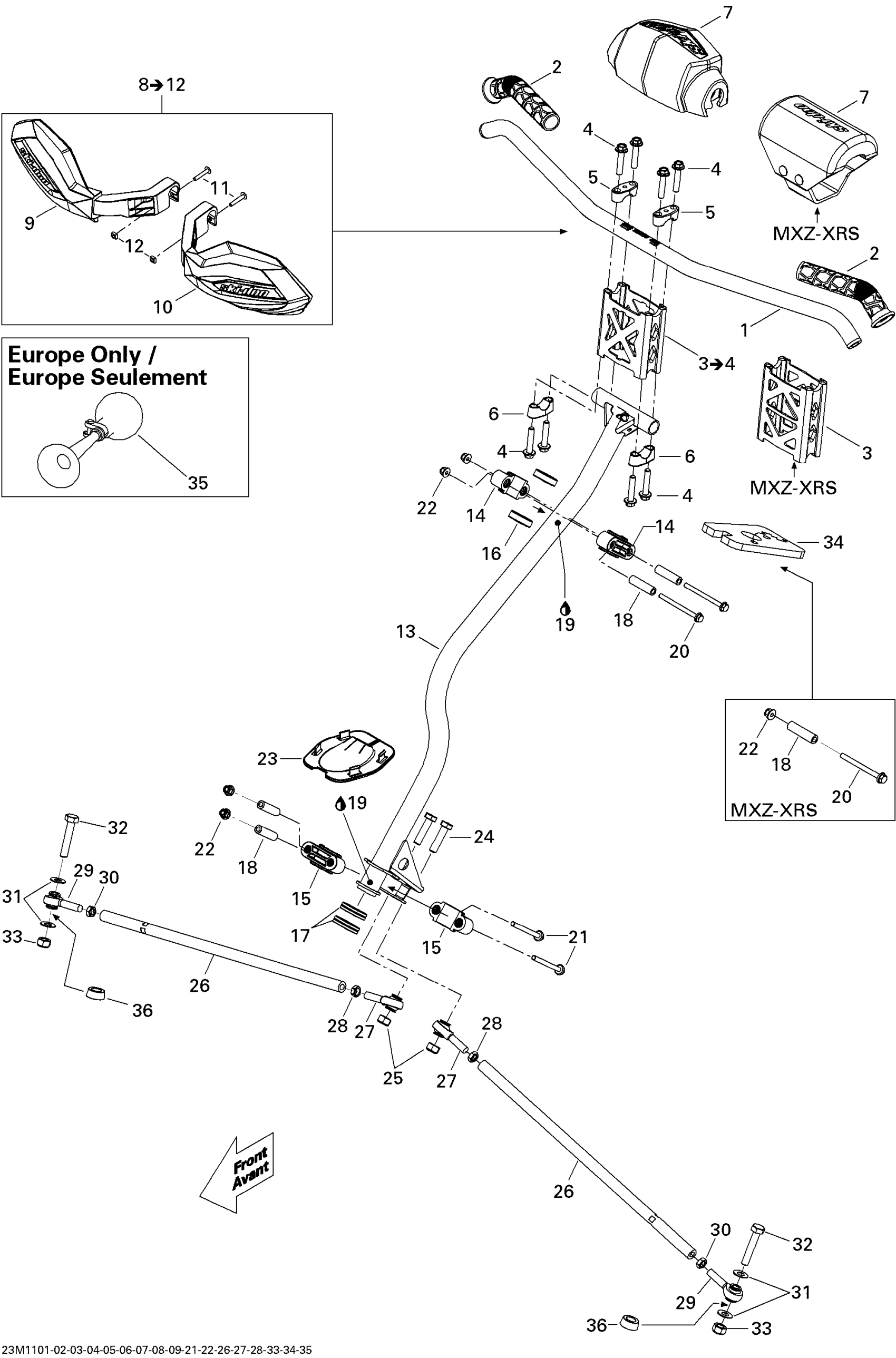

Ski-Doo MXZ X & TNT 1200 XR, 2011 Steering Diagram

#

Description
Price

1

Handle Bar, Non Dyed Clear Anodizing

506152709

$81.51

2

Grip

506152486

$14.71

3

Handlebar Extension Kit (115mm) This part replaces 506152571.

860200819

Unavailable

3

Not Available As Spare Parts

XXX

Unavailable

4

Hex. Flange Screw M8 x 40

250000285

$0.77

4

Not Available As Spare Parts

XXX

Unavailable

5

Steering Support | Includes 40 to 40a

506152751

$10.09

6

Steering Support | Includes 40 to 40a

506152751

$10.09

7

Steering Pad

506152192

Unavailable

7

Not Available As Spare Parts

XXX

Unavailable

8

Grey Wind Deflector Kit

860200712

Unavailable

8

Not Available As Spare Parts

XXX

Unavailable

8

Yellow Wind Deflector Kit

860200710

Unavailable

8

Not Available As Spare Parts

XXX

Unavailable

9

Grey Wind Deflector Kit

860200712

Unavailable

9

Not Available As Spare Parts

XXX

Unavailable

9

Yellow Wind Deflector Kit

860200710

Unavailable

9

Not Available As Spare Parts

XXX

Unavailable

10

Grey Wind Deflector Kit

860200712

Unavailable

10

Not Available As Spare Parts

XXX

Unavailable

10

Yellow Wind Deflector Kit

860200710

Unavailable

10

Not Available As Spare Parts

XXX

Unavailable

11

PHILLIPS SCREW M6 X 35 - Call your local BRP dealership

250000501

Unavailable

11

SOCKET SCREW HEAD FLANGE M6 X 35 - Call your local BRP dealership

250000406

Unavailable

12

SQUARE NUT M6 - Call your local BRP dealership

250000498

Unavailable

12

Square Nut M6

232862412

$1.18

13

Steering Column

506152964

$189.20

14

Upper Half-Housing

506152508

$7.40

15

Lower Half-Housing

506152217

$5.57

16

Upper Anti-Vibration Gasket

506152509

$4.52

17

Lower Vibration Ring

506152518

Unavailable

18

Housing Bushing

506152297

Unavailable

18

Not Available As Spare Parts

XXX

Unavailable

19

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

20

Hex. Flange Screw M6 X 70

207667056

$3.61

20

Not Available As Spare Parts

XXX

Unavailable

21

Hex. Flange Screw M6 X 70

207667044

Unavailable

22

Elastic Flange Nut M6 X 1.0

233261416

Unavailable

22

Not Available As Spare Parts

XXX

Unavailable

23

Plate

506152163

$10.23

24

Hex. Screw M10 X 1.5 X 40

207004034

$1.74

25

Elastic Stop Nut M10

232500416

$1.56

26

Tie-Rod Ass'y

506152496

$59.97

27

LH Thread Ball Joint

506152081

$39.97

28

LH Threaded Hex. Jam Nut M10

250100016

Unavailable

29

RH Threaded Ball Joint

506152019

$39.97

30

RH Threaded Hex. Jam Nut M10

732610010

Unavailable

31

Washer

506152194

$4.42

32

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

33

Elastic Stop Nut M10

232500416

$1.56

34

Bushing

506152521

$13.60

34

Not Available As Spare Parts

XXX

Unavailable

35

Not Available As Spare Parts

XXX

Unavailable

36

Not Available As Spare Parts

XXX

Unavailable
