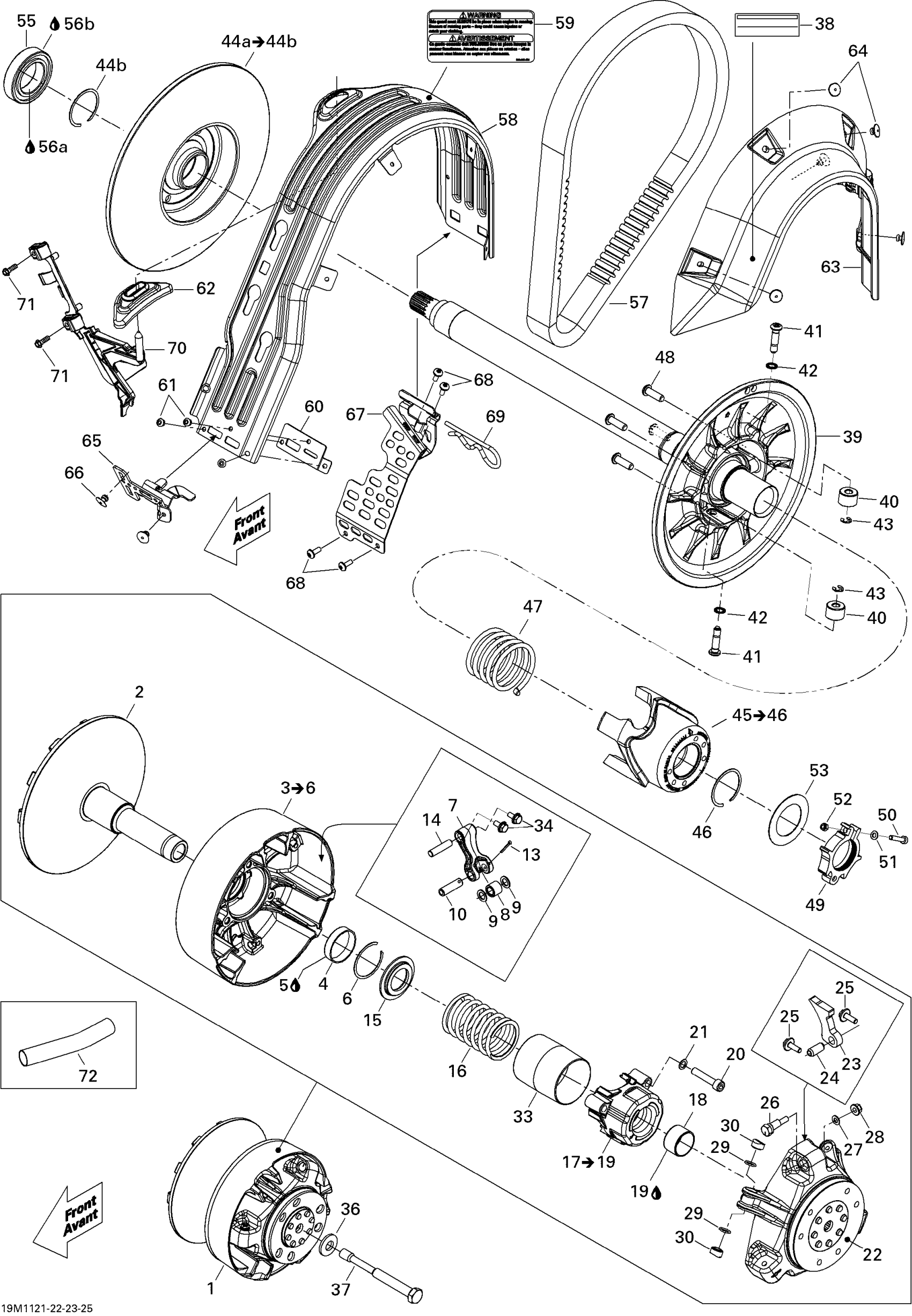

Ski-Doo MXZ X & TNT 1200 XR, 2011 Pulley System Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

FIXED FLANGE ASS'Y - Call your local BRP dealership

417223233

Unavailable

3

Sliding Flange Ass'y | Includes 10b to 10e

417222181

$198.43

4

Bushing

417222758

$20.74

5

Adhesive LOCTITE 680 - Call your local BRP dealership This part replaces 293800118.

219702967

Unavailable

6

Circlip

293370037

$3.02

7

Lever | Includes 10f to 10g

417222671

$32.28

8

Roller

417222947

$19.97

9

Stopper Washer

417004302

$15.99

10

Pin

417222594

$14.11

13

Cotter Pin

250400060

$1.60

14

Lever Axle

417223164

$4.25

15

Spring Seat

417222312

$8.28

16

SPRING, YELLOW/ORANGE - Call your local BRP dealership

414689700

Unavailable

17

Spring Cover Ass'y | Includes 10r to 10t

417007500

$46.12

18

Bushing

417009204

$16.12

19

Loctite 609, 10 ml

413703100

$24.58

20

Socket Head Screw M8 X 1.25 X 40

205084044

$2.80

21

Lock Washer 8 mm

250200009

Unavailable

22

GOVERNOR CUP ASS'Y - Call your local BRP dealership

417223273

Unavailable

23

Ramp 617

417223088

Unavailable

24

Spring Pin M10 X 22

250400050

$2.38

25

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$3.26

26

Calibration Screw

417223501

$27.66

27

Washer

417005600

$3.86

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

29

O-Ring

732401030

$0.95

30

Slider Shoe

417223652

Unavailable

33

Guard

417009205

$16.89

34

Hex. Flange Screw M6 X 12, Scotch Grip

250000412

$3.86

36

Spring Washer 14 mm

250200006

Unavailable

37

Drive Pulley Bolt

417120000

$63.82

38

Decal English

516005503

Unavailable

39

Fix Flange Ass'y | Includes 101 to 101e

417127362

$456.89

40

Pulley Roller

417127016

Unavailable

41

Pivot Stud

417127259

Unavailable

42

Lock Washer 8 mm

250200009

Unavailable

43

Circlip

414753500

$0.59

44a

Sliding Flange Ass'y | Includes 100b to 100b3

417127317

Unavailable

44b

Circlip

293370049

Unavailable

45

Cam Ass'y | Includes 100c to 100c2

417127327

Unavailable

46

Circlip

293370049

Unavailable

47

Release Spring

417127344

$43.82

48

Torx Screw M8 X 25, Scotch Grip

250000283

$1.61

49

Calibration Ass'y

415129604

Unavailable

50

Socket Screw M5 X 25

205052544

$1.34

51

Flat Washer M5

234051410

Unavailable

52

Elastic Stop Nut M5

232551414

Unavailable

53

Washer

417127155

Unavailable

55

Ball Bearing

504152574

Unavailable

56a

Loctite 609, 10 ml

413703100

$24.58

56b

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

57

Drive Belt

417300551

Unavailable

58

Belt Guard

417300382

$85.35

59

Safety Belt Guard Decal

516005509

Unavailable

60

Reinforcement

417300380

$5.17

61

Avex Rivet

390909200

Unavailable

62

Guide

417300381

$9.23

63

Side Protector

417300356

$13.25

64

Pop Rivet 3/16"

293150103

Unavailable

65

FRONT BELT GUARD BRACKET - Call your local BRP dealership

417300360

Unavailable

66

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

67

BELT GUARD BRACKET - Call your local BRP dealership

417300361

$16.89

68

Torx Screw M5 X 14

250000742

$1.20

69

Hair Pin

114045200

Unavailable

70

BELT GUARD BRACKET - Call your local BRP dealership

417300396

Unavailable

71

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

72

Tubing 25 MM 1000MM Long

219704402

Unavailable
