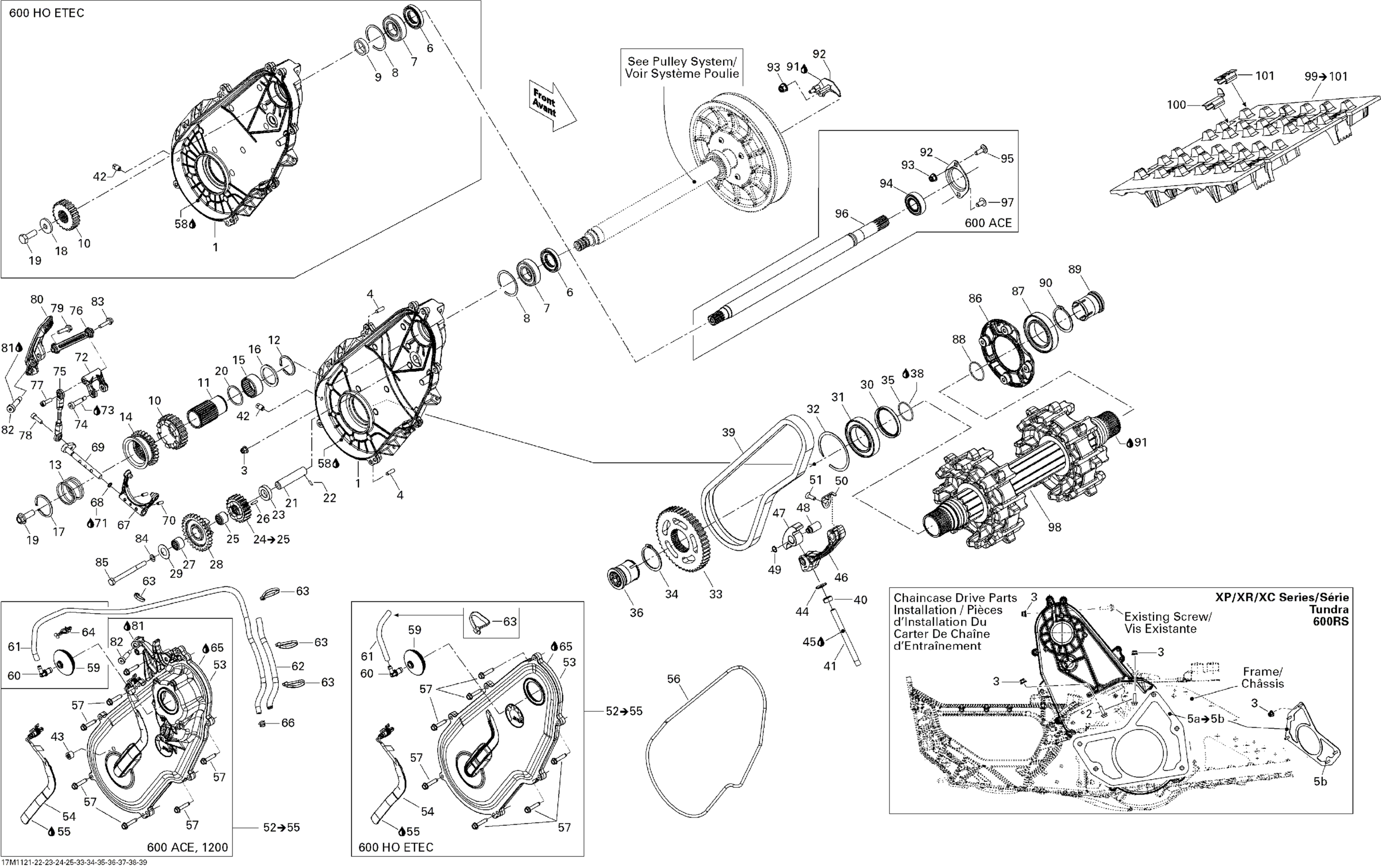

Ski-Doo MXZ X & TNT 1200 XR, 2011 Drive System Diagram

#

Description
Price

1

Chaincase

504153184

$321.51

1

Chaincase | Includes 10 to 10b

504153407

$321.51

2

Hex. Flange Screw M6 X 20

207662034

Unavailable

3

Flange Elastic Nut M6

233261434

Unavailable

4

Dowel Pin

250400048

$2.06

5a

Plate | Not Shown

518325816

$73.82

5b

Not Available As Spare Part - Friction Washer

Unavailable

6

Oil Seal

293200158

Unavailable

7

Ball Bearing

293350115

Unavailable

8

Circlip

504152576

Unavailable

9

Not Available As Spare Parts

XXX

Unavailable

10

Sprocket, 24 Teeth | Engine 900 ACE

504152961

Unavailable

11

Coupling

504152979

$69.97

12

Circlip

293370054

$7.31

13

Spring Release

504153179

$9.83

14

Slinding Gear, 27 Teeth

504152960

$101.51

15

Needle Bearing

293350063

$23.05

16

Washer

504152689

$6.26

17

Circlip

293370055

$7.31

18

Not Available As Spare Parts

XXX

Unavailable

19

Hex. Screw M10 X 1.5 X 30

207503044

Unavailable

20

Washer

504152862

$9.31

21

Reverse Shaft

504083100

$46.12

22

Rolled Pin M3 X 10

250400010

$1.85

23

Ring

504078700

$17.66

24

Sprock Ass'y, 19 Teeth | Includes 520 to 520a

581096900

$103.82

25

Needle Bearing

293350064

$22.28

26

Alignement Rod

570048600

Unavailable

27

Needle Bearing

293350064

$22.28

28

Sprocket, 29 Teeth

504152724

$175.35

29

Spacer

504077300

$6.26

30

Oil Seal

293200159

Unavailable

31

Ball Bearing

293350059

Unavailable

32

Circlip

504152582

Unavailable

33

Sprocket, 43 Teeth | TR15X129X1.5IR

504152726

Unavailable

34

Circlip

504152572

Unavailable

35

O-Ring

293300122

$2.06

36

Magnetic Cap

504152619

$23.05

38

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

39

Drive Chain, 104 Links

504152629

Unavailable

40

Hex. Nut M10 X 1.5

232006414

$1.11

41

Adjustment Screw

504152602

$9.62

42

Magnetic Plug 1/8 - 27 NPTF

504152636

$8.95

42

Magnetic Plug 1/8 - 27 NPTF

504152854

Unavailable

43

Hex. Countersunk Drain Plug

250500013

Unavailable

44

Bonded Washer

250200100

$1.74

45

SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership

413803300

Unavailable

46

Chaine Tensionner

504153431

Unavailable

47

Slider Chain

504152739

$67.66

48

Tensioner Axle

504152841

$14.65

49

Circlip

504152282

$3.11

50

Chain Slider

504153122

$15.35

51

Socket Head Screw M6 X 20, Scotch Grip

205862044

$3.38

52

Chaincase Cover Ass'y | Includes 1700 to 1700b

504153144

$339.20

52

Black Chaincase Cover Ass'y | Includes 1700 to 1700a

504153412

$321.51

53

Chaincase Cover

504153024

Unavailable

53

Chaincase Cover | Grand Touring SE

504153027

Unavailable

54

Rotation Sensor

504152896

$35.35

55

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

Unavailable

56

Tight Seal

293300130

$7.31

57

Hex. Flange Screw M6 X 1.0 X 30

250000360

$1.74

57

Hex. Flange Screw M6 X 30 | International

210263050

$1.63

58

SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership

413803300

Unavailable

59

Cap

504152860

Unavailable

60

Male Connector

414580700

Unavailable

61

Polyurethane Hose 10000Mm Long

219704410

Unavailable

62

Protector Tube

504153074

$15.35

63

Tie-Rap 180 mm

414115200

$0.09

64

ATTACHE *BRACKET - Call your local BRP dealership

291000714

Unavailable

65

SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership

413803300

Unavailable

66

Spring Clamp

414554800

$0.83

67

Fork Ass'y

504153432

$35.35

68

O-Ring

414484400

$7.31

69

Welded Axle Fork

504152956

$28.43

70

Spring Pin M5 X 16

250400045

$3.73

71

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

72

Lever

504153427

$28.43

73

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

74

Socket Head Screw M8 X 25, Scotch Grip

250000340

$6.18

75

Ball Joint

504152951

$44.58

76

Double Ball Joint

504152710

$51.51

77

Socket Head Screw M6 X 20, Scotch Grip

205562044

$1.74

78

Socket Head Screw M6 X 20, Scotch Grip

205562044

$1.74

79

Hex. Flange Screw M6 X 25

207562544

$1.39

80

Grip

504153082

Unavailable

81

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

82

Socket Head Screw M8 X 25, Scotch Grip

250000340

$6.18

83

Hex. Flange Screw M6 X 25

207562544

$1.39

84

Washer

504082900

Unavailable

85

Hex. Screw M8 X 90

207089044

$2.82

86

Retaining Ring

504153886

Unavailable

87

Ball Bearing

293350059

Unavailable

88

O-Ring

293300122

$2.06

89

Magnetic Cap

504152619

$23.05

90

Circlip

504152572

Unavailable

91

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

92

Bearing Housing Ass'y | Includes 2500 to 2500a

504153418

Unavailable

93

Hex. Flange Elastic Nut M8

233281414

Unavailable

94

Not Available As Spare Parts

XXX

Unavailable

95

Not Available As Spare Parts

XXX

Unavailable

96

Not Available As Spare Parts

XXX

Unavailable

97

Not Available As Spare Parts

XXX

Unavailable

98

Drive Axle Ass'y

504154054

Unavailable

99

Track Ass'y 15"X120"X1.2RS" | Includes 3200 to 3200b

504152606

Unavailable

99

Track Ass'y, 15X120X1.0

504152760

Unavailable

100

Track Guide | Track Width 16''

415129528

$3.12

101

Cleat

504152651

Unavailable
