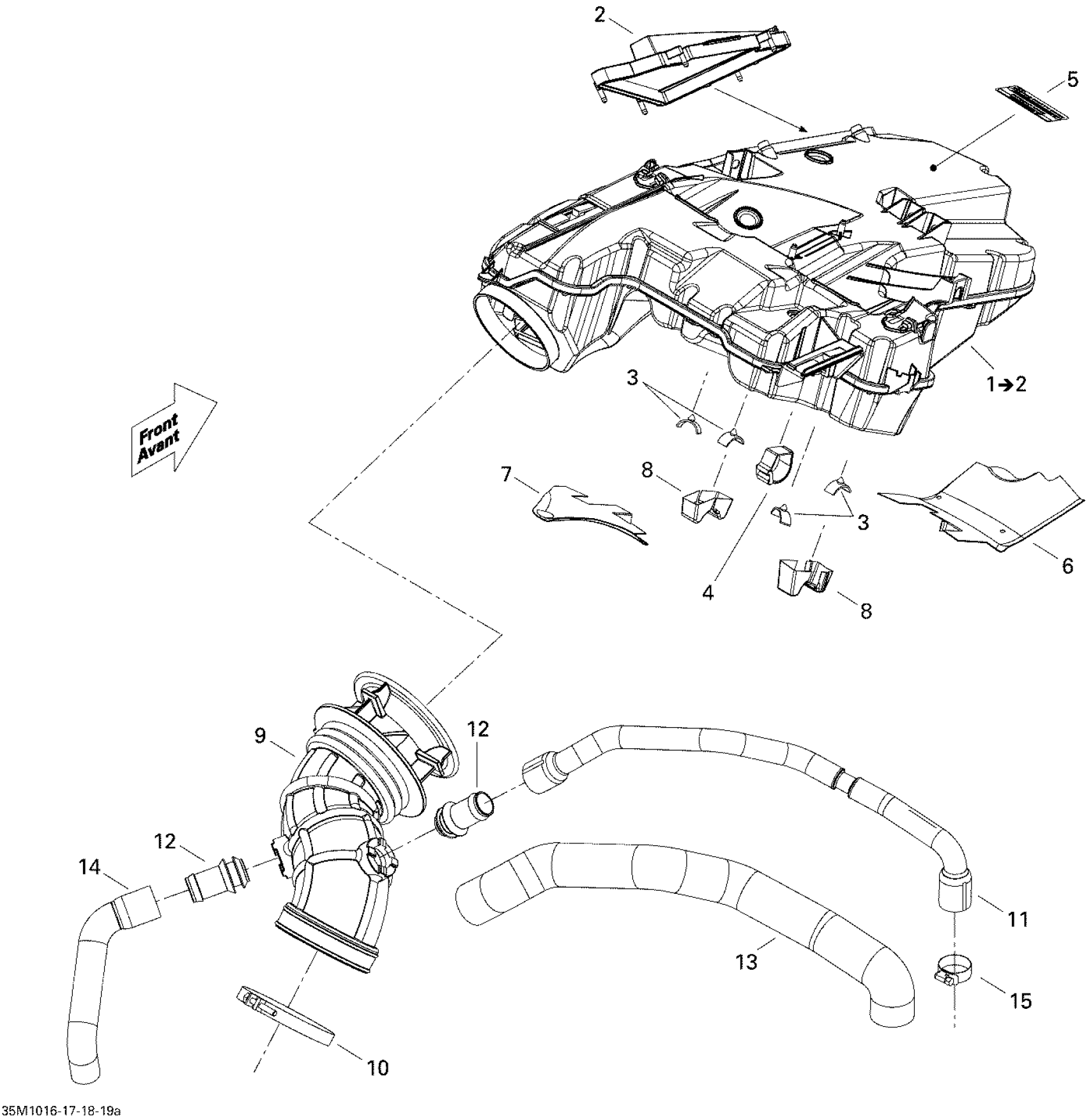

Ski-Doo MXZ X & TNT 1200 XR, 2011 Air Intake System Diagram

#

Description
Price

1

Secondary Chamber Ass'y

508000778

$191.51

2

Air Filter

508000546

Unavailable

3

Stopper

508000537

$7.35

4

Velcro Strip

508000820

$7.35

5

Caution Decal, Hot Parts

516004566

$8.69

6

Heat Shield

508000675

Unavailable

7

Heat Shield

508000676

Unavailable

8

Heat Shield

508000677

Unavailable

9

INTAKE HOSE - Call your local BRP dealership

508000549

Unavailable

10

Gemi Clamp

508000346

$9.31

11

VENT HOSE - Call your local BRP dealership

508000615

Unavailable

12

Breather Valve

273000234

$10.63

13

Insulating Tube

508000630

$15.35

14

FORMED HOSE - Call your local BRP dealership

508000616

$15.35

15

Tridon Gear Clamp

293650172

$2.68
