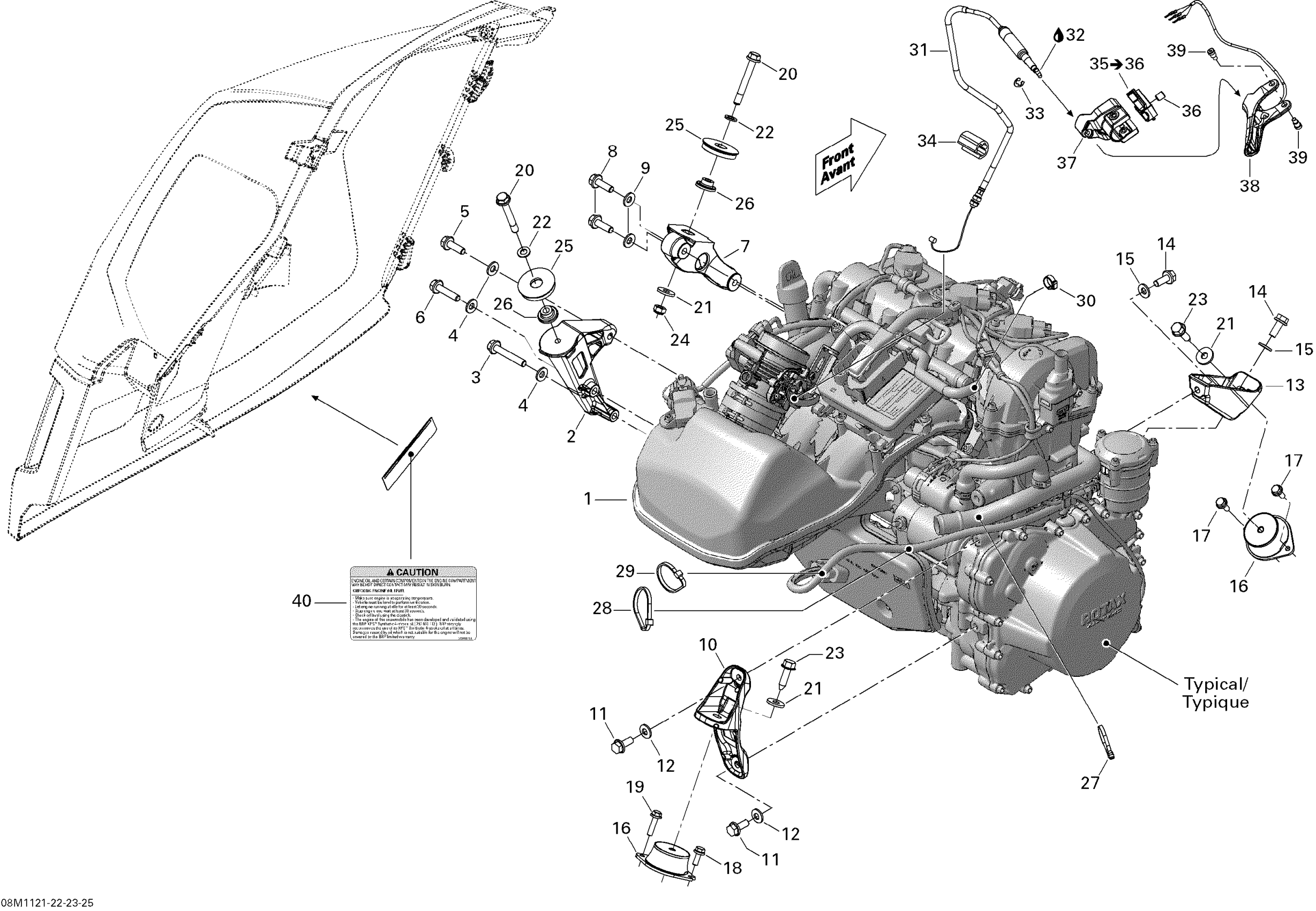

Ski-Doo MXZ X & TNT 1200 XR, 2011 Engine TNT Diagram

#

Description
Price

1

Long Block 1203

420120303

$5,769.99

1

REBUILT - Long Block1203

421000678

$5,769.99

2

Rear Support, PTO

512060591

$45.35

3

Hex. Flange Screw M8 X 50, Scotch Grip

207585086

$4.28

4

Conical Spring Washer M8

234281474

$1.25

5

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

6

Hex. Flange Screw M8 X 35

250000986

$1.74

7

Front Support, PTO

512060593

$28.43

8

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

9

Conical Spring Washer M8

234281474

$1.25

10

Rear Support, MAG

512060594

$29.97

11

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

12

Conical Spring Washer M8

234281474

$1.25

13

Front Support, MAG

512060596

$29.97

14

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

15

Conical Spring Washer M8

234281474

$1.25

16

Rubber Mount

512060729

$69.97

17

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

Unavailable

18

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

Unavailable

19

Hex. Flange Screw M6 X 25, Scotch Grip | Package-2X4, 4X4

207562534

$2.06

20

Hex. Flange Screw M8 X 60, Scotch Grip

207586044

Unavailable

21

Yellow, Washer

503183200

Unavailable

22

Flat Washer With Teflon 8 mm

250200008

Unavailable

23

Cone Screw, M8 X 30

250000257

$1.72

24

Hex. Elastic Stop Nut M8

232581414

Unavailable

25

Stopper This part replaces 512060244.

512061202

$18.43

26

Spacer

512060285

$17.66

27

Tie-Rap 180 mm

414115200

$0.09

28

Tie-Rap 180 mm

414115200

$0.09

29

Tie-Rap 180 mm

414115200

$0.09

30

Oetiker Clamp

293650046

Unavailable

31

THROTTLE CABLE - Call your local BRP dealership

512060673

$66.12

32

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

33

Circlip

414274500

Unavailable

34

Protector

512060313

$9.31

35

Upper Housing Ass'y

512060198

Unavailable

36

Socket Set Screw M8 X 10

414440800

$4.00

37

Lower Housing

512060860

Unavailable

38

Throttle Handle Ass'y

512061252

Unavailable

39

Flange Screw

732601143

$4.02

40

Caution Decal, Oil Level

516005521

Unavailable
