Partiron

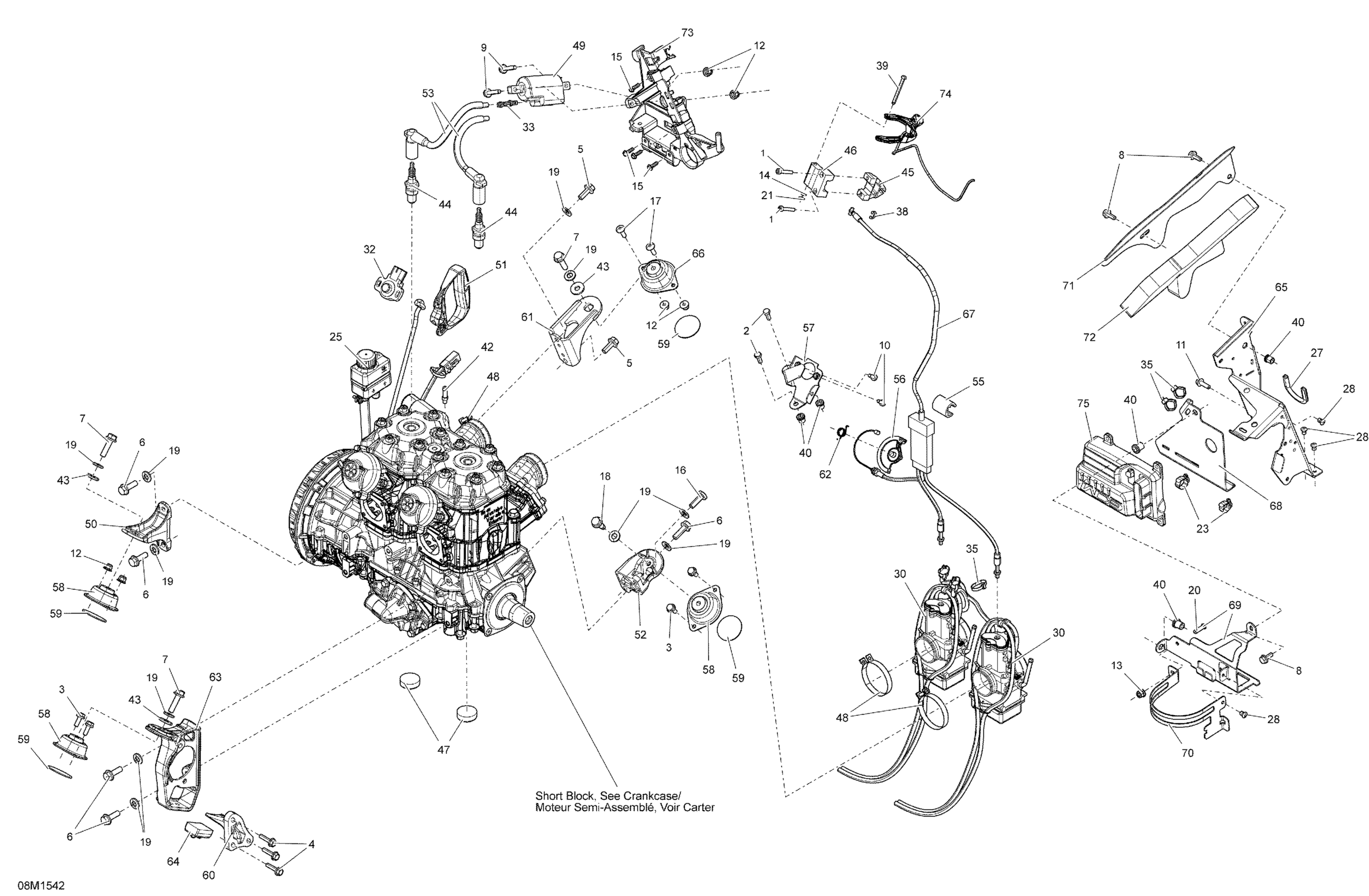

Ski-Doo MXZ X-RS 600HOE XS RS, 2015 Engine _08M1542 Diagram

#

Description
Price

20

Clinch Stud M6 X 20

250300027

$1.87

47

Stopper

512059738

$21.61

35

Tie-Rap 180 mm

414115200

$0.10

42

Hose Nipple

420924724

$14.10

57

TPS SUPPORT - Call your local BRP dealership

512060336

Unavailable

32

Sensor Ass'y

404162079

$349.22

56

CAP CAM - Call your local BRP dealership

512060335

Unavailable

62

CAM SPRING - Call your local BRP dealership

512060638

Unavailable

10

PHILLIPS SCREW M5 X 12 - Call your local BRP dealership

208651241

Unavailable

2

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

$0.79

40

Insert

293450275

$11.36

52

Rear Support, PTO

512060478

$29.07

16

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.81

19

Conical Spring Washer M8

250200146

$0.96

6

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.22

63

FRONT SUPPORT PTO - Call your local BRP dealership This part replaces 512060699.

512060712

Unavailable

61

REAR ENGINE SUPPORT, MAG - Call your local BRP dealership

512060568

Unavailable

5

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

50

FRONT SUPPORT, MAG - Call your local BRP dealership

512060108

Unavailable

59

RUBBER WASHER - Call your local BRP dealership

512060410

Unavailable

66

Rubber Mount

512060772

Unavailable

58

Rubber Mount

512060385

$55.19

3

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

17

Hex. Socket Screw M6 X 20

250000770

$1.87

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

7

Hex. Flange Screw M8 X 30, Scotch Grip

207583086

$4.12

43

Yellow, Washer

503183200

$2.91

18

Hex. Flange Screw M8 X 1.25 X 25

250000796

$2.00

64

Stopper

512060766

$9.03

60

Stopper Support

512060576

$27.58

4

Hex. Flange Screw M6 X 25

207562544

$1.60

30

Carburator, TMX39-1Z1

403138818

Unavailable

48

Gemi Clamp

512059835

$10.21

67

Throttle Cable

512060895

$106.69

38

Circlip

414274500

$0.85

55

Protector

512060313

$9.03

46

UPPER HOUSING - Call your local BRP dealership

512059538

Unavailable

45

Lower Housing

512059537

$70.87

74

Handle Ass'y

512060960

$88.78

1

Socket Screw M5 X 25

205052544

$1.54

39

Lever Pin

414438700

$10.81

14

Flat Washer M5, Stainless

234051600

$0.73

21

Circlip

293370050

$0.45

49

Ignition Coil

512059968

$48.48

53

Cable

512060291

$46.99

33

Plastic Clip, Spark Plug Wire

410914600

$5.30

9

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

73

COILS SUPPORT - Call your local BRP dealership

512060925

Unavailable

15

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.37

75

Calibrated Module

512061115

Unavailable

68

ECM SUPPORT - Call your local BRP dealership

512060904

Unavailable

69

SUPPORT - Call your local BRP dealership

512060905

Unavailable

8

Hex. Flange Screw M6 X 16

207661644

$0.70

23

Tridon Gear Clamp

293650172

$3.07

25

Tie Wrap 368 mm

293750008

$0.97

70

STRAP - Call your local BRP dealership

512060916

Unavailable

28

Avex Rivet

390909200

$0.28

13

Elastic Flange Nut M6 X 1.0

233261416

$2.00

44

Spark Plug NGK BR9ECS-5

512059552

$11.13

51

Starter Grip

512060136

$14.10

65

GRIP SUPPORT - Call your local BRP dealership

512060770

Unavailable

11

Hexagonal Head Screw

210262050

$2.00

27

TRIM 30000MM LONG - Call your local BRP dealership

219704405

Unavailable

71

NOISE SHIELD - Call your local BRP dealership

512060917

Unavailable

72

NOISE FOAM - Call your local BRP dealership

512060918

Unavailable
