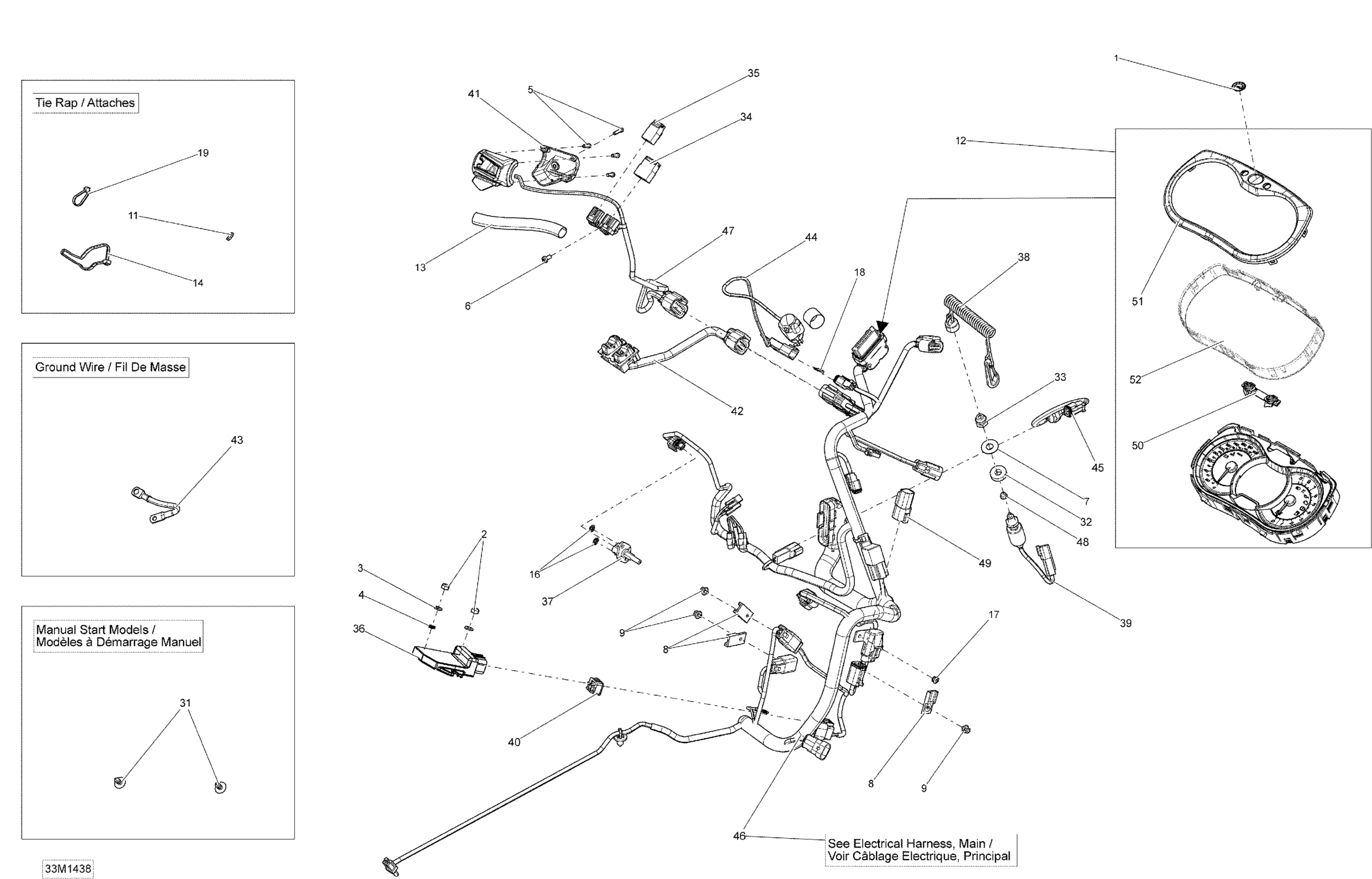

Ski-Doo MXZ X 600RS XS RS, 2014 Electrical System _33M1438 Diagram

#

Description
Price

1

BRP Logo 20MM x 2MM | XTP

516006224

Unavailable

1

BRP Logo 20MM x 2MM | XTP

516006224

Unavailable

2

Elastic Stop Nut M6

232561414

Unavailable

2

Elastic Stop Nut M6

232561414

Unavailable

3

Flat Washer 6 mm

234061410

Unavailable

3

Flat Washer 6 mm

234061410

Unavailable

4

External Serrated Lock Washer 6 mm

234461608

Unavailable

4

External Serrated Lock Washer 6 mm

234461608

Unavailable

5

Torx Screw

250000671

Unavailable

5

Torx Screw

250000671

Unavailable

6

Pan Screw Forming, 7500C

250000690

Unavailable

6

Pan Screw Forming, 7500C

250000690

Unavailable

7

Washer

250200032

Unavailable

7

Washer

250200032

Unavailable

8

Clip

270000141

$8.33

8

Clip

270000141

$8.33

9

Avdel Rivet 3/16"

293150037

$0.47

9

Avdel Rivet 3/16"

293150037

$0.47

11

Tie Wrap 94 mm | 4X4

293750001

$0.83

11

Tie Wrap 94 mm | 4X4

293750001

$0.83

12

Speedometer | Includes 10 to 10c

515177910

$615.35

12

Speedometer | Includes 10 to 10c

515177910

$615.35

13

PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership

219704418

Unavailable

13

PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership

219704418

Unavailable

14

Tie Wrap 368 mm

293750008

$0.85

14

Tie Wrap 368 mm

293750008

$0.85

16

Push Nut

389804300

$0.43

16

Push Nut

389804300

$0.43

17

Pop Rivet 3/16"

390402200

$0.26

17

Pop Rivet 3/16"

390402200

$0.26

18

Male Lock, 2 Circuits

409207500

$3.02

18

Male Lock, 2 Circuits

409207500

$3.02

19

Tie-Rap 180 mm

414115200

$0.09

19

Tie-Rap 180 mm

414115200

$0.09

31

Black, Dart

414644300

$0.78

31

Black, Dart

414644300

$0.78

32

WASHER - Call your local BRP dealership

510004418

Unavailable

32

WASHER - Call your local BRP dealership

510004418

Unavailable

33

Switch Nut

515145900

$10.83

33

Switch Nut

515145900

$10.83

34

Male Terminal Housing, 6 Circuits

515175662

Unavailable

34

Male Terminal Housing, 6 Circuits

515175662

Unavailable

35

Male Terminal Housing, 4 Circuits

515175846

$8.57

35

Male Terminal Housing, 4 Circuits

515175846

$8.57

36

Voltage Regulator

515176364

Unavailable

36

Voltage Regulator

515176364

Unavailable

37

Air Temperature Sensor

515176366

$18.43

37

Air Temperature Sensor

515176366

$18.43

38

Cap Ass'Y This part replaces 515176462.

515178292

Unavailable

38

Cap Ass'Y This part replaces 515176462.

515178292

Unavailable

39

Brake Switch

515175653

$15.57

39

Brake Switch

515175653

$15.57

40

Lock

515176681

Unavailable

40

Lock

515176681

Unavailable

41

LH Switch Housing Plate

515177149

$16.89

41

LH Switch Housing Plate

515177149

$16.89

42

Double Switch Module

515177154

$75.35

42

Double Switch Module

515177154

$75.35

43

Ground Wire

515177289

Unavailable

43

Ground Wire

515177289

Unavailable

44

Kill Switch

515177454

Unavailable

44

Kill Switch

515177454

Unavailable

45

Temperature Sensor This part replaces 420664508.

420664509

Unavailable

45

Temperature Sensor This part replaces 420664508.

420664509

Unavailable

46

Main Harness | Includes 1 To WMS

515177567

Unavailable

46

Main Harness | Includes 1 To WMS

515177567

Unavailable

47

LH Switch Housing

515178305

$236.12

47

LH Switch Housing

515178305

$236.12

48

Plunger Cap

570151100

$10.14

48

Plunger Cap

570151100

$10.14

49

Housing

710003006

$7.24

49

Housing

710003006

$7.24

50

Speedometer Button | XTP

415129355

Unavailable

50

Speedometer Button | XTP

415129355

Unavailable

51

Gauge Ring

415129348

Unavailable

51

Gauge Ring

415129348

Unavailable

52

Lens | XTP

415129349

Unavailable

52

Lens | XTP

415129349

Unavailable
