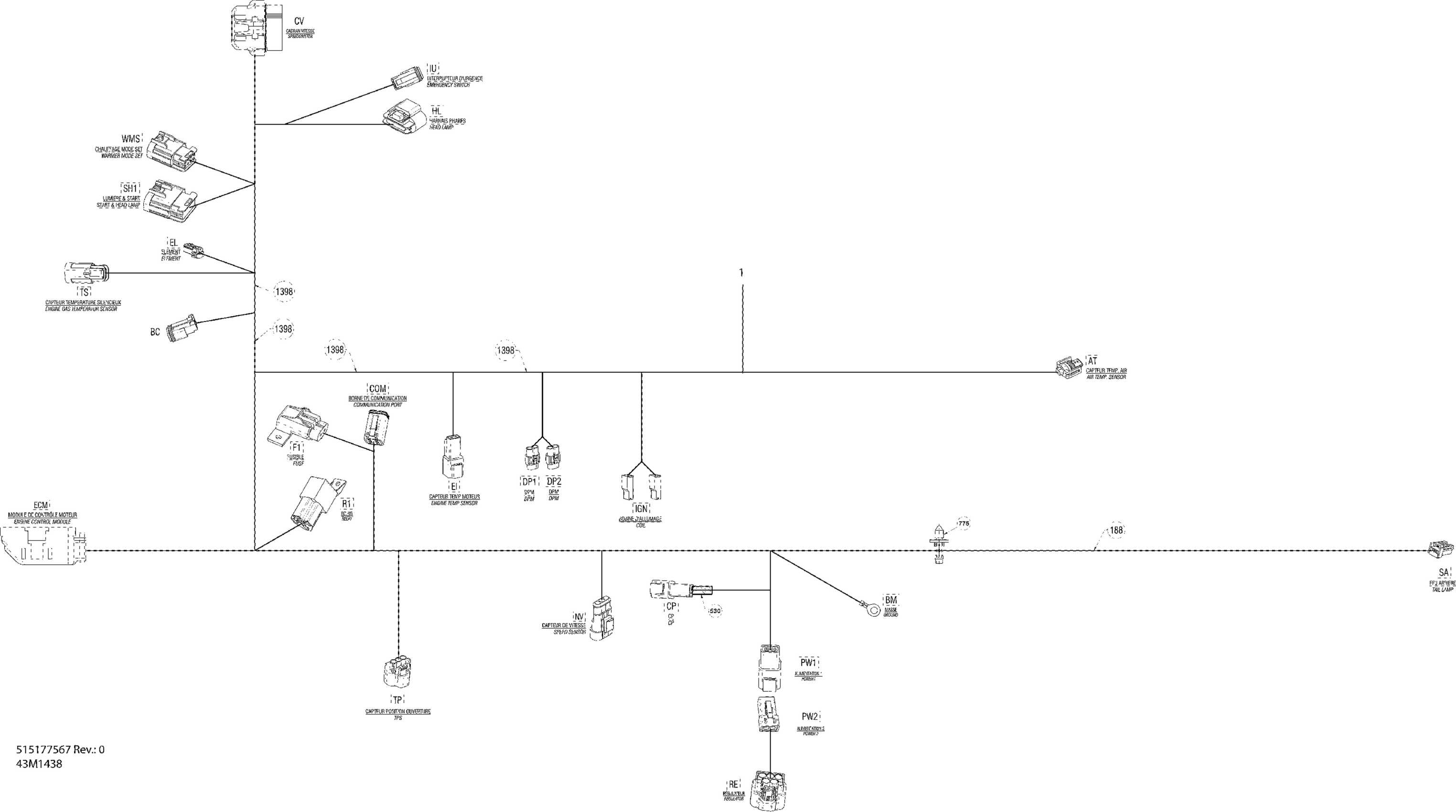

Ski-Doo MXZ X 600RS XS RS, 2014 Electrical Harness _43M1438 Diagram

#

Description
Price

1

Main Harness | Includes 1 To WMS

515177567

Unavailable

1

Main Harness | Includes 1 To WMS

515177567

Unavailable

188

Tubing 12 mm

409902000

Unavailable

188

Tubing 12 mm

409902000

Unavailable

775

Mount Dart

293730040

$0.86

775

Mount Dart

293730040

$0.86

1398

PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership

219704418

Unavailable

1398

PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership

219704418

Unavailable

AT

Female Terminal Housing

515176890

$11.14

AT

Female Terminal Housing

515176890

$11.14

AT

Wire Seal

710001163

Unavailable

AT

Wire Seal

710001163

Unavailable

AT

Female Terminal

710001164

Unavailable

AT

Female Terminal

710001164

Unavailable

BC

Female Terminal Housing, 2 Circuits

515175670

Unavailable

BC

Female Terminal Housing, 2 Circuits

515175670

Unavailable

BC

Female Lock, 2 Circuits

515175675

Unavailable

BC

Female Lock, 2 Circuits

515175675

Unavailable

BC

Female Terminal

278000632

Unavailable

BC

Female Terminal

278000632

Unavailable

BM

Open Barrel

278000992

$1.79

BM

Open Barrel

278000992

$1.79

COM

Housing, 6 Circuits

278002896

Unavailable

COM

Housing, 6 Circuits

278002896

Unavailable

COM

Male Wedge, 6 Circuits

515175678

Unavailable

COM

Male Wedge, 6 Circuits

515175678

Unavailable

COM

Sealing Cap

293000052

Unavailable

COM

Sealing Cap

293000052

Unavailable

COM

Female Terminal

278001665

Unavailable

COM

Female Terminal

278001665

Unavailable

CP

Male Terminal Housing, 2 Circuits

515175665

$8.02

CP

Male Terminal Housing, 2 Circuits

515175665

$8.02

CP

Male Lock, 2 Circuits

409207500

$3.02

CP

Male Lock, 2 Circuits

409207500

$3.02

CP

Male Terminal

278000631

$4.12

CP

Male Terminal

278000631

$4.12

CV

Female Housing, 24 Circuits

515175801

Unavailable

CV

Female Housing, 24 Circuits

515175801

Unavailable

CV

Retainer Block

515175802

Unavailable

CV

Retainer Block

515175802

Unavailable

CV

Plug

515175812

Unavailable

CV

Plug

515175812

Unavailable

CV

Female Housing

710000399

Unavailable

CV

Female Housing

710000399

Unavailable

CV

Wire Seal

515175803

Unavailable

CV

Wire Seal

515175803

Unavailable

CV

Female Terminal

515175806

$0.81

CV

Female Terminal

515175806

$0.81

CV

Female Terminal

710001131

Unavailable

CV

Female Terminal

710001131

Unavailable

DP1

Seal

409012300

Unavailable

DP1

Seal

409012300

Unavailable

DP1

Female Terminal

409012100

Unavailable

DP1

Female Terminal

409012100

Unavailable

DP2

Seal

409012300

Unavailable

DP2

Seal

409012300

Unavailable

DP2

Female Terminal

409012100

Unavailable

DP2

Female Terminal

409012100

Unavailable

ECM

Female Terminal Housing, 36 Circuits

515176223

$12.97

ECM

Female Terminal Housing, 36 Circuits

515176223

$12.97

ECM

Terminal Support

515176224

$15.02

ECM

Terminal Support

515176224

$15.02

ECM

Plug

515175812

Unavailable

ECM

Plug

515175812

Unavailable

ECM

Female Housing

515176221

$14.94

ECM

Female Housing

515176221

$14.94

ECM

Wire Seal

515176222

$14.97

ECM

Wire Seal

515176222

$14.97

ECM

Female Terminal

710001131

Unavailable

ECM

Female Terminal

710001131

Unavailable

ECM

Female Terminal

515175806

$0.81

ECM

Female Terminal

515175806

$0.81

ECM

Tie-Rap 180 mm

414115200

$0.09

ECM

Tie-Rap 180 mm

414115200

$0.09

EI

Male Terminal Housing, 2 Circuits

515175665

$8.02

EI

Male Terminal Housing, 2 Circuits

515175665

$8.02

EI

Male Lock, 2 Circuits

409207500

$3.02

EI

Male Lock, 2 Circuits

409207500

$3.02

EI

Male Terminal

278000631

$4.12

EI

Male Terminal

278000631

$4.12

EL

Female Housing, 2 Circuits

515175658

Unavailable

EL

Female Housing, 2 Circuits

515175658

Unavailable

EL

Female Terminal

515175231

Unavailable

EL

Female Terminal

515175231

Unavailable

F1

Fuse Holder Cap

278001326

$6.03

F1

Fuse Holder Cap

278001326

$6.03

F1

Cushion

278000805

$3.22

F1

Cushion

278000805

$3.22

F1

Fuse, 20 Amperes

409003900

$3.22

F1

Fuse, 20 Amperes

409003900

$3.22

F1

Fuse Holder

278001325

$8.57

F1

Fuse Holder

278001325

$8.57

F1

Female Terminal

710000113

Unavailable

F1

Female Terminal

710000113

Unavailable

HL

Female Housing

515177296

$10.88

HL

Female Housing

515177296

$10.88

HL

Seal Wire

710001332

Unavailable

HL

Seal Wire

710001332

Unavailable

HL

Terminal

710001228

$2.72

HL

Terminal

710001228

$2.72

IGN

Female Terminal Housing, 1 Circuit

409010400

$7.48

IGN

Female Terminal Housing, 1 Circuit

409010400

$7.48

IGN

Female Terminal

409010100

$5.46

IGN

Female Terminal

409010100

$5.46

IU

Female Terminal Housing, 2 Circuits

515175670

Unavailable

IU

Female Terminal Housing, 2 Circuits

515175670

Unavailable

IU

Female Lock, 2 Circuits

515175675

Unavailable

IU

Female Lock, 2 Circuits

515175675

Unavailable

IU

Female Terminal

278000632

Unavailable

IU

Female Terminal

278000632

Unavailable

NV

Clip

710000992

$4.00

NV

Clip

710000992

$4.00

NV

Housing

710000568

Unavailable

NV

Housing

710000568

Unavailable

NV

Wire Seal

515176621

Unavailable

NV

Wire Seal

515176621

Unavailable

NV

Male Terminal

515176164

Unavailable

NV

Male Terminal

515176164

Unavailable

PW1

Mâle Terminal Housing, 2 Circuits

278001674

$29.97

PW1

Mâle Terminal Housing, 2 Circuits

278001674

$29.97

PW1

Male Lock, 2 Circuits

278001672

$3.02

PW1

Male Lock, 2 Circuits

278001672

$3.02

PW1

Male Terminal

515175568

$7.48

PW1

Male Terminal

515175568

$7.48

PW2

Female Terminal Housing, 2 Circuits

278001673

$23.05

PW2

Female Terminal Housing, 2 Circuits

278001673

$23.05

PW2

Female Lock, 2 Circuits

278001671

$3.22

PW2

Female Lock, 2 Circuits

278001671

$3.22

PW2

Female Terminal

515175567

$6.03

PW2

Female Terminal

515175567

$6.03

R1

Female Housing, 5 Circuits

409209900

$8.98

R1

Female Housing, 5 Circuits

409209900

$8.98

R1

Relay | DS 650 X

710010053

Unavailable

R1

Relay | DS 650 X

710010053

Unavailable

R1

Female Terminal

561503100

Unavailable

R1

Female Terminal

561503100

Unavailable

R1

Female Terminal

561503100

Unavailable

R1

Female Terminal

561503100

Unavailable

R1

Tie Wrap 142 mm

293750002

Unavailable

R1

Tie Wrap 142 mm

293750002

Unavailable

RE

Connector

515176530

Unavailable

RE

Connector

515176530

Unavailable

RE

Seal

515176594

Unavailable

RE

Seal

515176594

Unavailable

RE

Terminal

515176531

Unavailable

RE

Terminal

515176531

Unavailable

SA

Female Housing, 3 Circuits

515175495

$15.35

SA

Female Housing, 3 Circuits

515175495

$15.35

SA

Female Terminal

515175231

Unavailable

SA

Female Terminal

515175231

Unavailable

SH1

Housing, Packard

710001929

$10.83

SH1

Housing, Packard

710001929

$10.83

SH1

Cap

710001225

Unavailable

SH1

Cap

710001225

Unavailable

SH1

Seal Wire

710001332

Unavailable

SH1

Seal Wire

710001332

Unavailable

SH1

Seal

710001233

Unavailable

SH1

Seal

710001233

Unavailable

SH1

Terminal

710001224

$3.02

SH1

Terminal

710001224

$3.02

SH1

Terminal

710001223

$3.02

SH1

Terminal

710001223

$3.02

TP

Female Terminal Housing, 3 Circuits

515176176

$15.35

TP

Female Terminal Housing, 3 Circuits

515176176

$15.35

TP

Wire Seal

710000402

$4.42

TP

Wire Seal

710000402

$4.42

TP

Female Terminal

710000335

$1.80

TP

Female Terminal

710000335

$1.80

TS

Housing Connector

515177298

$10.14

TS

Housing Connector

515177298

$10.14

TS

Seal

710001233

Unavailable

TS

Seal

710001233

Unavailable

TS

Terminal

710001224

$3.02

TS

Terminal

710001224

$3.02

WMS

Housing

710001927

$8.57

WMS

Housing

710001927

$8.57

WMS

Cap

710001225

Unavailable

WMS

Cap

710001225

Unavailable

WMS

Seal

710001233

Unavailable

WMS

Seal

710001233

Unavailable

WMS

Terminal

710001224

$3.02

WMS

Terminal

710001224

$3.02
