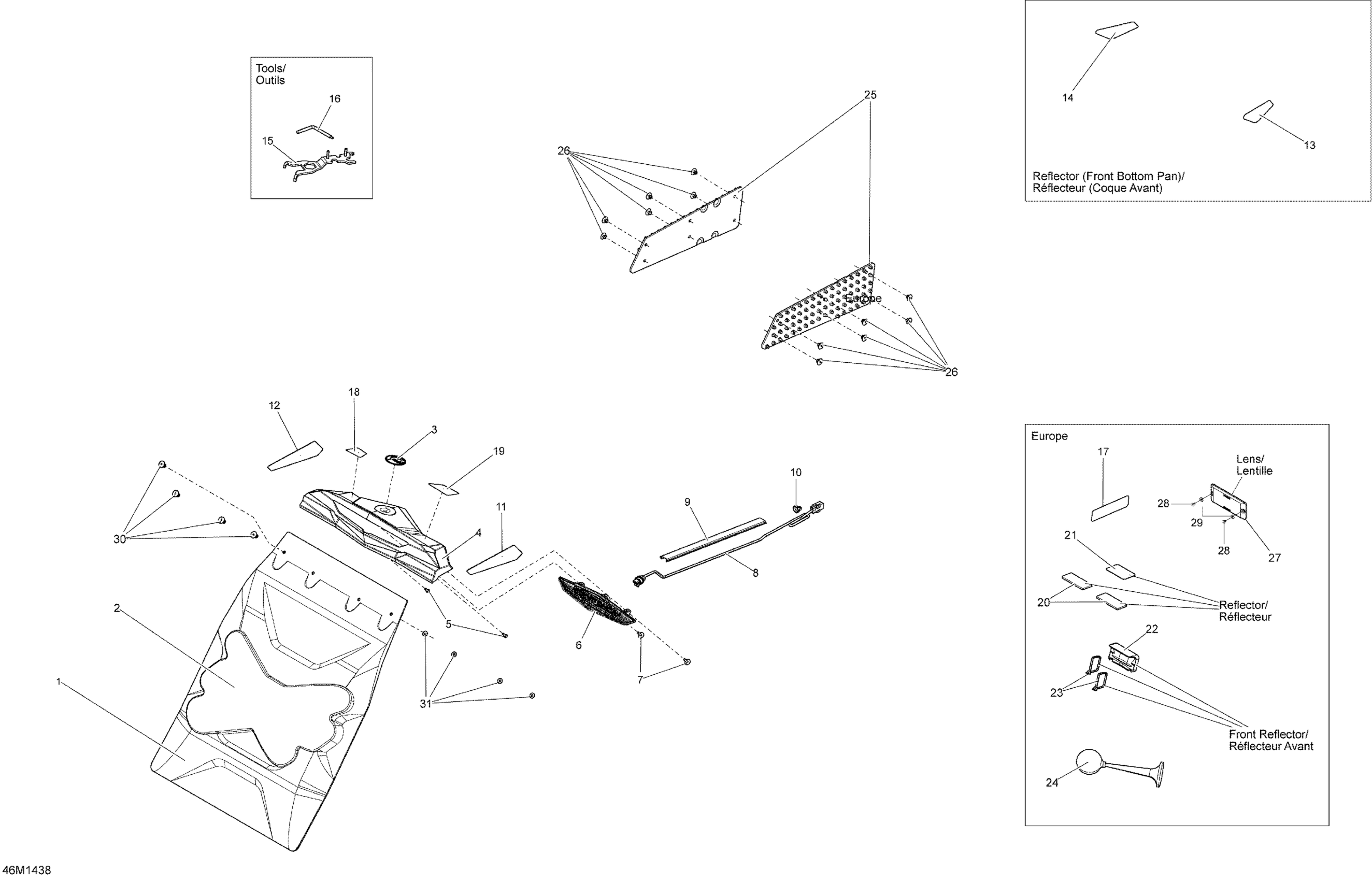

Ski-Doo MXZ X 600RS XS RS, 2014 Utilities _46M1438 Diagram

#

Description
Price

1

Snow Flap

520001441

Unavailable

2

Decal X

516003647

Unavailable

3

BRP Logo 48 mm

219903947

$14.88

4

Deep Black, Light Fairing

511000810

Unavailable

5

Hex. Screw K40 X 13

241141340

Unavailable

6

Rear Light

520001143

$76.89

7

Screw M4 X 16

250000725

Unavailable

8

Wiring Harness Ass'y | Package-137"

515177275

$19.20

9

Radiator Trim

520000829

$20.74

10

Tie Wrap 142 mm

293750002

Unavailable

11

Red Rh Rear Reflector

520001239

Unavailable

11

Yellow, RH Rear Reflector

520001241

Unavailable

12

Red, LH Rear Reflector

520001238

Unavailable

12

Yellow, LH Rear Reflector

520001240

Unavailable

13

Yellow, RH Front Reflector

520001237

$19.97

14

Yellow, LH Front Reflector

520001236

$19.97

15

WRENCH SUSPENSION - Call your local BRP dealership

520000988

$14.98

16

Belt Installation Tool

417127044

Unavailable

17

CE DECAL - Call your local BRP dealership | Model-Europe

516005873

Unavailable

18

WARNING DECAL, SAFETY - Call your local BRP dealership

516005057

Unavailable

19

Warning Decal, Safety

516005058

Unavailable

20

Amber, Reflector

520000271

$18.43

21

White, Reflector

415037900

$19.20

22

Deep Black, Reflector Support

520000871

$5.29

23

Tie Rap 371 mm

293750018

$0.46

24

Horn

549011291

$35.35

25

Grip Plate Kit

860200164

Unavailable

26

Pop Rivet 3/16"

293150103

Unavailable

27

LENS - Call your local BRP dealership | Europe

510004350

Unavailable

28

Pop Rivet 3/16"

293150008

Unavailable

29

Washer

517124300

Unavailable

30

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

31

Flat Washer

517225900

$0.17
