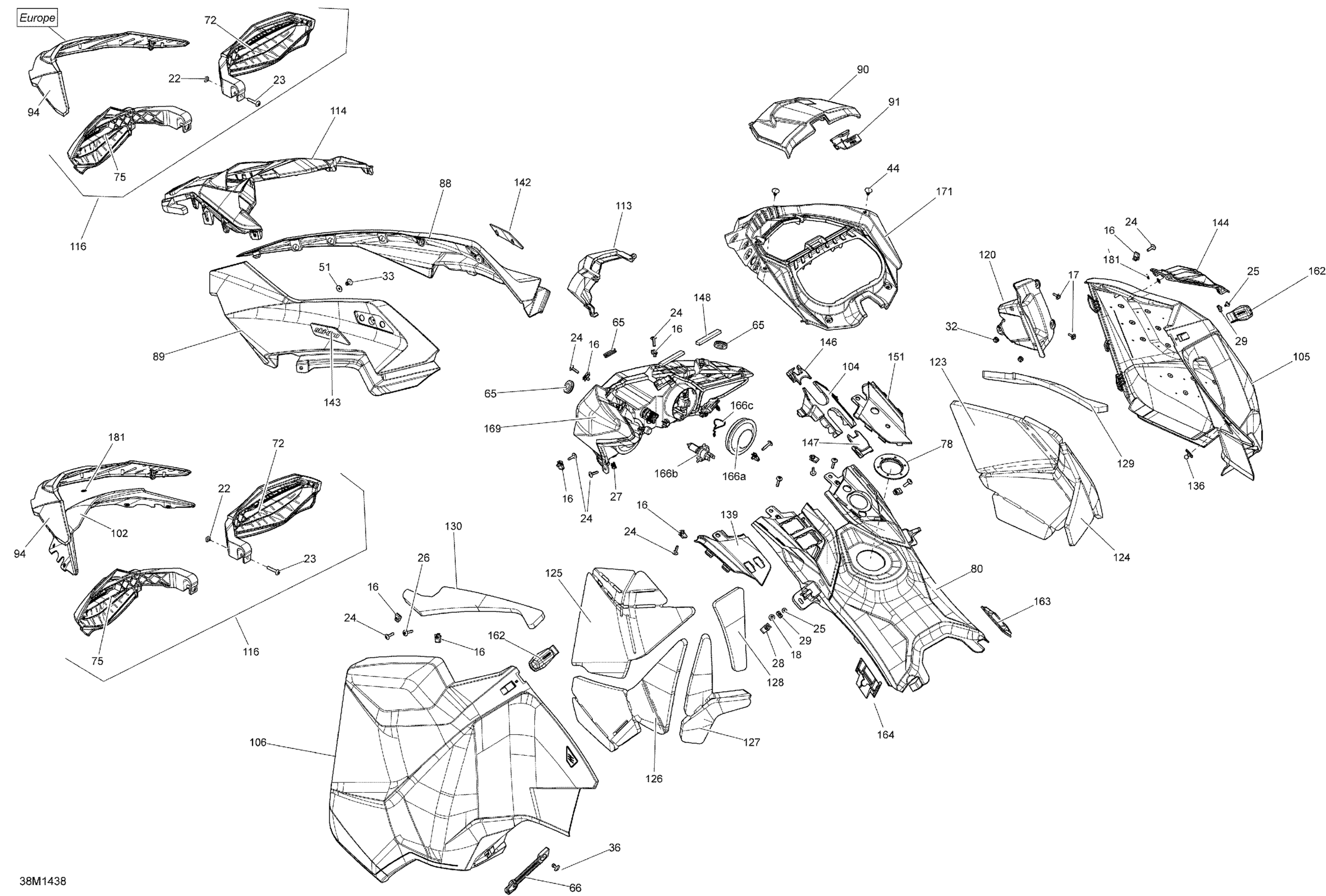

Ski-Doo MXZ X 600RS XS RS, 2014 Hood, Windshield And Console _38M1438 Diagram

#

Description
Price

16

Panel Nut M5 X 0.8

250000958

Unavailable

17

Screw M4 X 16

250000725

Unavailable

18

Torx Screw M6 X 20

250000722

Unavailable

22

SQUARE NUT M6 - Call your local BRP dealership

250000498

Unavailable

23

PHILLIPS SCREW M6 X 35 - Call your local BRP dealership

250000501

Unavailable

24

Torx Screw M5 X 20

250000528

Unavailable

25

Hexalob Screw M4 X 10

250000565

$1.74

26

Torx Screw M5 X 26

250000587

Unavailable

27

Jack Nut M5

250100035

$6.03

28

Panel Nut M6 X 1.0

250100198

Unavailable

29

Weld Nut M4

250100156

$4.25

32

Black, Cap

275500241

Unavailable

33

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

36

Pop Rivet 3/16”

293150108

$1.23

44

Black, Dart

414644300

$0.78

51

Washer

517124300

Unavailable

65

Grommet

517303756

Unavailable

66

LH Panel Latch

517303808

Unavailable

72

YELLOW RH WIND DEFLECTOR - Call your local BRP dealership

517305042

Unavailable

75

YELLOW LH WIND DEFLECTOR - Call your local BRP dealership

517305043

Unavailable

78

Console Nut

517304518

Unavailable

80

CONSOLE-REAR - Call your local BRP dealership This part replaces 517304797.

517305556

Unavailable

88

Black Mat - RH Hood | Package X T-3 Model Mat Black

517305370

$192.28

89

Black Mat - LH Hood | Package X T-3 Model Mat Black

517305371

$192.28

90

Deep Black, Upper Storage Access Cover

517304912

$15.35

91

Cover Latch

517304917

$10.23

94

Enjo Pare-Brise*Windshield Tri | Package X This part replaces 517304922.

860200937

Unavailable

102

Pare-Brise Ub *Windshield | Package XRS This part replaces 517304931.

860200901

Unavailable

104

Deep Black, Console Support

517304970

$11.45

105

Deep Black - RH Panel | Manual Start

517305508

$286.12

106

Deep Black LH Panel

517305510

$189.20

113

Headlight Trim Cap

517305010

$35.35

114

Yellow Center Hood

517305382

Unavailable

116

Yellow Wind Deflector Kit

860200710

Unavailable

120

Deep Black RH Console | Package XRS

517305060

$33.82

123

RH Upper Panel Foam

517305082

$40.74

124

RH Rear Panel Foam

517305085

$18.43

125

LH Upper Panel Foam

517305086

$18.43

126

LH CENTER PANEL FOAM - Call your local BRP dealership

517305087

Unavailable

127

LH Lower Panel Foam

517305088

$18.43

128

LH REAR PANEL FOAM - Call your local BRP dealership

517305089

Unavailable

129

RH Rear Hood Foam

517305090

$12.69

130

LH Rear Hood Foam

517305091

$12.69

136

Pin

517305734

$3.40

139

Deep Black, LH Front Console

517305128

$29.97

142

RH Hood Filler Plate, SKI-DOO | Package XRS

517305137

$12.45

143

LH Hood Filler Plate, SKI-DOO | Package XRS

517305138

Unavailable

144

RH Panel Vent Grid Deep Black

517305140

$29.20

146

Deep Black, Support Console Cap

517305148

$4.66

147

Deep Black, Support Console Cap

517305147

$4.57

148

Seal Joint

517305157

$2.28

151

DEEP BLACK RH FRONT CONSOLE - Call your local BRP dealership

517305183

Unavailable

162

Panel Latch

517305279

$14.85

163

RH Panel Clip Ass'y, Black | Includes 1700 to 1700a

517305724

$12.69

164

LH Panel Clip Ass'y, Black | Includes 1710 to 1710a

517305722

$12.69

169

Headlamp

517306180

$233.05

171

Deep Black, Indicator Support

517305512

$61.51

181

Push Nut

732610072

Unavailable

181

Push Nut

250100158

$1.74

166a

Cap

219400070

Unavailable

166b

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

Unavailable

166c

Holder Bracket

219800282

$5.49
