Partiron

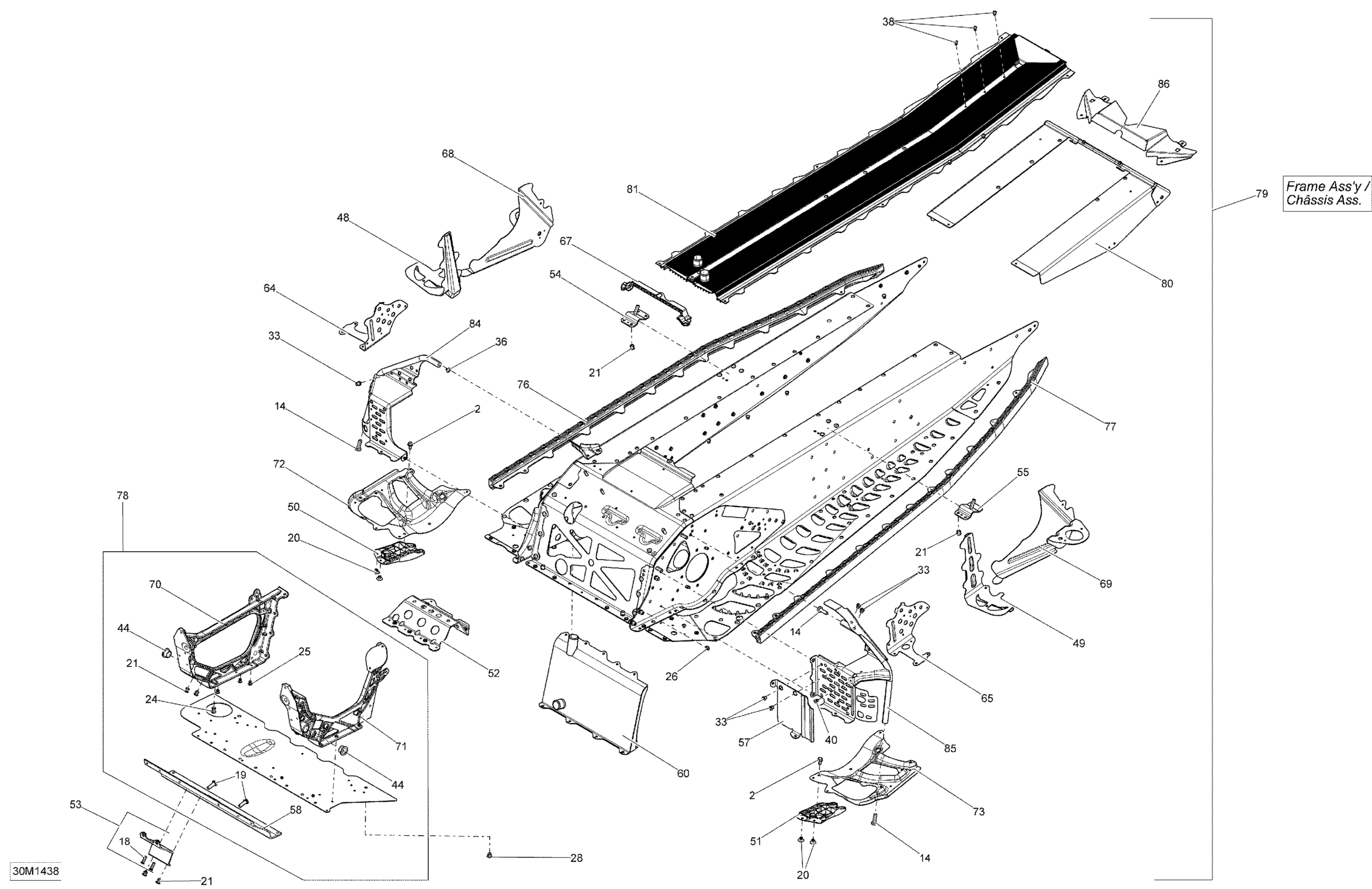

Ski-Doo MXZ X 600RS XS RS, 2014 Frame _30M1438 Diagram

#

Description
Price

2

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

Unavailable

14

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.70

18

Clinch Stud M6 X 20

250300027

$1.92

19

Clinch Stud

250300038

Unavailable

20

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

21

Hemlock Rivet, 6.5 mm

293150119

$4.00

24

Hemlock Rivet 6.5 mm

293150120

$7.23

25

Stavex Rivet

293150144

Unavailable

26

Henrob Rivet

293150146

Unavailable

28

Hemlock Rivet, 6.4 mm

293150174

$6.43

33

Insert M5 X 0.8

293450268

Unavailable

36

Full Moon Dart 5 mm

293730042

Unavailable

38

Avex Rivet

390909100

$0.29

40

Avex Rivet

390909200

Unavailable

44

Leg Cushion

505073317

Unavailable

48

RH REINFORCEMENT - Call your local BRP dealership

518325747

Unavailable

49

LH REINFORCEMENT - Call your local BRP dealership

518325748

Unavailable

50

RH Deflector, Black Polypropylene

518325782

Unavailable

51

LH Deflector, Black Polypropylene

518325783

Unavailable

52

LINK CROSS - Call your local BRP dealership

518325796

Unavailable

53

MAG Engine Support | Includes 10a to 10a1

518325943

$26.12

54

RH Rear Base

518325973

Unavailable

55

LH Rear Base | Includes 10v to 10x

518325974

Unavailable

57

PLATE - Call your local BRP dealership

518326188

Unavailable

58

Front Member

518326198

$59.97

60

Front Radiator | Includes 10b to 10b2

518326485

Unavailable

64

RH Front Suspension Retainer | Package Iron Dog

518326616

$39.97

65

LH Front Suspension Retainer | Package Iron Dog

518326617

$39.97

67

Seal

518326656

Unavailable

68

RH REAR SUPPORT - Call your local BRP dealership

518326766

Unavailable

69

LH REAR SUPPORT - Call your local BRP dealership

518326767

Unavailable

70

RH Member

518326795

Unavailable

71

LH Member

518326796

$210.74

72

RH Reinforcement, Running Board

518326937

$25.35

73

LH Reinforcement, Running Board

518326938

$25.35

76

RH ROLLER - Call your local BRP dealership

518327187

Unavailable

77

LH ROLLER - Call your local BRP dealership

518327188

Unavailable

78

E Module | Includes 10n to 10at

518327567

Unavailable

79

FRAME ASS'Y - Call your local BRP dealership

415129852

Unavailable

80

REAR CAP - Call your local BRP dealership

518327624

Unavailable

81

REAR WELDED RADIATOR - Call your local BRP dealership

518327632

Unavailable

84

RH Stirup

518327841

$166.12

85

LH Stirup

518327937

$166.12

86

REAR LIGHT PLATE - Call your local BRP dealership

518328263

Unavailable
