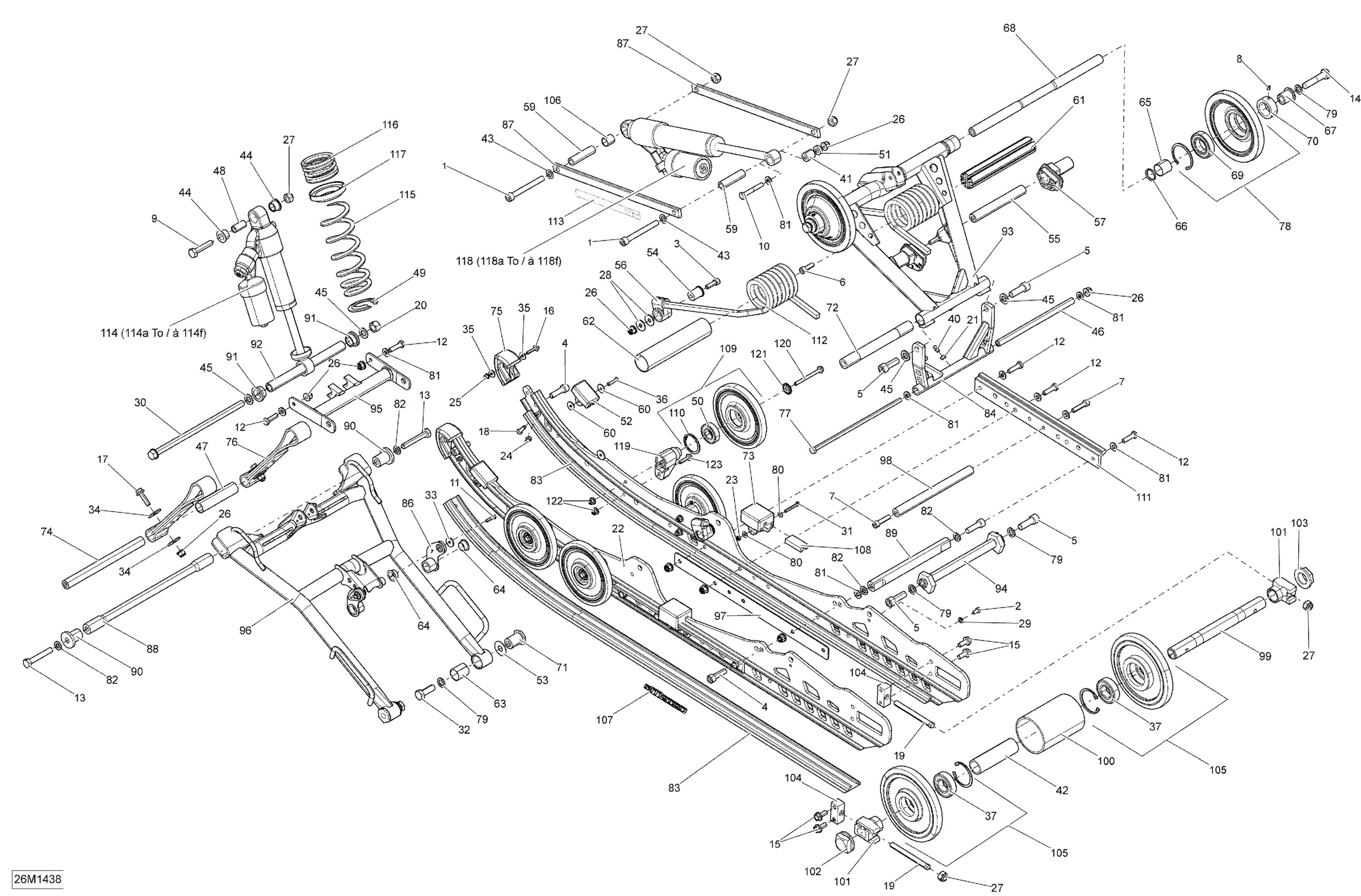

Ski-Doo MXZ X 600RS XS RS, 2014 Rear Suspension _26M1438 Diagram
#
3
Socket Screw M8 X 25
205082554
Unavailable
4
Socket Head Screw M10 X 35
205503554
Unavailable
6
Socket Head Screw M8 X 25, Scotch Grip | XXC
205582544
Unavailable
9
Hex. Screw M10 X 1.5 X 50
207005044
Unavailable
14
HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership
207226044
Unavailable
16
Hex. Flange Screw M5 X 25
207652544
Unavailable
17
Hex. Flange Screw M8 X 30 | DS 650 X
207683044
Unavailable
18
Phillips Screw M6 X 25
208562531
Unavailable
20
Hex. Nut M12
232021416
Unavailable
21
Hexagonal Nut M6
232061404
Unavailable
22
RAIL_SUSPENSION B-160 - Call your local BRP dealership
503193602
Unavailable
23
Elastic Stop Nut M5
232551414
Unavailable
24
Elastic Stop Nut M6
232561414
Unavailable
25
Hex. Flange Elastic Nut M5
233251414
Unavailable
26
Elastic Flange Nut M8
233281466
Unavailable
27
Elastic Locking Nut M10
233601466
Unavailable
30
HEX. SCREW M12 X 252 - Call your local BRP dealership
250000229
Unavailable
31
Hex. Cap Screw M5 X 35
250000483
Unavailable
33
Washer
250200016
Unavailable
34
Flat Washer 8 mm
250200128
Unavailable
35
Washer
250200140
Unavailable
37
Ball Bearing
293350115
Unavailable
40
Grease Fitting
408200700
Unavailable
41
Bushing
414936000
Unavailable
44
Urethane Bushing
503189117
Unavailable
45
Washer | 7415/7416. 7417/7418.
503189148
Unavailable
46
Pivot Arm Axle
503189156
Unavailable
48
Bushing | Includes 240d to 240d1
503189282
Unavailable
49
Spring Stopper
503190271
Unavailable
50
Ball Bearing | Package-STD
503190396
Unavailable
52
Rubber Stopper
503190576
Unavailable
53
Washer
503190656
Unavailable
54
Spring Support Kit
861805547
Unavailable
55
Spring Cam Axe
503191178
Unavailable
56
Spring Support Kit
861805547
Unavailable
57
LH Spring Cam
503191191
Unavailable
57
RH Spring Cam
503191190
Unavailable
60
Washer
503191273
Unavailable
61
Spring Axle
503191344
Unavailable
62
Plastic Bushing
503191345
Unavailable
63
Bushing
503191554
Unavailable
64
Swivel Bushing
503191555
Unavailable
65
Bushing
503191773
Unavailable
66
Washer
503191774
Unavailable
67
Bushing
503191775
Unavailable
68
Upper Shaft
503191776
Unavailable
69
Ball Bearing
503191778
Unavailable
70
Retaining Ring
503191782
Unavailable
71
Lower Axle
503191966
Unavailable
73
RUBBER STOPPER - Call your local BRP dealership
503192099
Unavailable
74
RUNNER AXEL - Call your local BRP dealership
503192115
Unavailable
76
Stopper Strap
503192360
Unavailable
77
Bolt M8 X 248mm
503192440
Unavailable
78
BLACK WHEEL ASS'Y 155 MM - Call your local BRP dealership
503192483
Unavailable
79
Washer
503192491
Unavailable
80
WASHER - Call your local BRP dealership
503192493
Unavailable
81
Washer
503192494
Unavailable
82
Washer
503192496
Unavailable
87
ROD_LINK - Call your local BRP dealership
503192712
Unavailable
91
CUSHION - Call your local BRP dealership
503192726
Unavailable
92
CENTER SHAFT PIVOT - Call your local BRP dealership
503192809
Unavailable
93
Rear Arm
503193126
Unavailable
94
AXLE CAM - Call your local BRP dealership
503193129
Unavailable
95
ADJUSTED REINFORCEMENT - Call your local BRP dealership
503193285
Unavailable
97
Reinforcement
503193690
Unavailable
98
AXLE - Call your local BRP dealership
503193691
Unavailable
106
Leg Cushion
505072663
Unavailable
109
Black, Wheel Ass'y 141 mm | Includes 460 to 460b
503191316
Unavailable
110
Retaining Ring
415129371
Unavailable
111
REINFORCEMENT, BLACK - Call your local BRP dealership
503193907
Unavailable
112
LH SPRING, SQUARE - Call your local BRP dealership
503191617
Unavailable
112
RH SPRING, SQUARE - Call your local BRP dealership
503191616
Unavailable
114
Center Shock | Includes 114a To 114f
503193750
Unavailable
114a
O-Ring
415093807
Unavailable
114b
Piston Ring | Not Shown
415093806
Unavailable
114c
Air Valve
505070398
Unavailable
114d
Screw | Not Shown
505070399
Unavailable
114e
O-Ring
505070400
Unavailable
114f
O-Ring
415093804
Unavailable
115
Black, Spring
503192724
Unavailable
116
BLACK SPRING - Call your local BRP dealership
503193751
Unavailable
117
SPRING SPACER - Call your local BRP dealership
503193131
Unavailable
118
Rear Shock | Includes 118a To 118f
503193752
Unavailable
118a
O-Ring
415093807
Unavailable
118b
Piston Ring | Not Shown
415093806
Unavailable
118c
Air Valve
505070398
Unavailable
118d
Screw | Not Shown
505070399
Unavailable
118e
O-Ring
505070400
Unavailable
118f
O-Ring
415093804
Unavailable
119
Casted Support
503193894
Unavailable
121
Wheel Cup M6
503191820
Unavailable
122
Hex. Flange Elastic Nut M6
233261466
Unavailable
123
Hex. Flange Screw M6 X 25
207662556
Unavailable
