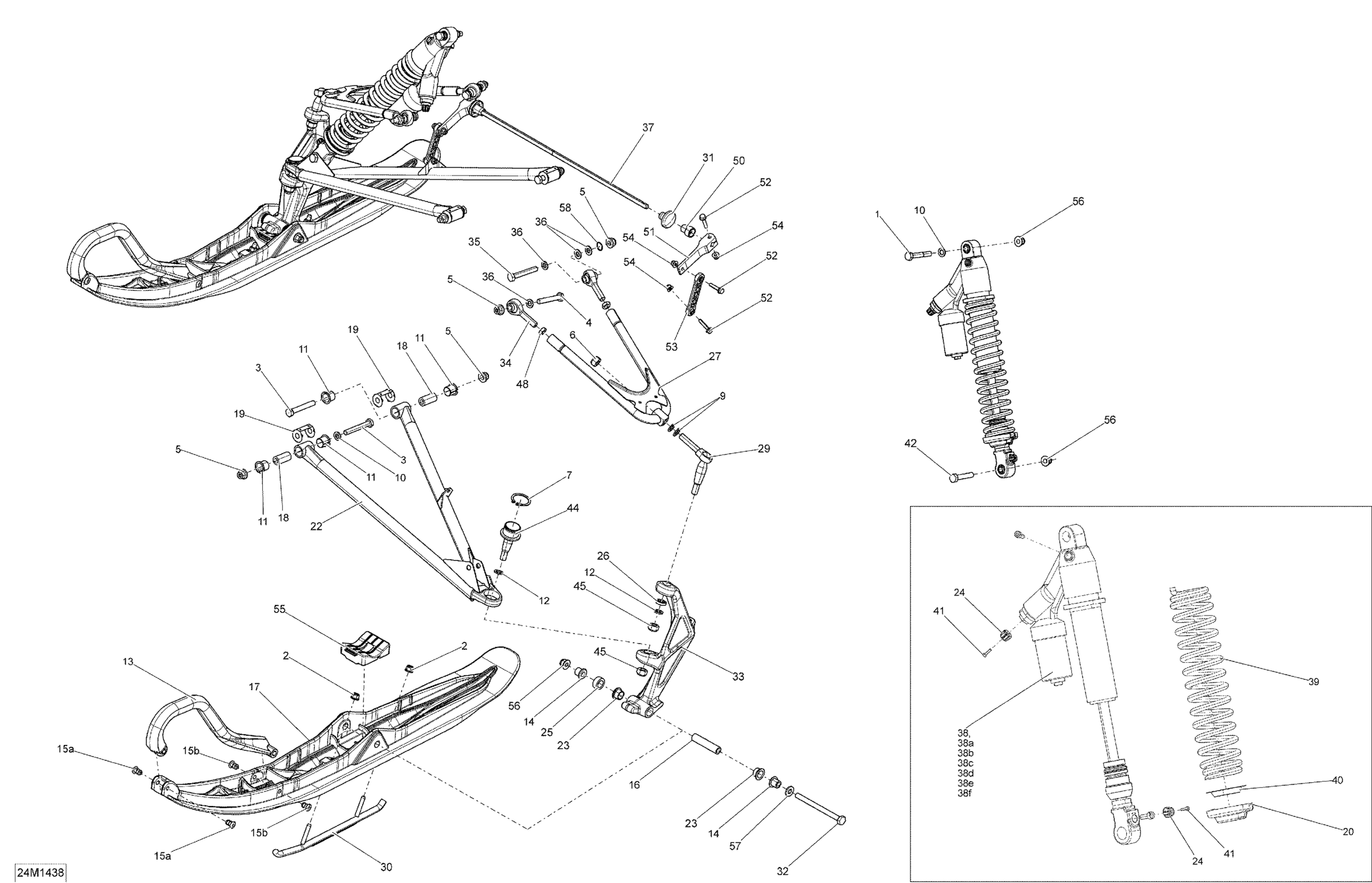

Ski-Doo MXZ X 600RS XS RS, 2014 Front Suspension And Ski _24M1438 Diagram

#

Description
Price

1

Hex. Screw M10 X 1.5 X 65

207006544

$2.29

2

Hex. Flange Elastic Nut M8

233281414

Unavailable

3

Screw Hex. M10 X 70

250001024

Unavailable

4

SCREW HEX. M10 X 65 - Call your local BRP dealership

250000387

Unavailable

5

Hex. Flange Elastic Nut M10

250100165

Unavailable

6

Hex. Elastic Hex. Nut M12

250100089

$0.39

7

Circlip

293370035

$2.55

9

Washer

503189276

Unavailable

10

Washer

503189564

Unavailable

11

Cushion

503191766

$5.71

12

Washer

503192491

Unavailable

13

Black Handle

505073138

$34.58

14

Ski Bushing

505071781

Unavailable

15a

Retainer 17mm long

505071812

$4.43

15b

Retainer 23mm Long

505072133

$5.03

16

Spacer

506133300

Unavailable

17

Black Pilot Ski 5.7X

505072205

Unavailable

18

Aluminum Bushing

505072401

$16.12

19

Wear Plate

505072634

Unavailable

20

Spring Stopper

505072635

$33.82

22

RH LOWER ARM - Call your local BRP dealership

505072654

Unavailable

22

LH LOWER ARM - Call your local BRP dealership

505072655

Unavailable

23

Leg Bushing

505072690

Unavailable

24

Adjustment Knob

505072753

Unavailable

25

Spacer

505072807

Unavailable

26

SPACER - Call your local BRP dealership

505073506

Unavailable

27

LH UPPER ARM - Call your local BRP dealership

505073527

Unavailable

27

RH UPPER ARM - Call your local BRP dealership

505073528

Unavailable

29

Upper Ball Joint This part replaces 505073491.

505073561

Unavailable

30

Round Carbide Runner

860201043

$144.58

31

Cap

572091300

$8.97

32

Hex. Screw M10 X 130 | Model-RT STD

250000703

Unavailable

33

BLACK LH LEG SKI - Call your local BRP dealership

505073362

Unavailable

33

BLACK RH LEG SKI - Call your local BRP dealership

505073363

Unavailable

34

BALL JOINT - Call your local BRP dealership

505073532

Unavailable

35

SCREW HEX. M10 X 65 - Call your local BRP dealership

250000387

Unavailable

36

Flat Washer 10 mm

234001410

Unavailable

37

Stabilisator

505072602

$71.99

38

RH Front Shock Ass'y | Includes 38a to 38f

505073270

Unavailable

38

LH Front Shock Ass'y | Includes 38a to 38f

505073271

Unavailable

38a

O-Ring

415093807

Unavailable

38b

Piston Ring | Not Shown

415093806

Unavailable

38c

Air Valve

505070398

Unavailable

38d

Screw | Not Shown

505070399

Unavailable

38e

O-Ring

505070400

Unavailable

38f

O-Ring

415093804

Unavailable

39

Deep Black, Spring

505073537

$66.89

40

Cap

706200793

$4.42

41

Allen Screw M3 X 0.5 X 10

250000644

$1.74

42

Hex Screw M10 X 1.5 X 55

207005554

$6.18

44

Ball Joint

505073636

$49.97

45

Hex Elastic Nut M12 X 1.25

232521464

Unavailable

48

Nut Hexagonal RH.

232026414

Unavailable

50

Bushing

505072064

Unavailable

51

Stabilisator Lever

505072394

$16.12

52

Hex. Flange Screw M6 X 1.0 X 30

207663056

Unavailable

53

Sway Bar Double Joint Link

505072204

Unavailable

54

Hex. Flange Elastic Nut M6

233261466

Unavailable

55

Ski Stopper

505072594

Unavailable

56

Hex. Flange Elastic M10 x 1.5

233201464

Unavailable

57

Washer

503192496

Unavailable

58

O-Ring

505072448

Unavailable
