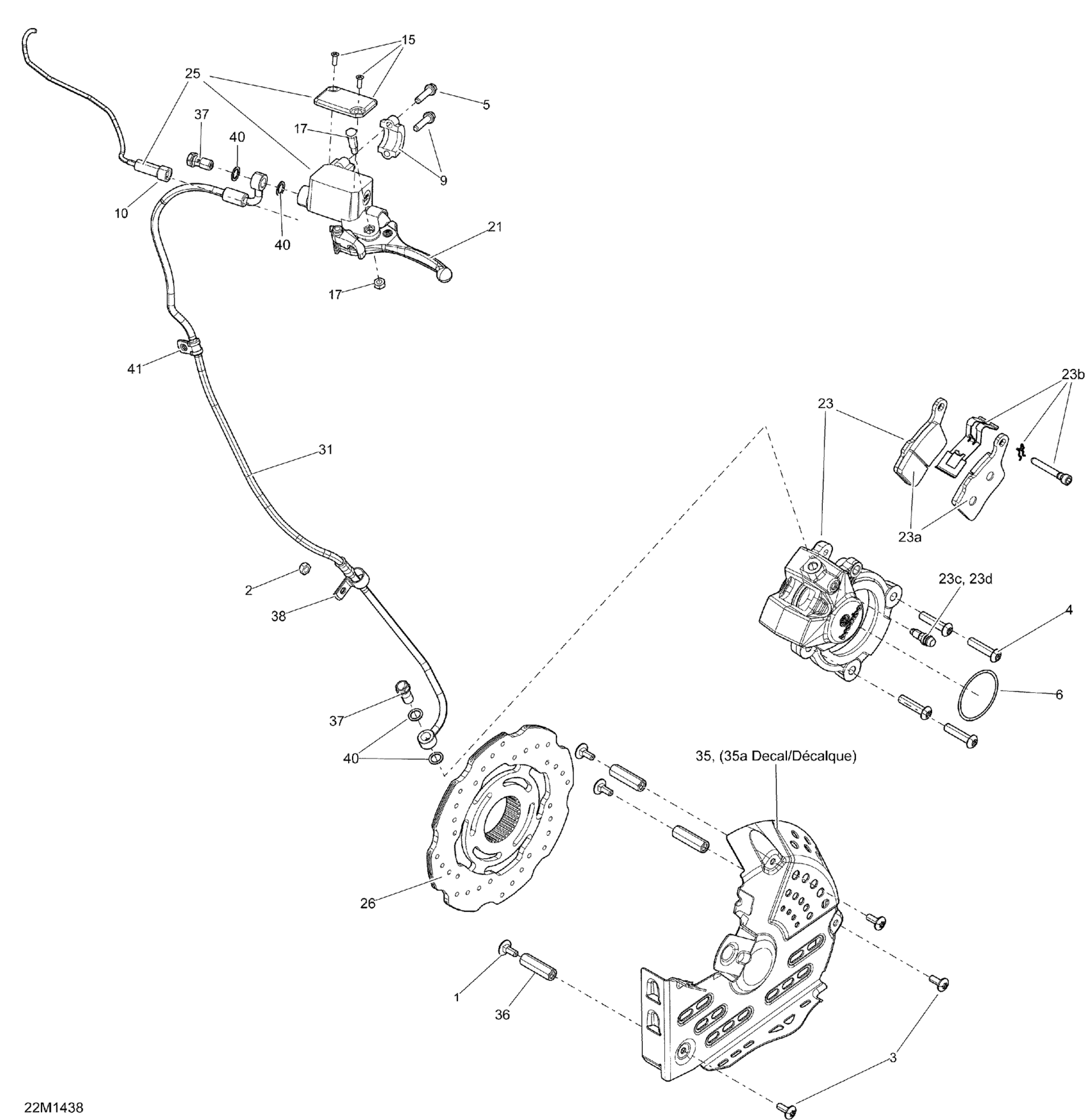

Ski-Doo MXZ X 600RS XS RS, 2014 Hydraulic Brakes _22M1438 Diagram

#

Description
Price

1

Carriage Bolt M6 X 1.0 X 16

207761644

$1.74

2

Elastic Stop Nut M6

232561414

Unavailable

3

Torx Screw M6 X 16

250000223

$1.74

4

Hex. Button Head Screw M8 X 1.25 X 35

250000764

Unavailable

5

Hex. Flange Screw M6 X 25

250000447

$2.06

6

O-Ring

293300134

Unavailable

9

Clamp And Screw Kit

507032477

$23.05

9

Clamps | Includes 75a to 75b

719000049

$23.05

10

Microswitch

507032526

Unavailable

15

Cap

415029900

Unavailable

17

Pin Ass'y

415030000

Unavailable

21

LEVER - Call your local BRP dealership

507032428

Unavailable

23

Brake Caliper Ass'y | Includes 17 to 17c This part replaces 507032603.

507032501

Unavailable

23a

Brake Pads Kit

507032489

Unavailable

23b

Brake Spring Kit

507032722

Unavailable

23c

Bleeder

507032475

Unavailable

23d

BOOT-QTS 20 - Call your local BRP dealership

414989700

Unavailable

25

CYLINDER MASTER ASS'Y - Call your local BRP dealership | Includes 6 to 6d

507032511

Unavailable

26

Disk

507032513

$235.35

31

Hose

507032528

$46.12

35

DISK PROTECTOR, ALUMINUM - Call your local BRP dealership

507032531

Unavailable

35a

Warning Decal

516005525

Unavailable

36

THREADED TUBE - Call your local BRP dealership

507032533

Unavailable

37

Banjo Bolt

507032551

$5.52

38

Open Clamp

518321570

Unavailable

40

Copper Washer

705601628

$4.34

41

Clamp

293650256

Unavailable
