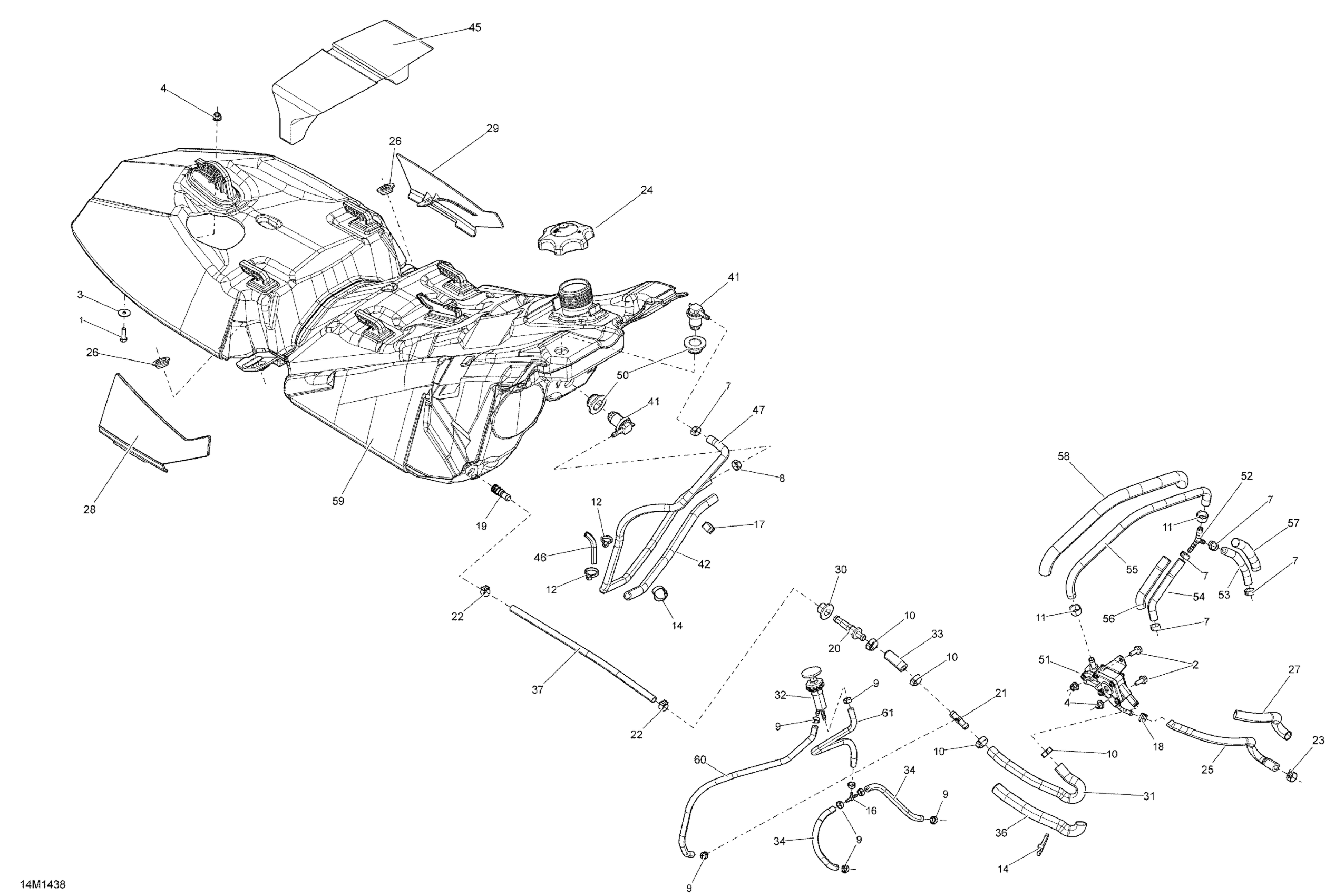

Ski-Doo MXZ X 600RS XS RS, 2014 Fuel System _14M1438 Diagram
#
1
Hex. Flange Screw M6 X 20
207662044
Unavailable
2
Hex. Flange Screw M6 X 16
207661644
Unavailable
3
Flat Washer
224060201
Unavailable
4
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
10
Crimp Clamp
293650053
Unavailable
12
Tie Wrap 142 mm
293750002
Unavailable
16
T-Fitting
414222400
Unavailable
20
Male Connector
414872700
Unavailable
21
T-Fitting
415119300
Unavailable
22
Norma Spring Clamp
513033010
Unavailable
23
Universal Spring Clamp
513033029
Unavailable
25
FORMED HOSE - Call your local BRP dealership
513033111
Unavailable
27
Was 409901800 Tubing (13 mm)
219704400
Unavailable
28
RH Cap
513033418
Unavailable
29
LH Cap
513033419
Unavailable
30
Grommet
513033435
Unavailable
31
FORMED HOSE - Call your local BRP dealership
513033439
Unavailable
32
Primer
513033441
Unavailable
33
HOSE 9.53MM ID - 40MM - Call your local BRP dealership
513033444
Unavailable
34
HOSE - Call your local BRP dealership
709000665
Unavailable
36
Tubing 16 Mm 1000Mm Long
219704408
Unavailable
37
Polyurethane Hose 1000Mm Long
219704391
Unavailable
42
Was 409901800 Tubing (13 mm)
219704400
Unavailable
45
FOAM - Call your local BRP dealership
513033528
Unavailable
46
TRIM 30000MM LONG - Call your local BRP dealership
219704405
Unavailable
47
Hose
513033565
Unavailable
51
Fuel Pump
513033669
Unavailable
52
Y Connector | CARB
513033672
Unavailable
53
Hose
513033565
Unavailable
54
Hose
513033565
Unavailable
55
Hose 3000Mm Long
219704612
Unavailable
56
Was 409901800 Tubing (13 mm)
219704400
Unavailable
57
Was 409901800 Tubing (13 mm)
219704400
Unavailable
58
Tubing 16 Mm 1000Mm Long
219704408
Unavailable
59
FUEL TANK - Call your local BRP dealership
513033697
Unavailable
60
HOSE - Call your local BRP dealership
709000665
Unavailable
61
HOSE - Call your local BRP dealership
709000665
Unavailable
