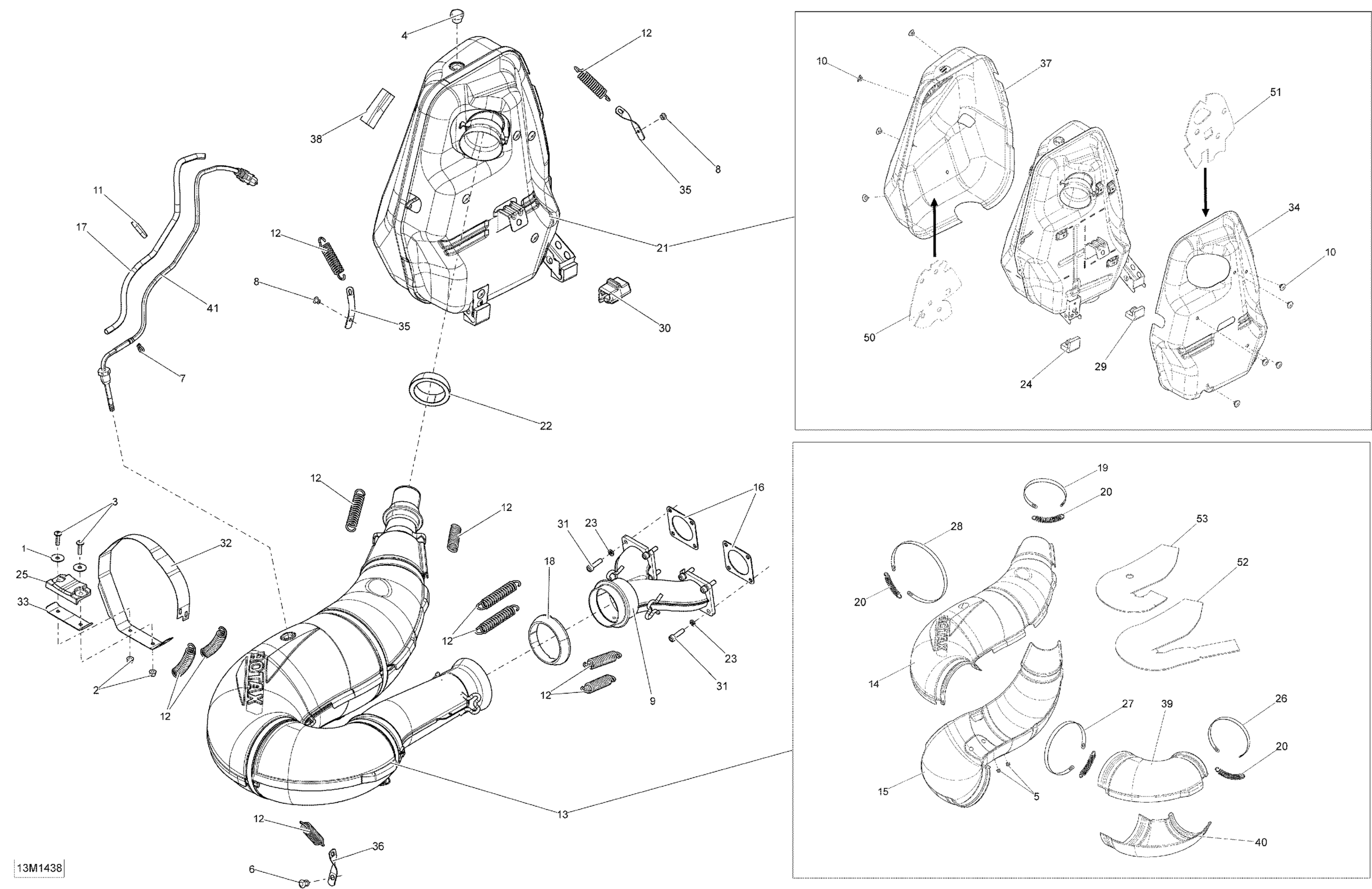

Ski-Doo MXZ X 600RS XS RS, 2014 Exhaust System _13M1438 Diagram

#

Description
Price

1

Flat Washer

224060201

$1.15

2

Hex. Flange Elastic Nut M5

233251414

$1.66

3

Torx Screw M5 X 20

250000724

$1.39

4

Hexagonal Head Pipe Plug M14

250100074

$12.49

5

Henrob Rivet

293150091

$0.75

6

Ornit Rivet 6,5 X 14.5

293150266

$1.94

7

Tie Wrap 94 mm | 4X4

293750001

$0.83

8

Pop Rivet 3/16"

390402200

$0.26

9

EXHAUST MANIFOLD - Call your local BRP dealership

420673422

Unavailable

10

Pop Rivet 3/16”

390910000

$0.48

11

Tie-Rap 180 mm

414115200

$0.09

12

Spring

415107100

$6.20

13

PIPE_TUNED ASSY - Call your local BRP dealership

514055068

Unavailable

14

REAR UPPER HALF ENVELOPPE - Call your local BRP dealership

514055067

Unavailable

15

Rear Lower Half Enveloppe | Includes 200d to 200e

514054990

$53.05

16

Gasket

420850552

$7.92

17

Tubing 6 Mm 3000Mm Long

219704425

$13.14

18

Exhaust Gasket

514053487

$26.12

19

Retaining Strap

514053499

$8.35

20

Spring

514053643

$6.20

21

Muffler Ass'y | Includes 400 to 400g

514055083

$738.43

22

Exhaust Gasket

514053812

$25.35

23

Washer

514053953

$0.75

24

Lower Stopper

514054274

$19.20

25

Bumper

514054275

$14.65

26

Retaining Strap

514054408

$10.55

27

Retaining Strap

514054409

$10.55

28

Retaining Strap

514054410

$10.55

29

Lower Stopper

514054496

$26.12

30

Upper Stopper

514054606

$14.92

31

Socket Head Screw Scotch Grip M6 X 20

250001077

$2.60

32

RETAINING STRAP - Call your local BRP dealership

514054637

Unavailable

33

Reinforcement Plate

514054638

$23.82

34

LH Deflector

514054967

$54.58

35

Spring Bracket, 5mm hole

514054974

$6.28

36

Spring Bracket, 8.0mm hole

514054975

$6.28

37

RH DEFLECTOR - Call your local BRP dealership

514054986

$49.20

38

Heat Shield (Rectangle)

514054987

Unavailable

39

Front Upper Half Enveloppe

514054992

$38.43

40

Front Lower Half Enveloppe

514054993

$38.43

41

Temperature Sensor

514054870

$141.51

50

RH Insulating Wool

514054711

$18.43

51

LH Insulating Wool

514054299

$19.20

52

Insulating Wool

514054487

$19.20

53

INSULATING WOOL - Call your local BRP dealership

514054553

Unavailable
