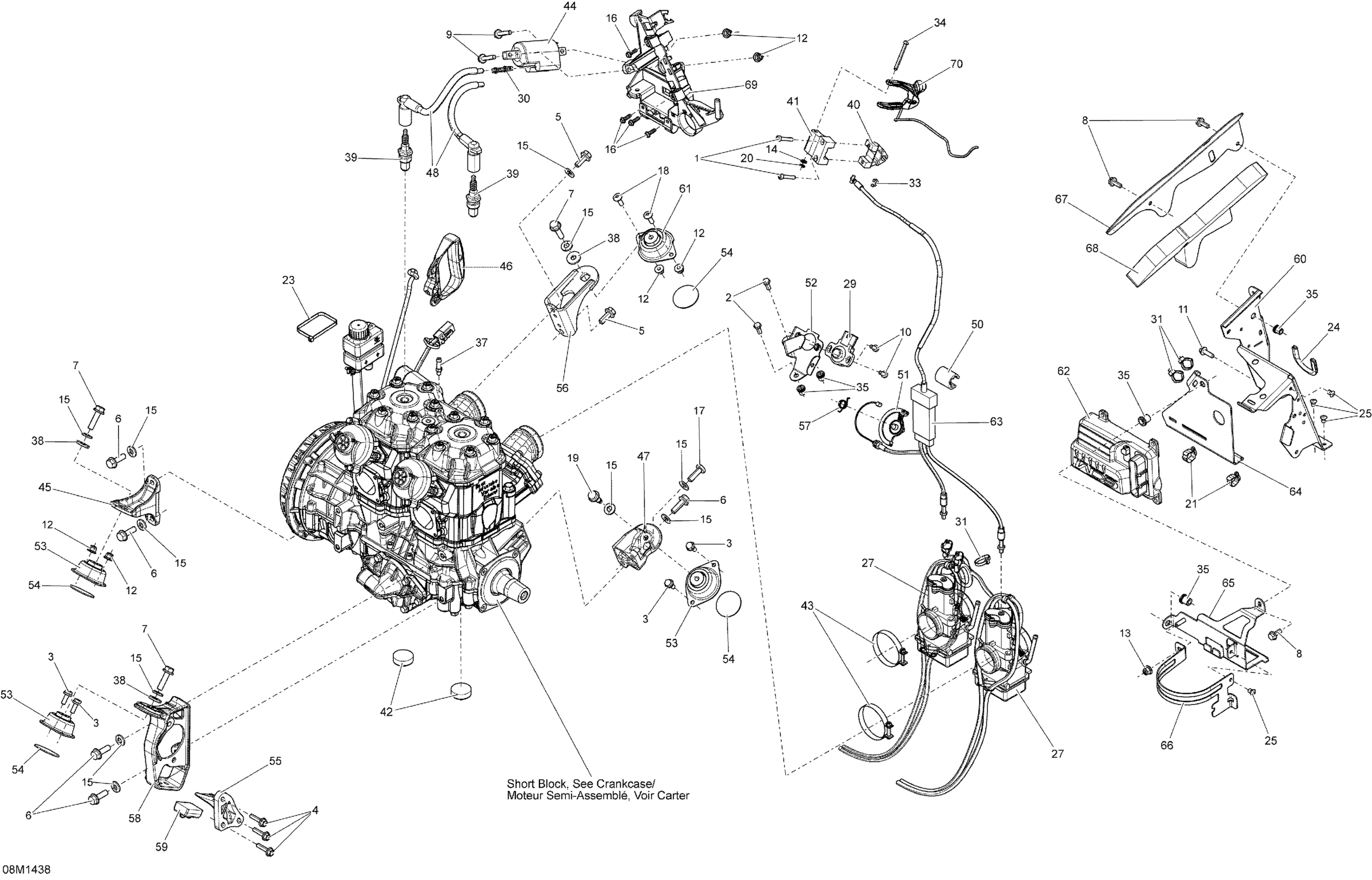

Ski-Doo MXZ X 600RS XS RS, 2014 Engine And Engine Support _08M1438 Diagram

#

Description
Price

1

Socket Screw M5 X 25

205052544

$1.34

2

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

Unavailable

3

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

Unavailable

4

Hex. Flange Screw M6 X 25

207562544

$1.39

5

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

6

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

7

Hex. Flange Screw M8 X 30, Scotch Grip

207583086

$3.59

8

Hex. Flange Screw M6 X 16

207661644

Unavailable

9

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

10

PHILLIPS SCREW M5 X 12 - Call your local BRP dealership

208651241

$0.98

11

Hexagonal Head Screw

210262050

$1.74

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

13

Elastic Flange Nut M6 X 1.0

233261416

Unavailable

14

Flat Washer M5, Stainless

234051600

$0.64

15

Conical Spring Washer M8

250200146

Unavailable

16

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

17

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.70

18

Hex. Socket Screw M6 X 20

250000770

Unavailable

19

Hex. Flange Screw M8 X 1.25 X 25

250000796

$1.74

20

Circlip

293370050

$0.46

21

Tridon Gear Clamp

293650172

$2.68

23

Tie Wrap 368 mm

293750008

$0.85

24

TRIM 30000MM LONG - Call your local BRP dealership

219704405

Unavailable

25

Avex Rivet

390909200

Unavailable

27

Carburator, TMX39-1Z1

403138818

Unavailable

29

Sensor Ass'y

404162079

$359.97

30

Plastic Clip, Spark Plug Wire

410914600

Unavailable

31

Tie-Rap 180 mm

414115200

$0.09

33

Circlip

414274500

Unavailable

34

Lever Pin

414438700

$11.14

35

Insert

293450275

Unavailable

37

Hose Nipple

420924724

Unavailable

38

Yellow, Washer

503183200

Unavailable

39

Spark Plug NGK BR9ECS-5

512059552

$9.70

40

Lower Housing

512059537

$73.05

41

UPPER HOUSING - Call your local BRP dealership

512059538

Unavailable

42

Stopper

512059738

Unavailable

43

Gemi Clamp

512059835

Unavailable

44

Ignition Coil

512059968

Unavailable

45

FRONT SUPPORT, MAG - Call your local BRP dealership

512060108

$45.35

46

Starter Grip

512060136

$14.54

47

Rear Support, PTO

512060478

$29.97

48

Cable

512060291

Unavailable

50

Protector

512060313

$9.31

51

CAP CAM - Call your local BRP dealership

512060335

Unavailable

52

TPS SUPPORT - Call your local BRP dealership

512060336

$24.58

53

Rubber Mount

512060385

$56.89

54

RUBBER WASHER - Call your local BRP dealership

512060410

$8.29

55

Stopper Support

512060576

$28.43

56

REAR ENGINE SUPPORT, MAG - Call your local BRP dealership

512060568

$64.58

57

CAM SPRING - Call your local BRP dealership

512060638

$15.29

58

FRONT SUPPORT PTO - Call your local BRP dealership This part replaces 512060699.

512060712

$76.12

59

Stopper

512060766

$9.31

60

GRIP SUPPORT - Call your local BRP dealership

512060770

$74.58

61

Rubber Mount

512060772

Unavailable

62

Calibrated Module 600RS

512060962

Unavailable

63

Throttle Cable

512060895

$109.97

64

ECM SUPPORT - Call your local BRP dealership

512060904

Unavailable

65

SUPPORT - Call your local BRP dealership

512060905

$54.58

66

STRAP - Call your local BRP dealership

512060916

Unavailable

67

NOISE SHIELD - Call your local BRP dealership

512060917

$25.35

68

NOISE FOAM - Call your local BRP dealership

512060918

$16.89

69

COILS SUPPORT - Call your local BRP dealership

512060925

$16.89

70

Handle Ass'y

512060960

$91.51
