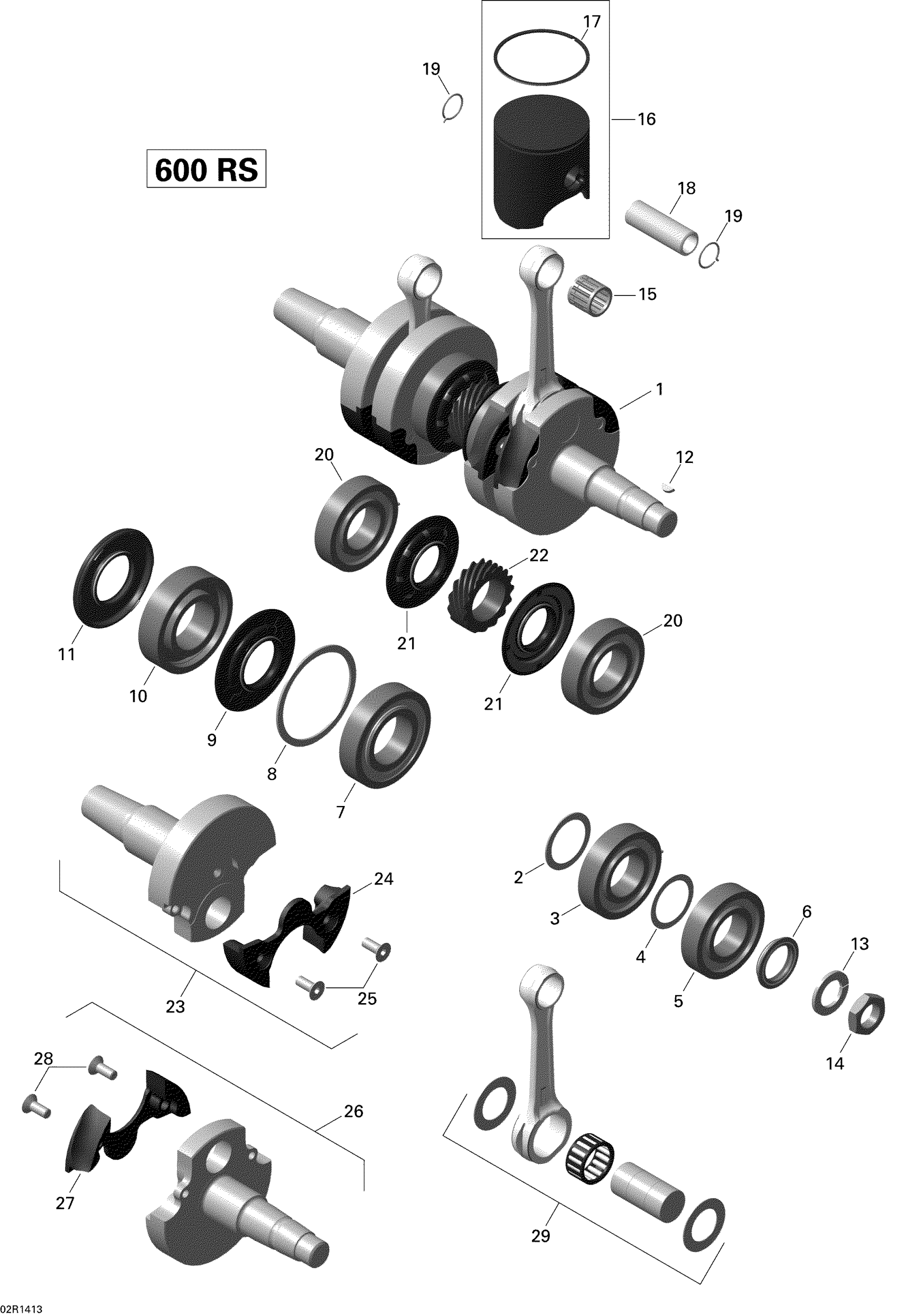

Ski-Doo MXZ X 600RS XS RS, 2014 Crankshaft And Pistons Diagram
#
Description
Price
1
CRANKSHAFT ASS'Y - Call your local BRP dealership | Includes 1 to 12
420891638
Unavailable
3
Ball Bearing 6207 | With drive pin
420832575
Unavailable
4
ADJUSTMENT WASHER - Call your local BRP dealership
420427502
Unavailable
5
Ball Bearing 6207 | With drive pin
420832575
Unavailable
8
Washer
420926190
Unavailable
10
Ball Bearing This part replaces 420832603.
420832671
Unavailable
11
Oil Seal | Included in gasket kit
420931284
Unavailable
12
Woodruff Key
420246015
Unavailable
13
Lock Washer, 22 mm
420945759
Unavailable
14
Hex. Nut, M22 X 1.5
420842239
Unavailable
15
Needle Bearing
420832445
Unavailable
16
Piston Ass'y, 71.87 mm
420893303
Unavailable
19
Piston Circlip
420845106
Unavailable
20
Ball Bearing 6207 | With drive pin
420832575
Unavailable
21
Oil Seal
420931455
Unavailable
22
CENTRAL GEAR - Call your local BRP dealership
420834355
Unavailable
23
Not Available As Spare Part - Friction Washer
Unavailable
24
Not Available As Spare Part - Friction Washer
Unavailable
25
Screw M8 X 20
420641406
Unavailable
26
Not Available As Spare Part - Friction Washer
Unavailable
27
Not Available As Spare Part - Friction Washer
Unavailable
28
Not Available As Spare Part - Friction Washer
Unavailable
29
Rod Repair Kit, PTO Side
420890958
Unavailable
29
Rod Repair Kit, MAG Side
420890959
Unavailable
