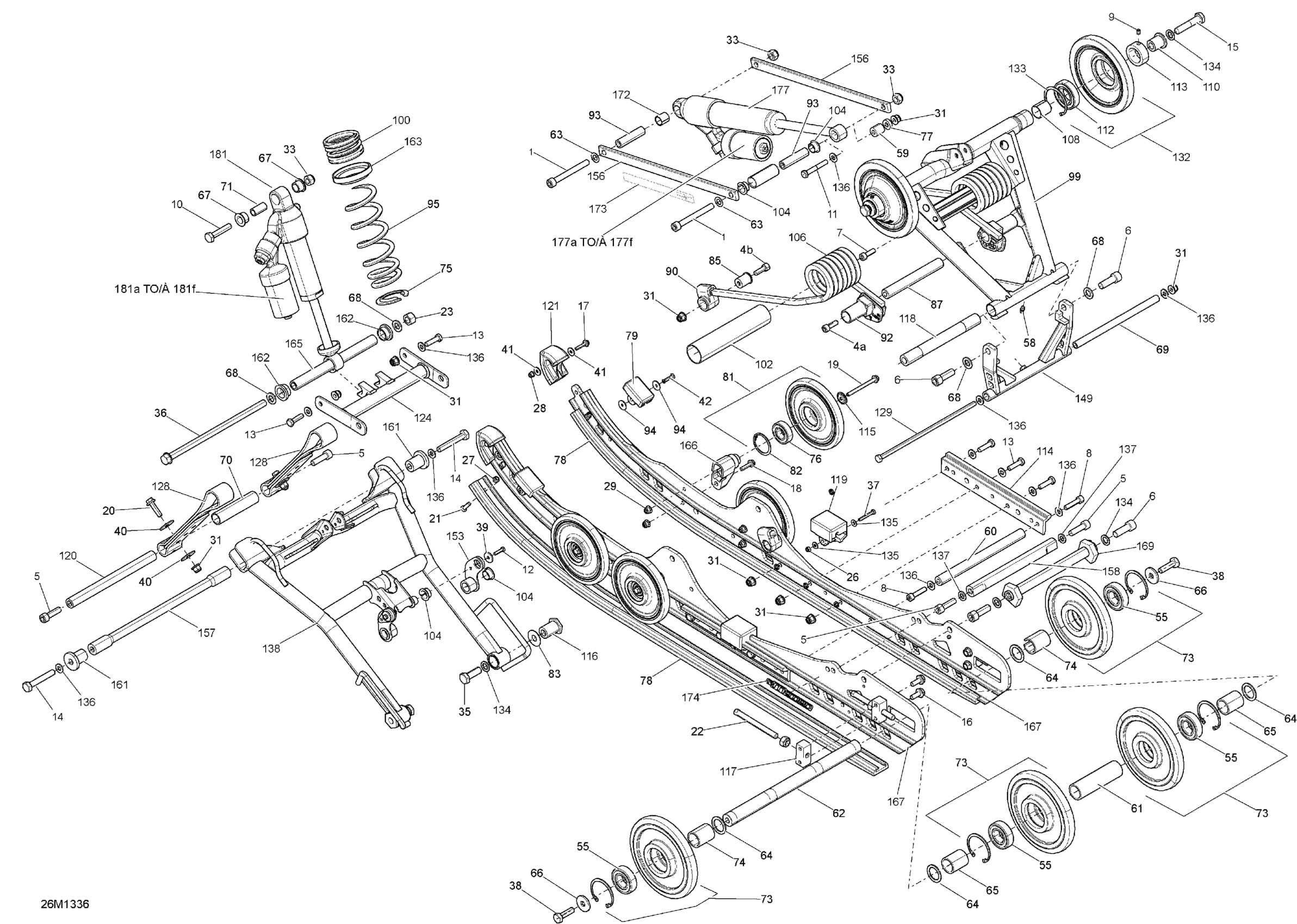

Ski-Doo MXZ X 600RS XP, 2013 Rear Suspension Diagram

Socket Screw M10 X 90

205009044

$7.23

Socket Head Screw M10 X 35

205503554

$6.18

Socket Head Screw Scotch Grip Din.912

205523587

$2.06

Socket Head Screw M8 X 25, Scotch Grip | XXC

205582544

$1.56

Socket Head Screw M8 X 35, Scotch Grip

205583544

$2.55

Socket Set Screw M6 X 8

206260844

$1.25

Hex. Screw M10 X 1.5 X 50

207005044

$3.11

Hex. Screw M8 X 55

207085586

$6.11

Hex. Screw M5 X 20

207152044

$0.88

Hex. Cap Screw M8 X 30

207183054

$3.61

Hex. Screw M10 X 65, Scotch Grip

207206534

$7.31

HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership

207226044

Unavailable

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

Hex. Flange Screw M5 X 25

207652544

$0.42

Hex. Flange Screw M6 X 25

207662556

$3.61

Hex. Flange Screw M6 X 70

207667056

$3.61

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.30

Phillips Screw M6 X 25

208562531

$1.74

Hex Screw M10 x 100

230100054

$5.29

Hex. Nut M12

232021416

$4.51

Elastic Stop Nut M5

232551414

$0.72

Elastic Stop Nut M6

232561414

$1.55

Hex. Flange Elastic Nut M5

233251414

$1.66

Hex. Flange Elastic Nut M6

233261466

$1.66

Elastic Flange Nut M8

233281466

$0.83

Elastic Locking Nut M10

233601466

$1.74

Hex. Cap Screw M12 X 35

250000537

$2.63

HEX. SCREW M12 X 252 - Call your local BRP dealership

250000229

Unavailable

Hex. Cap Screw M5 X 35

250000483

$5.22

Hex Cap Screw Nylon M10 x 35 | Not shown

250000592

$3.61

Washer

250200016

$0.72

Flat Washer 8 mm

250200128

$1.74

Washer

250200140

$0.83

Pop Rivet 3/16"

293150142

$2.11

Ball Bearing

293350115

$11.15

Pop Rivet 3/16"

390402300

$0.75

Grease Fitting

408200700

$2.80

Bushing

414936000

$11.55

Axle

503151600

$15.35

Center Spacer

503156000

$8.92

Rear Axle

503167900

$129.20

Washer

503175800

$3.26

Washer

503180400

$3.37

Inner Spacer

503182900

$10.18

Washer

503183300

$5.68

Urethane Bushing

503189117

$6.88

Washer | 7415/7416. 7417/7418.

503189148

$2.72

Pivot Arm Axle

503189156

$20.74

Spacer

503189265

$4.75

Bushing | Includes 240d to 240d1

503189282

$4.18

Wheel 165" | Includes 670 to 670b

503194127

$49.97

Outer Spacer

503189809

$15.35

Spring Stopper

503190271

$20.74

Ball Bearing | Package-STD

503190396

$7.12

Spacer

503190526

$8.72

Slider Shoe

503190573

$27.66

Rubber Stopper

503190576

$10.23

Black, Wheel Ass'y 141 mm | Includes 460 to 460b

503191316

$36.12

Retaining Ring

415129371

$8.92

Washer

503190656

$2.91

Spring Support Kit

861805547

$8.14

Spring Cam Axe

503191178

$27.66

Spring Support Kit

861805547

$8.14

LH Spring Cam

503191191

$13.88

RH Spring Cam

503191190

$13.78

Bar Axle

503191192

$40.74

Washer

503191273

$1.06

Black, Spring

503192724

$88.43

Rear Arm

503193126

$332.28

BLACK SPRING - Call your local BRP dealership

503193112

Unavailable

Plastic Bushing

503191345

$6.89

Swivel Bushing

503191555

$5.71

LH Spring, Square

503191615

$59.97

RH Spring, Square

503191614

$59.97

Bushing

503191773

$13.60

Bushing

503191775

$15.26

Ball Bearing

503191778

$11.46

Retaining Ring

503191782

$13.95

REINFORCEMENT RUNNER - Call your local BRP dealership

503192497

Unavailable

Wheel Cup M6

503191820

$4.66

Lower Axle

503191966

$15.35

TENSIONER - Call your local BRP dealership

503191984

Unavailable

Lower Shaft

503192095

$46.12

RUBBER STOPPER - Call your local BRP dealership

503192099

Unavailable

RUNNER AXEL - Call your local BRP dealership

503192115

Unavailable

Runner Protector

503192299

$23.82

ADJUSTED REINFORCEMENT - Call your local BRP dealership

503193285

Unavailable

Stopper Strap

503192360

$19.97

Bolt M8 X 248mm

503192440

$29.97

BLACK WHEEL ASS'Y 155 MM - Call your local BRP dealership

503192483

Unavailable

Retaining Ring

415129598

$8.92

Washer

503192491

$4.38

WASHER - Call your local BRP dealership

503192493

Unavailable

Washer

503192494

$3.11

Washer

503192496

$0.75

Front Arm Ass'y

503192673

Unavailable

Pivot Arm

503192701

$274.58

LH ROCKER ARM - Call your local BRP dealership

503192706

Unavailable

RH ROCKER ARM - Call your local BRP dealership

503192707

Unavailable

ROD_LINK - Call your local BRP dealership

503192712

Unavailable

Slide Bushing

503192713

$93.82

Limit Axle

503192715

$78.43

Bushing

503192721

$34.58

CUSHION - Call your local BRP dealership

503192726

Unavailable

SPRING SPACER - Call your local BRP dealership

503193131

Unavailable

CENTER SHAFT PIVOT - Call your local BRP dealership

503192809

Unavailable

Casted Support

503193894

$12.75

Runner, Bronze

503193431

Unavailable

AXLE CAM - Call your local BRP dealership

503193129

Unavailable

Leg Cushion

505072663

$7.40

Shock Position Decal

516005609

$16.89

Runner Decal

516004755

$9.11

Rear Shocks

503193109

Unavailable

CENTER SHOCK - Call your local BRP dealership

503193457

Unavailable

O-Ring

415093807

$34.58

Piston Ring | Not Shown

415093806

$14.97

Air Valve

505070398

$17.66

Screw | Not Shown

505070399

$4.00

O-Ring

505070400

$4.38

O-Ring

415093804

$4.38

O-Ring

415093807

$34.58

Piston Ring | Not Shown

415093806

$14.97

Air Valve

505070398

$17.66

Screw | Not Shown

505070399

$4.00

O-Ring

505070400

$4.38

O-Ring

415093804

$4.38

Socket Screw M8 X 25

205082554

$1.74

Socket Head Screw M8 X 25, Scotch Grip | XXC

205582544

$1.56
