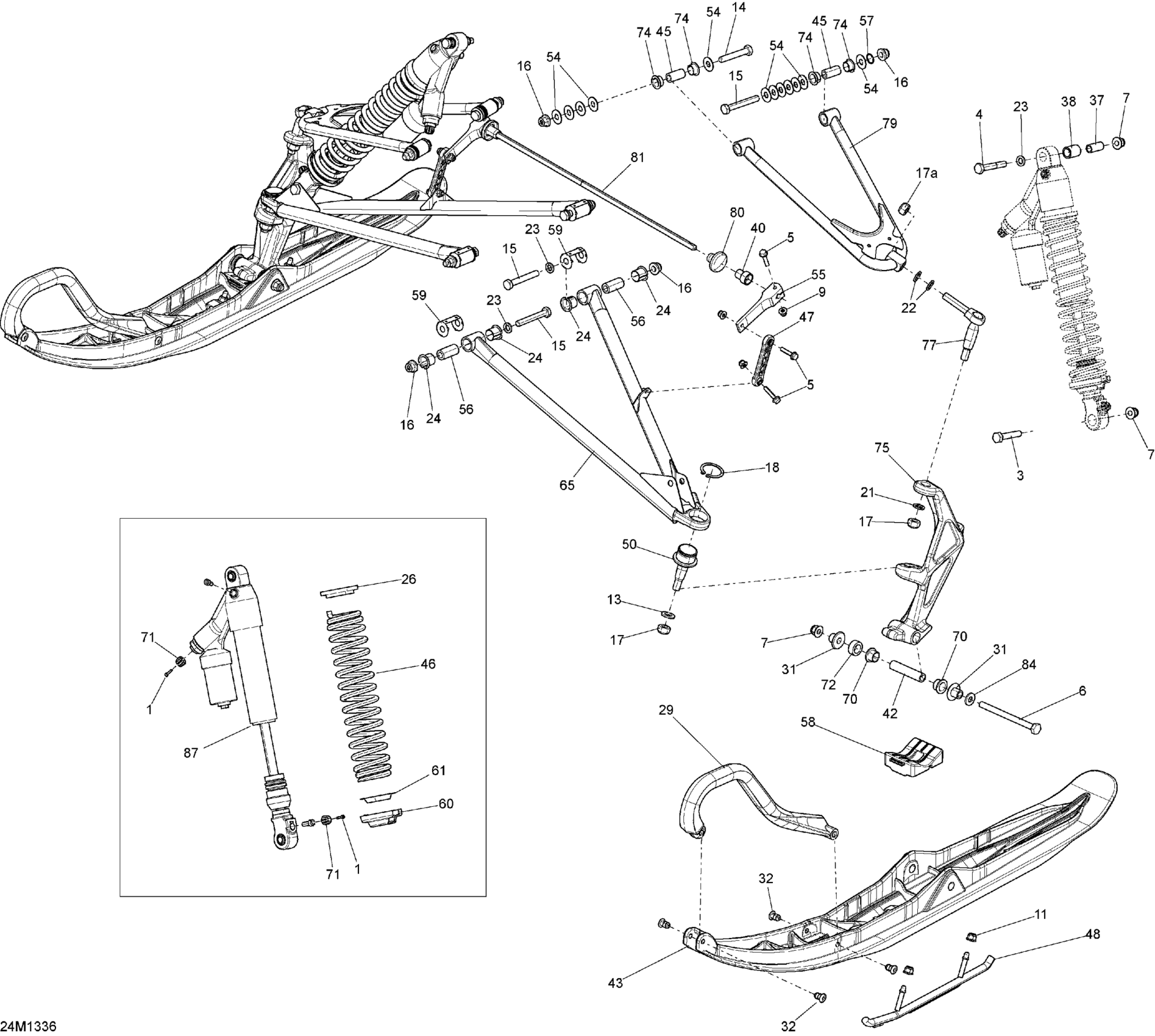

Ski-Doo MXZ X 600RS XP, 2013 Front Suspension And Ski Diagram

#

Description
Price

1

Allen Screw M3 X 0.5 X 10

250000644

$1.74

3

Hex Screw M10 X 1.5 X 55

207005554

$6.18

4

Hex. Screw M10 X 1.5 X 65

207006544

$2.29

5

Hex. Flange Screw M6 X 1.0 X 30

207663056

Unavailable

6

Hex. Screw M10 X 130 | Model-RT STD

250000703

Unavailable

7

Hex. Flange Elastic M10 x 1.5

233201464

Unavailable

9

Hex. Flange Elastic Nut M6

233261466

Unavailable

11

Hex. Flange Elastic Nut M8

233281414

Unavailable

13

Washer

503192491

Unavailable

14

Screw Hex. M10 X 60

250001023

Unavailable

15

Screw Hex. M10 X 70

250001024

Unavailable

16

Hex. Flange Elastic Nut M10

250100165

Unavailable

17

Hex Elastic Nut M12 X 1.25

232521464

Unavailable

17a

Hex. Elastic Hex. Nut M12

250100089

$0.39

18

Circlip

293370035

$2.55

21

Washer

503189276

Unavailable

22

Washer

503189276

Unavailable

23

Washer

503189564

Unavailable

24

Cushion

503191766

$5.71

29

Black Handle

505073138

$34.58

31

Ski Bushing

505071781

Unavailable

32

Retainer 17mm long

505071812

$4.43

32b

Retainer 23mm Long

505072133

$5.03

40

Bushing

505072064

Unavailable

42

Spacer

506133300

Unavailable

43

Black Pilot Ski 5.7X

505072205

Unavailable

45

Sleeve

505072143

Unavailable

46

BRONZE SPRING - Call your local BRP dealership

505073272

Unavailable

46

BRONZE SPRING - Call your local BRP dealership

505073272

Unavailable

47

Sway Bar Double Joint Link

505072204

Unavailable

48

Round Carbide Runner

860201043

$144.58

50

Ball Joint

505073636

$49.97

54

Washer

505072392

Unavailable

55

Stabilisator Lever

505072394

$16.12

56

Aluminum Bushing

505072401

$16.12

57

O-Ring

505072448

Unavailable

58

Ski Stopper

505072594

Unavailable

59

Wear Plate

505072634

Unavailable

60

Spring Stopper

505072635

$33.82

60

Spring Stopper

505072635

$33.82

61

Cap

706200793

$4.42

61

Cap

706200793

$4.42

65

RH LOWER ARM - Call your local BRP dealership

505072654

Unavailable

65

LH LOWER ARM - Call your local BRP dealership

505072655

Unavailable

70

Leg Bushing

505072690

Unavailable

71

Adjustment Knob

505072753

Unavailable

71

Adjustment Knob

505072753

Unavailable

72

Spacer

505072807

Unavailable

74

Bushing

505073018

$7.40

75

BRONZE LH SKI LEG - Call your local BRP dealership

505073273

Unavailable

75

BRONZERH SKI LEG - Call your local BRP dealership

505073274

Unavailable

77

Upper Ball Joint

505073316

Unavailable

79

LH Upper Arm

505073322

Unavailable

79

RH UPPER ARM - Call your local BRP dealership

505073323

Unavailable

80

Cap

572091300

$8.97

81

Stabilisator

505072602

$71.99

84

Washer

503192496

Unavailable

87

RH Ffront Shock | Includes 87 to 87h

505073145

Unavailable

87

LH Ffront Shock | Includes 87 to 87h

505073146

Unavailable

87b

Not Available As Spare Part - Friction Washer

Unavailable

87c

O-Ring

415093807

Unavailable

87d

Piston Ring | Not Shown

415093806

Unavailable

87e

Air Valve

505070398

Unavailable

87f

Screw | Not Shown

505070399

Unavailable

87g

O-Ring

505070400

Unavailable

87h

O-Ring

415093804

Unavailable
